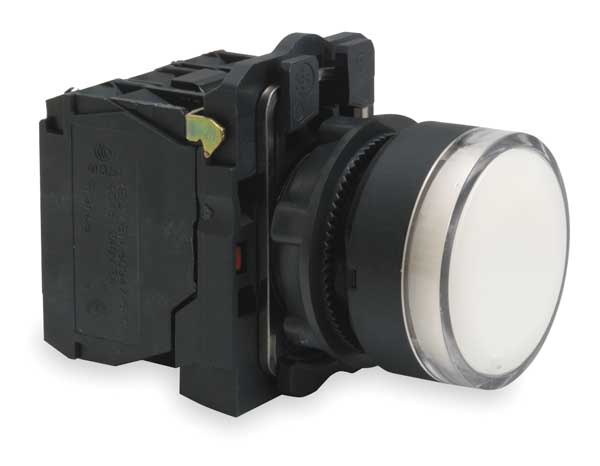

Illuminated Push Button, 22 mm, 1NO/1NC, White

SKU
Brand Schneider Electric
Categories
Description Illuminated Push Button, 22 mm, Maintained / Momentary, Type of Operator Flush Button, Basic Material Plastic, Plastic Head Material, 1NO/1NC Contact Form, Double-Insulated Plastic Bezel, Color White, Lamp Module Voltage 250V DC, Lamp Module Type Full Voltage, Lamp Type LED, Lamp Voltage 250V DC, Contact Rating 10A @ 600V AC, NEMA Rating 13, 4X, IP Rating 66, Standards CSA, UL, Terminal Connection Screw Clamp
graingerSKU: 6HL87, mscSKU: , zoro_no: G2874663, mongo_id: 65bbe7bf9a749db8227539ce

Web Price

$132.49 / each

Qty

Product Details

Action Maintained / Momentary

Ambient Air Temperature For Operation -40-55ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Double-insulated Plastic

Bezel Material dark grey plastic

Bulb Base BA 9s

Cap/Operator Or Lens Colour white

Color White

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO/1NC

Contact Operation slow-break

Contact Rating 10A @ 600V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 1 NC

Contacts Usage standard contacts

Country of Origin (subject to change) Czechia

Depth 54 mm

Device Presentation complete product

Device Short Name XB5

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4

Fixing Collar Material plastic

Head Material Plastic

Head Type standard

Height 42 mm

Ik Degree Of Protection IK05 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP69 || IP69K || IP67

IP Rating 66

Lamp Module Type Full Voltage

Lamp Module Voltage 250V DC

Lamp Type Led

Lamp Voltage 250V DC

Light Block Supply direct <2.4 W

Light Source bulb not included

Mechanical Durability 10000000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 13, 4X

Operating Force 3.5 N NC changing electrical state || 3.8 N

Operating Travel 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operator Additional Information with plain lens

Operator Profile white flush, unmarked

Overvoltage Category class II IEC 60536

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications UL Listed || BV || GL || LROS (Lloyds register of shipping) || DNV || CSA

Product Or Component Type illuminated push-button

Protective Treatment TH

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Signalling Type steady

Size 22 mm

Standards CSA, UL

Terminal Connection Screw Clamp

Terminals Description Iso NÃÂ°1 (13-14)NO || (21-22)NC

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator Flush Button

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

Width 30 mm

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1

[Us] Rated Supply Voltage <= 250 V
