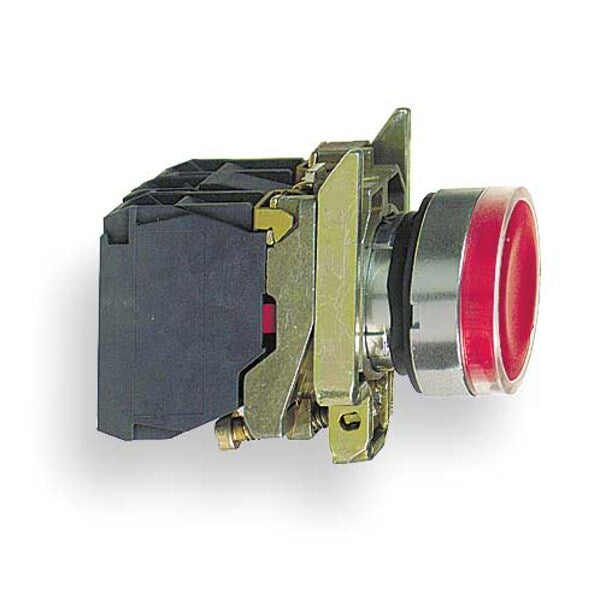

Illuminated Push Button, 22mm, Red

SKU
Brand Schneider Electric
Categories
Description Illuminated Push Button, 22 mm, Momentary, Type of Operator Round Guarded Button, Basic Material Metal, Metal Head Material, 1NO/1NC Contact Form, Chrome Plated Metal Bezel, Color Red, Lamp Module Voltage 24V AC/DC, Lamp Module Type Full Voltage, Lamp Type LED, Lamp Voltage 24V AC/DC, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating 66, Standards CE, CSA, UL, Terminal Connection Pressure Plate
graingerSKU: 6HL15, mscSKU: , zoro_no: G0360622, mongo_id: 65bbe6c23aaddbd5a904ee48

Web Price

$118.11 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Ambient Air Temperature For Storage -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Average Life 100000 hr

Basic Material Metal

Bezel Chrome Plated Metal

Bezel Material Chromium plated metal

Bulb Base Integral LED

Color Red

Connections - Terminals Screw clamp terminals, Less than or Equal to 2 x 1.5 mmÃÂ² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mmÃÂ² without cable end IEC 60947-1

Contact Form 1NO/1NC

Contact Operation Slow-break

Contact Rating 10A @ 600V AC

Contact Type 1NO/1NC

Contact Type and Composition 1 NO + 1 NC

Contacts Material Silver alloy (Ag/Ni)

Contacts Usage Standard contacts

Conventional Free Air Thermal Current 10 A IEC 60947-5-1

Country of Origin (subject to change) France

Current Consumption 18 mA

Depth 2.24 in (57 mm)

Device Presentation Complete product

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Reliability Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Electrical Shock Protection Class Class I IEC 60536

Electromagnetic Emission Class B IEC 55011

Fixing Collar Material Zamak

Head Material Metal

Head Type Standard

Height 47 mm

IK Degree Of Protection IK06 IEC 50102

IP Degree Of Protection IP66 IEC 60529; IP67; IP69; IP69K

IP Rating 66

Lamp Module Type Full Voltage

Lamp Module Voltage 24V AC/DC

Lamp Type Led

Lamp Voltage 24V AC/DC

Length 57 mm

Light Source Universal LED

Mechanical Durability 10000000 cycles

Mounting Diameter 0.87 in (22 mm)

NEMA Contact Rating Designation A600/Q600

NEMA Degree Of Protection NEMA 13; NEMA 4X

NEMA Rating 1, 12, 13, 2, 3, 4, 4X

Number of Operators 1

Operating Force 3.5 N NC changing electrical state; 3.8 N

Operating Travel 0.06 in (1.5 mm) NC changing electrical state); 0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)

Operator Profile Red flush

Package Quantity 1

Positive Opening With IEC 60947-5-1 appendix K

Product Certifications BV; UL Listed; DNV; CSA; LROS (Lloyds register of shipping); GL

Product Or Component Type Illuminated push-button

Protective Treatment TH

Rated Impulse Withstand Voltage 6 kV IEC 60947-1

Rated Insulation Voltage 600 V 3)IEC 60947-1

Rated Operational Current 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Rated Supply Voltage 24 V AC/DC 50/60 Hz

Resistance To Electromagnetic Fields 9.14 V/m (10 V/m) IEC 61000-4-3

Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To Fast Transients 2 kV IEC 61000-4-4

Resistance To High Pressure Washer 1015.26 psi (7000000 Pa) 131ÃÂ°F (55ÃÂ°C) 0.1 m

Service Life 100000 h at rated voltage and 25ÃÂ°C

Shape Round

Shape Of Screw Head Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1

Signalling Type Steady

Size 22 mm
