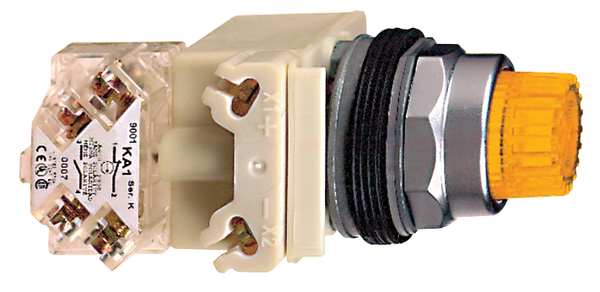

Illuminated Push Button, 30 mm, 1NO/1NC, Amber

SKU
Brand Schneider Electric
Categories
Description Illuminated Push Button, 30 mm, Momentary, Type of Operator Round Button, Basic Material Metal, Metal Head Material, 1NO/1NC Contact Form, Chrome Plated Zinc Die Cast Bezel, Color Amber, Lamp Module Voltage 120V AC, Lamp Module Type Full Voltage, Lamp Type LED, Lamp Voltage 120V AC, Replacement Lamp Mfr. No. 25501-010-27, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating 66, Standards CE, CSA, UL
graingerSKU: 5KCF4, mscSKU: , zoro_no: G0865243, mongo_id: 65bbe9ba22d7a989a9972181

Web Price

$256.24 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Chrome Plated Zinc Die Cast

Bezel Material metal

Bulb Base BA 9s

Cad Overall Depth 103 mm

Cad Overall Height 42 mm

Cad Overall Width 54 mm

Cap/Operator Or Lens Colour amber

Color Amber

Connections - Terminals screw clamp terminals 1 x 0.22 to 2 x 1.5 mmÃÂ² IEC 60947-1

Contact Form 1NO/1NC

Contact Operation standard

Contact Rating 10A @ 600V AC

Contact Type 1NO/1NC

Contacts Material silver alloy contacts

Contacts Type And Composition 1 C/O

Conventional Free Air Thermal Current 10 A

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name 9001K

Head Material Metal

Ip Degree Of Protection IP66 IEC 60529

IP Rating 66

Lamp Module Type Full Voltage

Lamp Module Voltage 120V AC

Lamp Type Led

Lamp Voltage 120V AC

Light Block Supply direct

Light Source LED

Light Source Colour yellow

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4

NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6

Number of Operators 1

Operating Position any position

Operator Additional Information without guard

Operator Profile amber projecting, unmarked, projecting

Overvoltage Category class II IEC 61140

Package Quantity 1

Positive Opening without

Product Certifications NEMA || UL 508

Product Or Component Type illuminated push-button

Protective Treatment TC

Rated Breaking Capacity 0.1 kA 480 V AC-15, 720 VA || 1.2 kA 480 V AC-15, 720 VA || 1.5 kA 240 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 120 V AC-15, 720 VA || 6 kA 600 V AC-15, 720 VA || 0.55 kA 600 V DC-13

Rated Short Circuit Making Capacity 0.1 kA 480 V AC-15, 7200 VA; 12 kA 600 V AC-15, 7200 VA; 15 kA 480 V AC-15, 7200 VA; 30 kA 240 V AC-15, 7200 VA; 60 kA 120 V AC-15, 7200 VA

Rated Supply Voltage 120 V AC/DC

Replacement Lamp Mfr. No. 25501-010-27

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head octagonal

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse IEC 60947-5-1

Size 30 mm

Standards CE, CSA, UL

Terminal Connection Pressure Plate

Terminals Description Iso NÃÂ°1 (13-14-11-12)OF

Tightening Torque 0.8-0.8 N.m IEC 60947-1

Type of Operator Round Button

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

Voltage 120V AC/DC

[Icm] Rated Short-Circuit Making Capacity 0.1 kA 480 V AC-15, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA

[Ie] Rated Operational Current 0.55 A 125 V, DC-13, A600-Q600 NEMA

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1

[Us] Rated Supply Voltage 120 V, 120 V AC/DC
