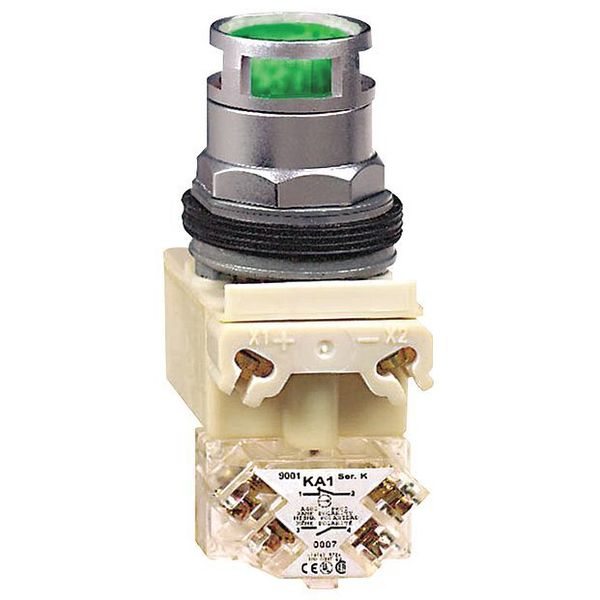

Illuminated Push Button, 30 mm, 1NO/1NC, Green

SKU
Brand Schneider Electric
Categories
Description Illuminated Push Button, 30 mm, Momentary, Type of Operator Round Extended Guarded Button, Basic Material Metal, Metal Head Material, 1NO/1NC Contact Form, Chrome Plated Zinc Die Cast Bezel, Color Green, Lamp Module Voltage 120V AC, Lamp Module Type Transformer, Lamp Type Incandescent, Lamp Voltage 6V AC, Replacement Lamp Mfr. No. 755, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, IP Rating 66
graingerSKU: 5KCF6, mscSKU: , zoro_no: G1287763, mongo_id: 65bbea5822d7a989a99ab63e

Web Price

$279.99 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Chrome Plated Zinc Die Cast

Bezel Material metal

Bulb Base BA 9s

Cap/Operator Or Lens Colour green

Color Green

Connections - Terminals screw clamp terminals 1 x 0.22 to 2 x 1.5 mmÃÂ² IEC 60947-1

Contact Form 1NO/1NC

Contact Operation standard

Contact Rating 10A @ 600V AC

Contact Type 1NO/1NC

Contacts Material silver alloy contacts

Contacts Type And Composition 1 C/O

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name 9001K

Head Material Metal

Ip Degree Of Protection IP66 IEC 60529

IP Rating 66

Lamp Module Type Transformer

Lamp Module Voltage 120V AC

Lamp Type incandescent

Lamp Voltage 6V AC

Light Block Supply via integral transformer 6 V, via integral transformer

Light Source incandescent, incandescent bulb

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4

NEMA Rating 1, 12, 13, 2, 3, 3R, 4

Number of Operators 1

Operating Position any position

Operator Additional Information metal guard

Operator Profile green flush, unmarked, flush

Overvoltage Category class II IEC 61140

Package Quantity 1

Positive Opening without

Product Certifications NEMA || UL 508

Product Or Component Type illuminated push-button

Protective Treatment TC

Rated Breaking Capacity 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Replacement Lamp Mfr. No. 755

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head octagonal

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse IEC 60947-5-1

Size 30 mm

Standards CE, CSA, UL

Supply Frequency 50 to 60 Hz

Terminal Connection Pressure Plate

Tightening Torque 0.8-0.8 N.m IEC 60947-1

Type of Operator Round Extended Guarded Button

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

Voltage 120V AC

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 12 kA 600 V DC-13, 7200 VA || 0.1 kA 480 V AC-15 || 0.27 kA 240 V AC-15 || 0.55 kA 120 V AC-15

[Ie] Rated Operational Current 0.55 A 125 V, DC-13, A600-Q600 NEMA

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1

[Us] Rated Supply Voltage 110 to 120 V AC, 110 to 120 V
