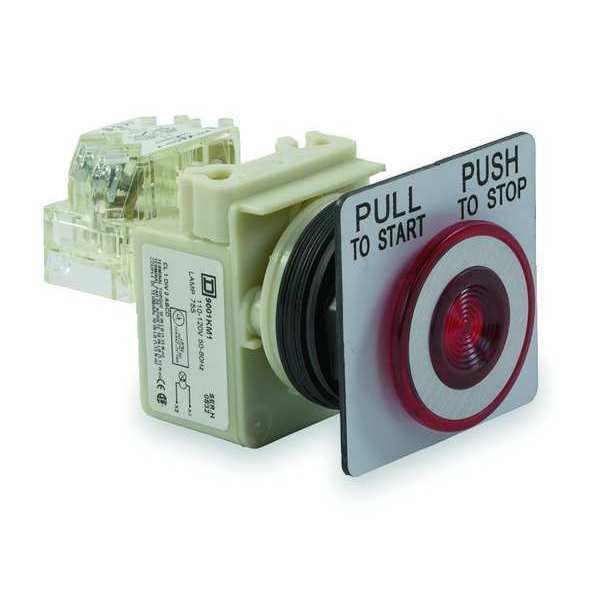

Illuminated Push Button, 30 mm, 1NO/1NC, Red

SKU
Brand Schneider Electric
Categories
Description Illuminated Push Button, 30 mm, Maintained Pull / Maintained Push, Type of Operator 41mm Mushroom Head, Basic Material Plastic, Plastic Head Material, 1NO/1NC Contact Form, Corrosion Resistant Thermoplastic Bezel, Color Red, Lamp Module Voltage 120V AC, Lamp Module Type Transformer, Lamp Type Incandescent, Lamp Voltage 6V AC, Replacement Lamp Mfr. No. 755, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6
graingerSKU: 2NML4, mscSKU: , zoro_no: G2778675, mongo_id: 65bbe5af3aaddbd5a9fdc0fe

Web Price

$362.49 / each

Qty

Product Details

Action Maintained Pull / Maintained Push

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Corrosion Resistant Thermoplastic

Bezel Material plastic

Bulb Base BA 9s

Cap/Operator Or Lens Colour red

Color Red

Connections - Terminals screw clamp terminals, 1 x 0.22 to 2 x 1.5 mmÃÂ² IEC 60947-1

Contact Form 1NO/1NC

Contact Rating 10A @ 600V AC

Contact Type 1NO/1NC

Contacts Material silver alloy contacts

Contacts Type And Composition 1 C/O

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name 9001SK

Electrical Shock Protection Class class II IEC 60536

Head Material Plastic

Ip Degree Of Protection IP66 IEC 60529 || IP66 NF C 20-010

IP Rating 66

Lamp Module Type Transformer

Lamp Module Voltage 120V AC

Lamp Type incandescent

Lamp Voltage 6V AC

Light Block Supply via integral transformer

Light Source incandescent bulb, incandescent

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6

Number of Operators 1

Operating Position any position

Operator Additional Information screw-on plastic

Operator Position Information 2 positions

Operator Profile red mushroom ÃÂ 41 mm, mushroom ÃÂ 41 mm

Package Quantity 1

Product Or Component Type illuminated push-button

Protective Treatment TC

Rated Breaking Capacity 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Replacement Lamp Mfr. No. 755

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head round

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse IEC 60947-5-1

Size 30 mm

Standards CE, CSA, UL

Supply Frequency 50 to 60 Hz

Terminal Connection Pressure Plate

Tightening Torque 0.8-0.8 N.m IEC 60947-1

Type of Operator 41mm Mushroom Head

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

Voltage 120V AC

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1

[Us] Rated Supply Voltage 110 to 120 V AC 50 to 60 Hz, 110 to 120 V
