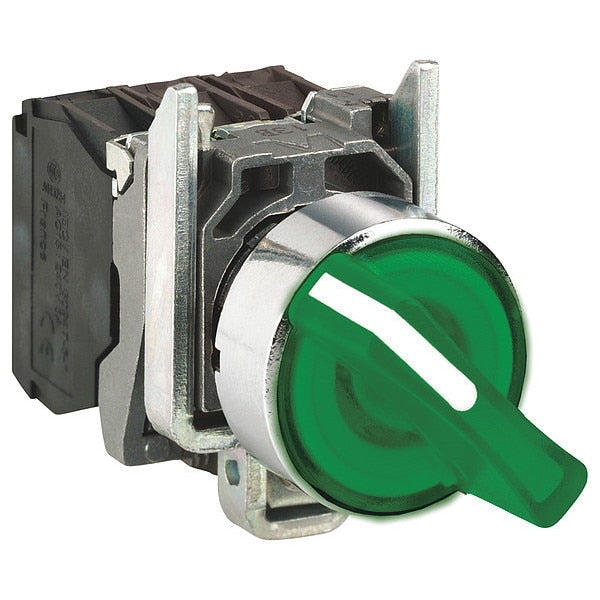

Illuminated Selector Switch, 22mm Sz

SKU
Brand Schneider Electric
Categories
Description Illuminated selector Switch, 22 mm, 2 Position, Maintained / Maintained Action, 1NO/1NC Contact Form, Type of Operator Selector Switch, Color Green, No Key Key Removal, Basic Material Metal, Bezel Material Chromium Plated Metal, Bezel Color Chrome, Contact Rating 0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 13, 4x, IP Rating 66, 67, 69, 69K, Switch Operation @ Position C No Third Position

Web Price

$111.44 / each

Qty

Product Details

Action Maintained / Maintained

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Color Chrome

Bezel Material Chromium Plated Metal

Bulb Base integral LED

Color Green

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO/1NC

Contact Operation slow-break

Contact Rating 0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 1 NC

Contacts Usage standard contacts

Country of Origin (subject to change) France

Current Consumption 14 mA

Depth 68 mm

Device Presentation complete product

Device Short Name XB4

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C

Electrical Reliability ÃÂ» < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ» < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Electrical Shock Protection Class class I IEC 60536

Electromagnetic Emission class B IEC 55011

Fixing Collar Material zamak

Head Type standard

Height 47 mm

Ik Degree Of Protection IK04 IEC 50102

Includes ZB4BK1233, ZB4BW0G35

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

IP Rating 66, 67, 69, 69K

Key Removal No Key

Light Source universal LED

Mechanical Durability 1000000 cycles

Mounting Diameter 22 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 13, 4x

Operating Torque 0.14 N.m NO changing electrical state

Operator Position Information 2 positions 90ÃÂ°

Operator Profile green standard handle

Package Quantity 1

Position 2

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications GL || LROS (Lloyds register of shipping) || CSA || BV || UL || DNV

Product Or Component Type illuminated selector switch

Protective Treatment TH

Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3

Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To Fast Transients 2 kV IEC 61000-4-4

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Signalling Type steady

Size 22 mm

Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508

Supply Voltage Limits 100-132 V AC

Surge Withstand 1 kV IEC 61000-4-5

Switch Operation @ Position C No Third Position

Switch Operation @ Position D No Fourth Position

Terminals Description Iso NÃÂ°1 (13-14)NO || (21-22)NC

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator Selector Switch

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

Width 30 mm

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1

[Us] Rated Supply Voltage 110 to 120 V AC 50/60 Hz
