Home / Joystick Operator, 22mm, 2 Dir, Momentary

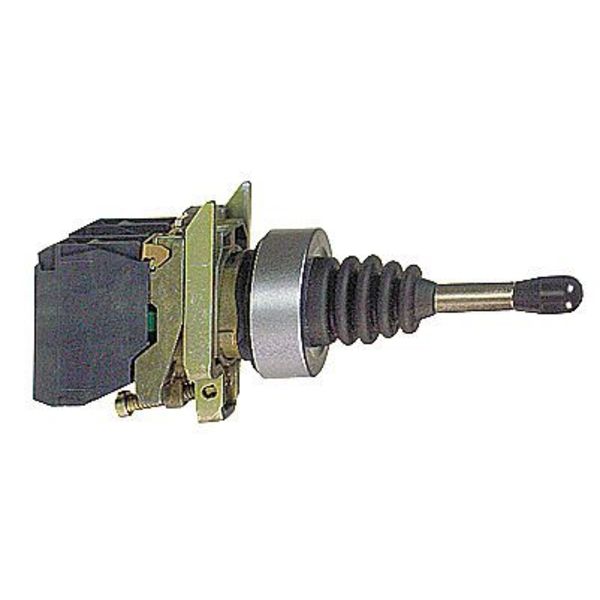

Joystick Operator, 22mm, 2 Dir, Momentary

Joystick Operator, 22mm, 2 Dir, Momentary

  • Schneider Electric
  • Joystick Operator, 22 mm, Number of Directions 2, 2NO Contact Form, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation R300, Joystick Material Metal, Bezel Chromium Plated Metal, Non-Latching, Vertical Direction of Operation, Action Momentary, NEMA Rating 13, 4X, IP Rating 66, Standards CSA, UL

    graingerSKU: 6HM17, mscSKU: , zoro_no: G0868454, mongo_id: 65bbe5af3aaddbd5a9fdc0ee

Web Price
$248.74 / each
Qty

Product Details

Momentary
-25-70°C
-40-70°C
Chromium Plated Metal
chromium plated metal
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
2NO
slow-break
10A @ 600V AC
silver alloy (Ag/Ni)
1 NO
standard
10 A IEC 60947-5-1
France
complete product
XD4
Vertical
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
class I IEC 60536
zamak
IK03 IEC 50102
IP66 IEC 60529
66
Metal
Non-Latching
1000000 cycles
22 mm
R300
NEMA 13 || NEMA 4X
13, 4X
1-1
2
2 directions
3 positions
1
without
DNV || LROS (Lloyds register of shipping) || UL Listed || BV || GL || CSA
joystick controller
TH
6 kV IEC 60947-1
600 V 3)IEC 60947-1
0.1 A 250 V, DC-13, R300 IEC 60947-5-1; 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
7000000 Pa 55°C 0.1 m
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
round
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
10 A cartridge fuse gG EN/IEC 60947-5-1
22 mm
CSA, UL
0.8-1.2 N.m EN 60947-1
spring return to 0 position, long operating shaft 54 mm
5 gn 2-500 Hz)IEC 60068-2-6
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
10 A EN/IEC 60947-5-1
6 kV EN 60947-1
600 V 3)EN 60947-1
