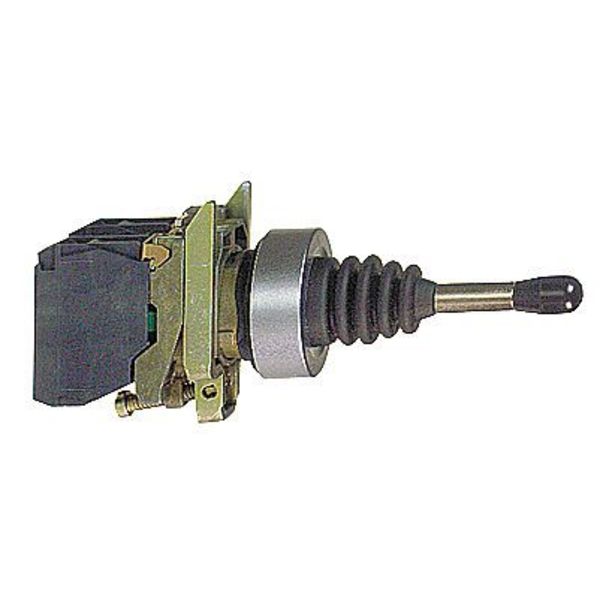

Joystick Operator, 22mm, 4 Dir, Maintained

Joystick Operator, 22mm, 4 Dir, Maintained

  • Schneider Electric
  • Joystick Operator, 22 mm, Number of Directions 4, 4NO Contact Form, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation R300, Joystick Material Chrome, Bezel Chromium Plated Metal, Latching, Vertical and Horizontal Direction of Operation, Action Maintained, NEMA Rating 13, 4X, IP Rating 66, Standards CSA, UL

    graingerSKU: 6HM16, mscSKU: , zoro_no: G2733701, mongo_id: 65bbea0522d7a989a998eb7f

Web Price
$336.24 / each
Qty

Product Details

Maintained
-25-70°C
-40-70°C
Chromium Plated Metal
chromium plated metal
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
4NO
slow-break
10A @ 600V AC
silver alloy (Ag/Ni)
1 NO
standard
France
complete product
XD4
Vertical and Horizontal
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
class I IEC 60536
zamak
IK03 IEC 50102
IP66 IEC 60529
66
Chrome
Latching
1000000 cycles
22 mm
R300
NEMA 13 || NEMA 4X
13, 4X
1-1
4
4 directions
5 positions
1
without
LROS (Lloyds register of shipping) || CSA || UL Listed || BV || DNV || GL
joystick controller
TH
7000000 Pa 55°C 0.1 m
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
round
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
10 A cartridge fuse gG EN/IEC 60947-5-1
22 mm
CSA, UL
0.8-1.2 N.m EN 60947-1
stay put, long operating shaft 54 mm
5 gn 2-500 Hz)IEC 60068-2-6
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
10 A EN/IEC 60947-5-1
6 kV EN 60947-1
600 V 3)EN 60947-1
