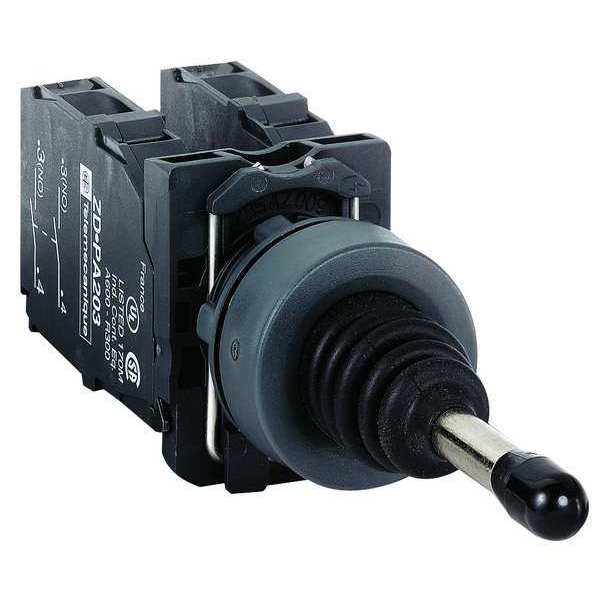

Joystick Operator, 22mm, 4 Dir, Momentary

Joystick Operator, 22mm, 4 Dir, Momentary

  • Schneider Electric
  • Joystick Operator, 22 mm, Number of Directions 4, 4NO Contact Form, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation R300, Joystick Material Plastic, Bezel Plastic, Non-Latching, Vertical and Horizontal Direction of Operation, Action Momentary, NEMA Rating 13, 4X, IP Rating 66, Standards CSA, UL

    graingerSKU: 6HM22, mscSKU: 55424865, zoro_no: G1277227, mongo_id: 65bbe9db22d7a989a99806a9

Web Price
$329.99 / each
Qty

Product Details

Momentary
-25-70°C
-40-70°C
Plastic
plastic
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
4NO
slow-break
10A @ 600V AC
silver alloy (Ag/Ni)
1 NO
standard
France
132 mm
complete product
XD5
Vertical and Horizontal
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
class II IEC 60536
plastic
47 mm
IK03 IEC 50102
IP66 IEC 60529
66
Plastic
Non-Latching
1000000 cycles
22 mm
R300
NEMA 13 || NEMA 4X
13, 4X
1-1
4
4 directions
5 positions
54 mm long operating shaft
1
without
LROS (Lloyds register of shipping) || DNV || UL Listed || GL || CSA || BV
joystick controller
TH
7000000 Pa 55°C 0.1 m
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
round
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
10 A cartridge fuse gG EN/IEC 60947-5-1
22 mm
CSA, UL
0.8-1.2 N.m EN 60947-1
to 0 position spring return
5 gn 2-500 Hz)IEC 60068-2-6
30 mm
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
10 A EN/IEC 60947-5-1
6 kV EN 60947-1
600 V 3)EN 60947-1
