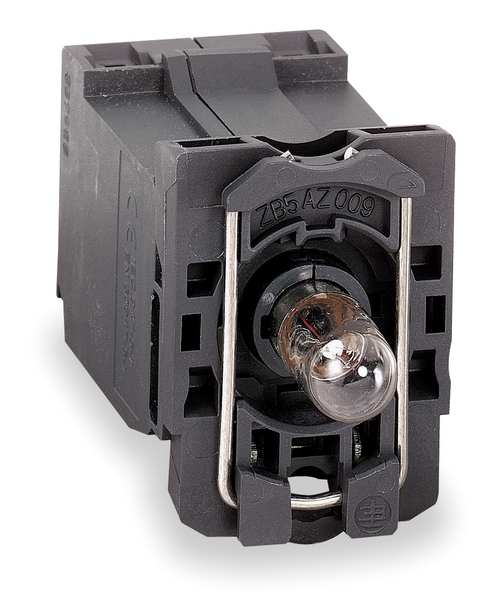

Lamp Module, 22mm, 480VAC, Incandescent

Lamp Module, 22mm, 480VAC, Incandescent

  • Schneider Electric
  • Lamp Module with Bulb, Lamp Module Voltage 480V AC, Clear, Lamp Type Incandescent, Lamp Voltage 6V AC, Terminal Connection Screw Clamp, 22 mm, Lamp Module Type Transformer, Plastic Material of Construction, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating 20, Standards EN/IEC 60947-1 : EN/IEC 60947-5-1 : EN/IEC 60947-5-4 : JIS C 4520 : UL 508 : CSA C22.2 No 14

    graingerSKU: 6KZ05, mscSKU: , zoro_no: G2742582, mongo_id: 65bbe76a9a749db822736f70

Web Price
$84.24 / each
Qty

Product Details

-40-55°C
-40-70°C
BA 9s
55 mm
42 mm
30 mm
Clear
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
France
basic sub-assemblies
ZB5
P4 || M9
class II IEC 60536
plastic
20
Transformer
480V AC
incandescent
6V AC
via integral transformer 1.2 VA 6 V
incandescent
Plastic
front mounting
1, 12, 13, 2, 3, 4, 4X
1
LROS (Lloyds register of shipping) || BV || GL || CSA || DNV || UL Listed
complete body/light block assembly
Lamp Module with Bulb
TH
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
steady
22 mm
EN/IEC 60947-1 : EN/IEC 60947-5-1 : EN/IEC 60947-5-4 : JIS C 4520 : UL 508 : CSA C22.2 No 14
Screw Clamp
(X1-X2)PL
0.8-1.2 N.m EN 60947-1
5 gn 2-500 Hz)IEC 60068-2-6
6 kV EN 60947-1
600 V 3)EN 60947-1
440 to 480 V AC 50/60 Hz
