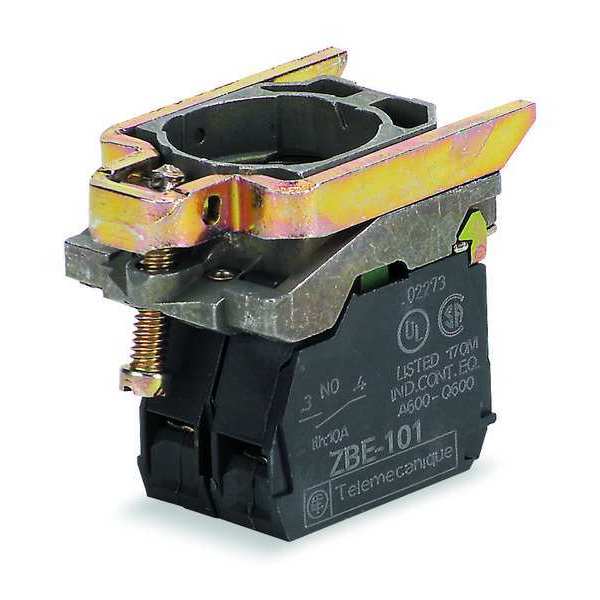

Lamp Module and Contact Block, 1NO/1NC

SKU
Brand Schneider Electric
Categories
Description Lamp Module and Contact Block, Color Clear, Contact Form 1NO/1NC, For Use With B9 Modules, Lamp Module Type Full Voltage, Lamp Module Voltage 250V AC/DC, Lamp Type Incandescent, 22 mm, Lamp Voltage 250V AC/DC, Replacement Lamp B9, Contact Rating 10 A @ 600V AC/DC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating 66, Standards CE, CSA, UL
graingerSKU: 6HR04, mscSKU: 69670826, zoro_no: G1852636, mongo_id: 65bbe7c23aaddbd5a90b33b7

Web Price

$86.44 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Ambient Air Temperature For Storage -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Basic Material Zamak

Bulb Base BA 9s

Color Clear

Connections - Terminals Screw clamp terminals, Less than or Equal to 2 x 1.5 mmÃÂ² with cable end IEC 60947-1; Screw clamp terminals, Greater than or Equal to 1 x 0.22 mmÃÂ² without cable end IEC 60947-1

Contact Form 1NO/1NC

Contact Operation Slow-break

Contact Rating 10 A @ 600V AC/DC

Contact Type and Composition 1 NO + 1 NC

Contacts Material Silver alloy (Ag/Ni)

Contacts Usage Standard

Conventional Free Air Thermal Current 10 A IEC 60947-5-1

Country of Origin (subject to change) France

Device Presentation Basic sub-assemblies

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Reliability Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Electrical Shock Protection Class Class I IEC 60536

For Use With B9 Modules

Head Type Standard

IP Rating 66

Lamp Module Type Full Voltage

Lamp Module Voltage 250V AC/DC

Lamp Type Incandescent

Lamp Voltage 250V AC/DC

Light Block Supply Direct Less than 2.4 W

Light Source Bulb not included

Mechanical Durability 5000000 cycles

NEMA Contact Rating Designation A600/Q600

NEMA Rating 1, 12, 13, 2, 3, 4, 4X

Operating Force 2 N NC changing electrical state; 2.3 N NO changing electrical state

Operating Torque 0.44 lbf.in (0.05 N.m) NO changing electrical state

Operating Travel 0.06 in (1.5 mm) NC changing electrical state); 0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)

Package Quantity 1

Positive Opening With IEC 60947-5-1 appendix K

Product Certifications UL Listed; CSA; DNV; GL; BV; LROS (Lloyds register of shipping)

Product Or Component Type Complete body/contact assembly and light block

Protective Treatment TH

Rated Impulse Withstand Voltage 6 kV IEC 60947-1

Rated Insulation Voltage 600 V 3)IEC 60947-1

Rated Operational Current 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Rated Supply Voltage Less than or Equal to 250 V

Replacement Lamp B9

Shape Of Screw Head Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1

Signalling Type Steady

Size 22 mm

Standards CE, CSA, UL

Terminal Connection Screw Clamp terminals

Terminals Description ISO nÃÂ°1 (11-12)NC

Tightening Torque 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1

Type Steady Signal
