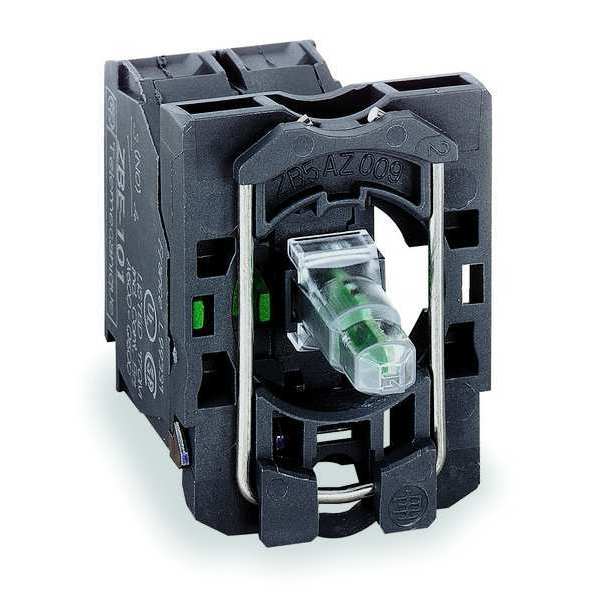

Lamp Module and Contact Block, 1NO/1NC

SKU
Brand Schneider Electric
Categories
Description Lamp Module and Contact Block, Color Clear, Contact Form 1NO/1NC, For Use With B9 Modules, Lamp Module Type Transformer, Lamp Module Voltage 220 to 240V AC, Lamp Type Incandescent, 22 mm, Lamp Voltage 6V AC, Replacement Lamp B9, Contact Rating 10 A @ 600V AC/DC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating 66, Standards CE, CSA, UL
graingerSKU: 6HW39, mscSKU: , zoro_no: G0299083, mongo_id: 65bbe9ba22d7a989a997216c

Web Price

$176.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Ambient Air Temperature For Storage -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Basic Material Plastic

Bulb Base BA 9s

Color Clear

Connections - Terminals Screw clamp terminals, Less than or Equal to 2 x 1.5 mmÃÂ² with cable end IEC 60947-1; Screw clamp terminals, Greater than or Equal to 1 x 0.22 mmÃÂ² without cable end IEC 60947-1

Contact Form 1NO/1NC

Contact Operation Slow-break

Contact Rating 10 A @ 600V AC/DC

Contact Type and Composition 1 NO + 1 NC

Contacts Material Silver alloy (Ag/Ni)

Contacts Usage Standard

Conventional Free Air Thermal Current 10 A IEC 60947-5-1

Country of Origin (subject to change) France

Device Presentation Basic sub-assemblies

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Reliability Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Electrical Shock Protection Class Class II IEC 60536

For Use With B9 Modules

Head Type Standard

Hz_ 50/60 Hz

IP Rating 66

Lamp Module Type Transformer

Lamp Module Voltage 220 to 240V AC

Lamp Type Incandescent

Lamp Voltage 6V AC

Light Block Supply Via integral transformer 1.2 VA 6 V

Mechanical Durability 5000000 cycles

NEMA Contact Rating Designation A600/Q600

NEMA Rating 1, 12, 13, 2, 3, 4, 4X

Operating Force 2 N NC changing electrical state; 2.3 N NO changing electrical state

Operating Torque 0.44 lbf.in (0.05 N.m) NO changing electrical state

Operating Travel 0.06 in (1.5 mm) NC changing electrical state); 0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)

Package Quantity 1

Positive Opening With IEC 60947-5-1 appendix K

Product Certifications GL; UL Listed; LROS (Lloyds register of shipping); DNV; CSA; BV

Product Or Component Type Complete body/contact assembly and light block

Protective Treatment TH

Rated Impulse Withstand Voltage 6 kV IEC 60947-1

Rated Insulation Voltage 600 V 3)IEC 60947-1

Rated Operational Current 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Rated Supply Voltage 220 to 240 V AC 50/60 Hz

Replacement Lamp B9

Shape Of Screw Head Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1

Signalling Type Steady

Size 22 mm

Standards CE, CSA, UL

Terminal Connection Screw Clamp terminals

Terminals Description ISO nÃÂ°1 (11-12)NC; (13-14)NO

Tightening Torque 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1

Type Steady Signal
