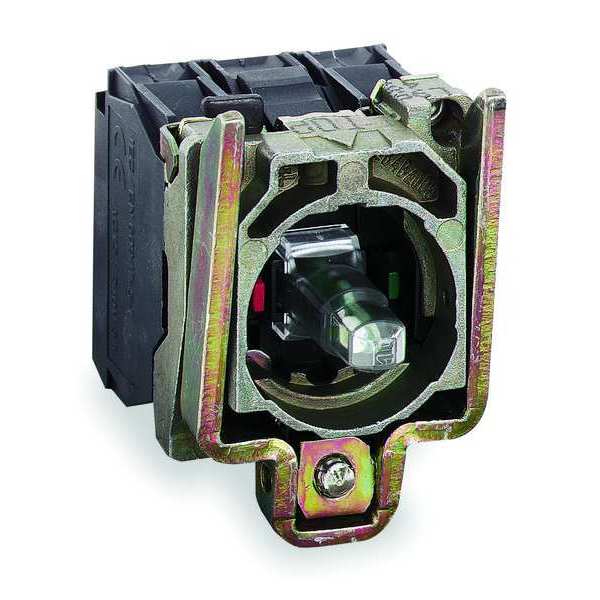

Lamp Module and Contact Block, 22mm, 2NO

SKU
Brand Schneider Electric
Categories
Description Lamp Module and Contact Block, Color White, Contact Form 2NO, For Use With Chrome, ZB4 Series, Lamp Module Type Full Voltage, Lamp Module Voltage 110 to 120V AC, Lamp Type LED, 22 mm, Lamp Voltage 110 to 120V AC, Contact Rating 10 A @ 600V AC/DC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating 66, Standards CE, CSA, UL
graingerSKU: 6HR27, mscSKU: , zoro_no: G1396552, mongo_id: 65bbea2f22d7a989a999d147

Web Price

$104.94 / each

Qty

Product Details

Ambient Air Temperature For Operation -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Ambient Air Temperature For Storage -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Average Life 100000 hr

Basic Material Zamak

Bulb Base Integral LED

Color White

Connections - Terminals Screw clamp terminals, Less than or Equal to 2 x 1.5 mmÃÂ² with cable end IEC 60947-1; Screw clamp terminals, Greater than or Equal to 1 x 0.22 mmÃÂ² without cable end IEC 60947-1

Contact Form 2NO

Contact Operation Slow-break

Contact Rating 10A @ 600V AC/DC

Contact Type and Composition 2 NO

Contacts Material Silver alloy (Ag/Ni)

Contacts Usage Standard

Conventional Free Air Thermal Current 10 A IEC 60947-5-1

Country of Origin (subject to change) France

Current Consumption 14 mA

Device Presentation Basic sub-assemblies

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Reliability Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Electrical Shock Protection Class Class I IEC 60536

Electromagnetic Emission Class B IEC 55011

For Use With Chrome, ZB4 Series

Head Type Standard

Hz_ 50/60 Hz

IP Rating 66

Lamp Module Type Full Voltage

Lamp Module Voltage 110 to 120V AC

Lamp Type Led

Lamp Voltage 110 to 120V AC

Light Block Supply Direct

Light Source Universal LED

Mechanical Durability 5000000 cycles

NEMA Contact Rating Designation A600/Q600

NEMA Rating 1, 12, 13, 2, 3, 4, 4X

Operating Force 2.3 N NO changing electrical state

Operating Torque 0.44 lbf.in (0.05 N.m) NO changing electrical state

Operating Travel 0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)

Package Quantity 1

Positive Opening Without

Product Certifications BV; GL; DNV; LROS (Lloyds register of shipping); UL Listed; CSA

Product Or Component Type Complete body/contact assembly and light block

Protective Treatment TH

Rated Impulse Withstand Voltage 6 kV IEC 60947-1

Rated Insulation Voltage 600 V 3)IEC 60947-1

Rated Operational Current 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Rated Supply Voltage 110 to 120 V AC 50/60 Hz

Resistance To Electromagnetic Fields 9.14 V/m (10 V/m) IEC 61000-4-3

Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-2-6; 8 kV in free air (in insulating parts) IEC 61000-2-6

Resistance To Fast Transients 2 kV IEC 61000-4-4

Service Life 100000 h at rated voltage and 25ÃÂ°C

Shape Of Screw Head Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1

Signalling Type Steady

Size 22 mm

Standards CE, CSA, UL

Surge Withstand 1 kV IEC 61000-4-5
