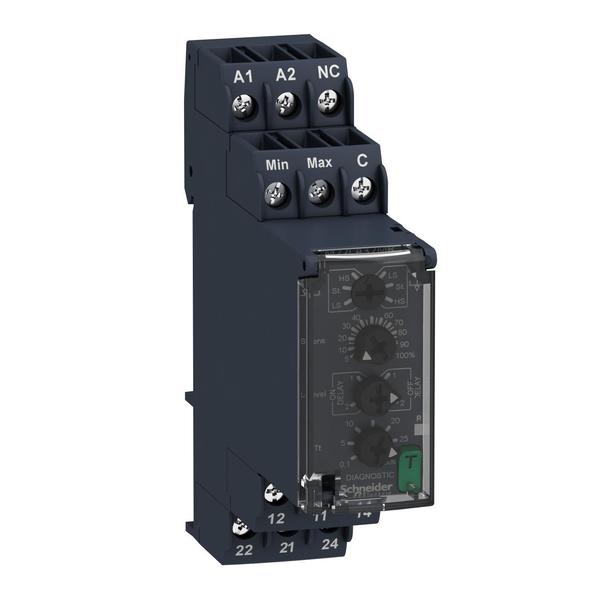

Level Ctrl Relay24-240VAC In 0.25k-1mo

SKU
Brand Schneider Electric
Categories
Description Level Ctrl Relay24-240VAC In 0.25k-1mo
graingerSKU: , mscSKU: , zoro_no: G5956813, mongo_id: 65bbe92822d7a989a993aefa

Web Price

$119.24 / each

Qty

Product Details

Ambient Air Temperature For Storage -40-70ÃÂ°C

Cable Capacitance 1 nF HS (High Sensitivity) probe cable || 2.2 nF St (Standard Sensitivity) probe cable || 4.7 nF LS (Low Sensitivity) probe cable

Connections - Terminals screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mmÃÂ² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mmÃÂ² AWG 24...AWG 14) flexible with cable end

Contacts Material cadmium free

Contacts Type And Composition 2 C/O

Country of Origin (subject to change) India

Dielectric Test Voltage 2.5 kV AC 50 Hz, 1 min IEC 60255-27

Electrical Durability 100000 cycles

Electromagnetic Compatibility immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22

Housing Material self-extinguishing plastic

Immunity To Microbreaks 100 ms DC || 90 ms AC

Insulation between supply and measurement

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)

Maximum Cable Distance Between Devices 1000 m probe and delay

Maximum Electrode Current 1 mA

Maximum Electrode Voltage 12 V AC

Maximum Power Consumption In W 1.5 W DC

Maximum Supply Current For Sensors 1 mA

Maximum Switching Current 8 A AC

Maximum Switching Voltage 250 V AC

Measurement Error < 1 % over the whole range with voltage variation || 0.05 %/ÃÂ°C with temperature variation

Mechanical Durability 10000000 cycles

Minimum Switching Current 10 mA 5 V DC

Mounting Position any position

Mounting Support 35 mm DIN rail conforming to EN/IEC 60715

Nominal Output Current 8A

Output Contacts 2 C/O

Overvoltage Category III IEC 60664-1

Package Quantity 1

Pollution Degree 3 IEC 60664-1

Product Certifications UL || RCM || CSA || GL || CCC || CE || EAC

Product Or Component Type level control relay

Relative Humidity 93-97 % 25-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters detection by resistive probes

Relay Name RM22L

Relay Type level control relay

Repeat Accuracy +/- 2 % time delay

Run-Up Delay At Power-Up 2.5 s || 0.6 s

Sensitivity Adjustment 5-100 %

Sensitivity Scale 0.25...5 kOhm LS (Low Sensitivity) || 5...100 kOhm St (Standard Sensitivity) || 50...1000 kOhm HS (High Sensitivity)

Shock Resistance 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27

Standards EN/IEC 60255-1

Supply Voltage Limits 20.4-264 V AC/DC

Switching Capacity In Va 2000 VA

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Type adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt

Utilisation Category AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1

Vibration Resistance 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

Width 22.5 mm

[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz
