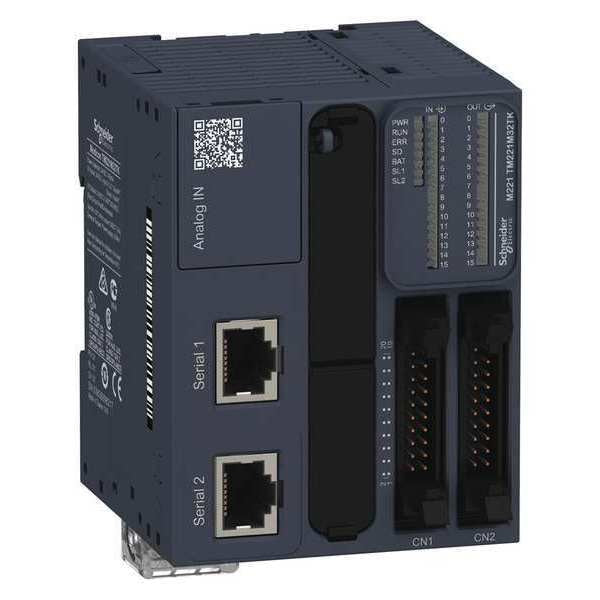

Logic Controller, 0.1A, 16 Outputs, 24VDC

SKU
Brand Schneider Electric
Categories
Description Logic Controller, Input Voltage 24V AC/DC, Output Type Relay, 0.1 A Amps, 2 Slots, Number of Inputs 16 Digital, 2 Analog, Number of Outputs 16, Counters 4, Timers Programmable, Yes Clock, 7 Segment LED Display, Port Type Modbus Serial (2xRJ45 - RS232/RS485), SD Card, USB Mini (Prog.), Memory 256 KB, Depth 3 in, Height 4.17 in, Width 2.75 in
graingerSKU: 35ZV74, mscSKU: , zoro_no: G0270201, mongo_id: 65bbe7fe22d7a989a98cf0f3

Web Price

$594.99 / each

Qty

Product Details

Absolute Accuracy Error +/- 1 % of full scale analog input

Ambient Air Temperature For Operation -10-55 ÃÂ°C horizontal installation) || -10-35 ÃÂ°C vertical installation)

Ambient Air Temperature For Storage -25-70 ÃÂ°C

Amps 0.1 A

Analogue Input Number 2 0 to 10 V

Analogue Input Resolution 10 bits

Application Structure 1 configurable freewheeling/cyclic master task || 1 cyclic auxiliary task || 8 interrupt tasks

Backup Time 1 year 25 ÃÂ°C by interruption of power supply)

Battery Type BR2032 lithium non-rechargeable 4 year(s)

Clock Yes

Clock Drift <= 30 s/month 25-25 ÃÂ°C

Communication Port Protocol USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network

Communication Service Modbus master || Modbus slave

Configurable Filtering Time 0 ms input || 3 ms input || 12 ms input

Control Signal Type single phase || A/B || pulse/direction

Conversion Time 1 ms per channel + 1 controller cycle time analog input

Counter Function Single phase; A/B; Pulse/direction

Counters 4

Counting Input Number 4 fast input (HSC mode) 100 kHz 32 bits

Country of Origin (subject to change) Taiwan, Province of China

Data Backed Up 256 kB built-in flash memory backup of application and data

Data Storage Equipment 2 GB SD card optional)

Depth 3 in

Discrete I/O Number 32

Discrete Input Current 7 mA discrete input || 5 mA fast input

Discrete Input Logic sink or source (positive/negative)

Discrete Input Number 16 , discrete input 4 fast input IEC 61131-2 Type 1

Discrete Input Voltage 24 V

Discrete Input Voltage Type DC

Discrete Output Current 0.1 A

Discrete Output Logic positive logic (source)

Discrete Output Number 16 transistor 2 fast output

Discrete Output Type transistor

Discrete Output Voltage 24 V DC

Display 7 Segment LED

Electrical Connection terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || HE-10 connector, 20 for inputs || HE-10 connector, 20 for outputs

Electromagnetic Emission conducted emissions 79 dBÃÂÃÂ¼V/m QP/66 dBÃÂÃÂ¼V/m AV power lines (AC))0.15-0.5 MHz EN/IEC 55011 || conducted emissions 73 dBÃÂÃÂ¼V/m QP/60 dBÃÂÃÂ¼V/m AV power lines (AC))0.5-300 MHz EN/IEC 55011 || conducted emissions 120 to 69 dBÃÂµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBÃÂÃÂ¼V/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBÃÂÃÂ¼V/m QP class A 10 m)30-230 MHz EN/IEC 55011 || conducted emissions 79 to 63 dBÃÂÃÂ¼V/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBÃÂÃÂ¼V/m QP class A 10 m)200-1000 MHz EN/IEC 55011

Environmental Characteristic ordinary and hazardous location

Exct Time For Event Task 60 ÃÂµs response time

Execution Time For 1 K instruction 0.3 ms event and periodic task; 0.7 ms other instruction

Execution Time For 1 Kinstruction 0.3 ms event and periodic task || 0.7 ms other instruction

Execution Time Per Instruction 0.2 ÃÂµs Boolean

Function Available PLS || PWM || frequency generator

Height 4.17 in

Immunity To Microbreaks 10 ms

Input Impedance 3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input

Input Voltage 24V AC/DC

Inrush Current 35 A

Insulation between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs

Integrated Connection Type USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485

Ip Degree Of Protection IP20 with protective cover in place

Local Signalling for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for I/O state 1 LED per channel (green)

Lsb Value 10 mV

Marking CE

Maximum Cable Distance Between Devices shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input || shielded cable <3 m fast output

Maximum Current Per Output Common 1.6 A

Maximum Leakage Current 0.1 mA transistor output

Maximum Number Of I/O Expansion Module 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Maximum Power Consumption In W 22.3 W 24 V with max number of I/O expansion module) || 3.5 W 24 V without I/O expansion module)

Maximum Size Of Object Areas 8000 %MW memory words || 255 %TM timers || 512 %KW constant words || 512 %M memory bits || 255 %C counters

Maximum Tungsten Load <2.4 W output and fast output

Maximum Voltage Drop <1 V

Mechanical Durability 20000000 cycles transistor output

Memory 256 KB

Memory capacity 256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM

Mounting Support top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Number of Inputs 16 Digital, 2 Analog

Number of Outputs 16

Operating Altitude 0 to 6561.68 ft (0 to 2000 m)

Output Frequency 100 kHz fast output (PWM/PLS mode) Q0 to Q1 || 5 kHz output Q2 to Q3 || 0.1 kHz output Q4 to Q15

Output Type Relay

Package Quantity 1

Permitted Overload On Inputs +/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input

Pollution Degree <= 2

Port Type Modbus Serial (2xRJ45 - RS232/RS485), SD Card, USB Mini (Prog.)

Positioning Functions PTO 2 pulse/direction 100 kHz) || PTO 1 CW/CCW 100 kHz)

Power Supply Output Current 0.52-0.52 A 5 V expansion bus || 0.48-0.48 A 24 V expansion bus

Product Certifications CSA || IACS E10 || cULus || LR || RCM || DNV-GL || EAC || ABS

Product Or Component Type logic controller

Protection Type short-circuit and overload protection with automatic reset || short-circuit protection on output || overload and short-circuit protection 0.2 A

Realtime Clock with

Regulation Loop adjustable PID regulator up to 14 simultaneous loops

Relative Humidity 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Reset Time 1 s automatic reset

Resistance To Conducted Disturbances 10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V 0.1 to 80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields 10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 to 2.7 GHz EN/IEC 61000-4-3

Resistance To Electrostatic Discharge 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2

Resistance To Fast Transients 2 kV EN/IEC 61000-4-4 power lines) || 2 kV EN/IEC 61000-4-4 relay output) || 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link)

Resistance To Magnetic Fields 30 A/m 50/60 Hz EN/IEC 61000-4-8

Response Time 35 ÃÂµs turn-off, I2 to I5 input || 5 ÃÂµs turn-on, I0, I1, I6, I7 fast input || 35 ÃÂµs turn-on, other terminals input || 5 ÃÂµs turn-off, I0, I1, I6, I7 fast input || 100 ÃÂµs turn-off, other terminals input || 5 ÃÂµs turn-on, turn-off, Q0 to Q1 output || 50 ÃÂµs turn-on, turn-off, Q2 to Q3 output || 300 ÃÂµs turn-on, turn-off, other terminals output

Shock Resistance 147 m/sÃÂ² 11 ms

Slots 2

Standards EN/IEC 60664-1 || EN/IEC 61010-2-201 || EN/IEC 61131-2

Storage Altitude 0-3000 m

Supply serial 1)serial link supply 5 V, <200 mA

Supply Voltage Limits 20.4-28.8 V

Surge Withstand 2 kV power lines (AC) common mode EN/IEC 61000-4-5 || 2 kV relay output common mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 || 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 || 1 kV relay output differential mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) common mode EN/IEC 61000-4-5

Time For Event Task 60 ÃÂµs response time

Timers Programmable

Transmission Rate 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB

Vibration Resistance 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting

Voltage State 0 Guaranteed <= 5 V input

Voltage State 1 Guaranteed >= 15 V input

Width 2.75 in

[Us] Rated Supply Voltage 24 V DC
