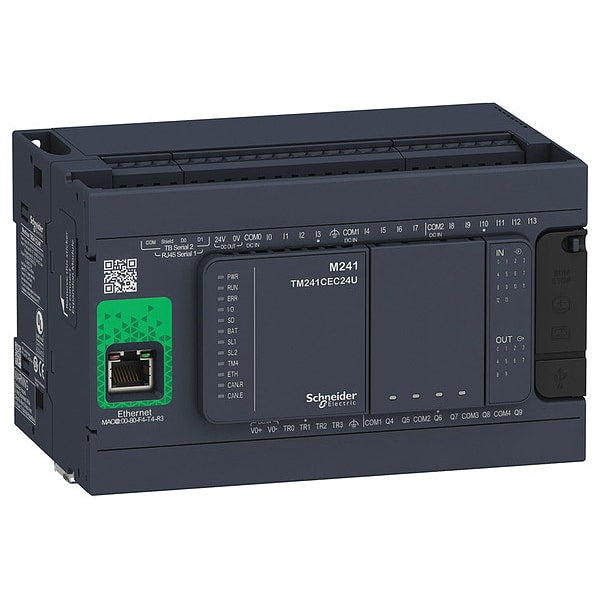

Logic Controller, 100 to 240VAC

SKU
Brand Schneider Electric
Categories
Description Logic Controller, Input Voltage 100 to 240V AC, Output Type Relay, 2 A Amps, Ethernet RJ45, Non isolated serial link serial 1 RJ45 RS232/RS485, Non isolated serial link serial 2 removable screw terminal block RS485, USB port mini B USB 2.0 Slots, Number of Inputs 14, Number of Outputs 4, Timers Programmable, Yes Clock, No Display Display, Port Type Ethernet, Non isolated serial link serial, USB port mini, Memory 64 MB, 8 MB
graingerSKU: , mscSKU: , zoro_no: G3466864, mongo_id: 65bbe8819a749db822796448

Web Price

$892.49 / each

Qty

Product Details

Accuracy +/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output

Ambient Air Temperature For Operation -10-50 ÃÂ°C vertical installation) || -10-55 ÃÂ°C horizontal installation)

Ambient Air Temperature For Storage -25-70 ÃÂ°C

Amps 2 A

Application Structure 8 external event tasks || 3 cyclic master tasks + 1 freewheeling task || 8 event tasks || 4 cyclic master tasks

Backup Time 2 years 25 ÃÂ°C

Battery Type BR2032 lithium non-rechargeable 4 year(s)

Clock Yes

Clock Drift <= 60 s/month 25-25 ÃÂ°C

Communication Port Protocol non isolated serial link Modbus master/slave

Communication Service FDR || DHCP server via TM4 Ethernet switch network module || DHCP client embedded Ethernet port || SMS notifications || updating firmware || SNMP client/server || programming || NGVL || monitoring || IEC VAR ACCESS || FTP client/server || downloading || SQL client || Modbus TCP client I/O scanner || Ethernet/IP originator I/O scanner embedded Ethernet port || Ethernet/IP target, Modbus TCP server and Modbus TCP slave || send and receive email from the controller based on TCP/UDP library || web server (WebVisu & XWeb system) || OPC UA server || DNS client

Configurable Filtering Time 1 ÃÂµs fast input

Control Signal Type A/B 100 kHz fast input (HSC mode) || pulse/direction 200 kHz fast input (HSC mode) || single phase 200 kHz fast input (HSC mode)

Counting Input Number 4 fast input (HSC mode) 200 kHz || 14 standard input 1 kHz

Country of Origin (subject to change) Indonesia

Cycle Time 10 ms 16 EtherNet/IP || 64 ms 64 Modbus TCP

Data Backed Up 128 MB built-in flash memory backup of user programs

Data Storage Equipment <= 16 GB SD card optional)

Depth 3.74 in

Description/Special Features Controller M241 24 IO relay Ethernet, protection type Short-circuit protection transistor output, Short-circuit and overload protection with automatic reset transistor output, Reverse polarity protection transistor output, Without protection relay output, application structure 8 external event tasks, 3 cyclic master tasks + 1 freewheeling task, 8 event tasks, 4 cyclic master tasks, mounting support Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit, relative humidity 10ÃÂ¿95 %, without condensation in operation), 10ÃÂ¿95 %, without condensation in storage), operating altitude 0...6561.68 ft (0...2000 m), Discount Schedule MSX, Environmental Disclosure Product Environmental Profile

Discrete I/O Number 24

Discrete Input Current 5 mA input

Discrete Input Logic sink or source

Discrete Input Number 14 , discrete input 8 fast input IEC 61131-2 Type 1

Discrete Input Voltage 24 V

Discrete Input Voltage Type DC

Discrete Output Current 2 A relay output Q4 to Q9) || 0.1 A fast output (PTO mode) TR0 to TR3) || 0.5 A transistor output TR0 to TR3)

Discrete Output Logic positive logic (source)

Discrete Output Number 6 relay || 4 transistor 4 fast output

Discrete Output Type relay || transistor

Discrete Output Voltage 5 to 125 V DC relay output || 5 to 250 V AC relay output || 24 V DC transistor output

Display No Display

Electrical Connection removable screw terminal block for inputs and outputs pitch 5.08 mm) || removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)

Electromagnetic Emission conducted emissions 120 to 69 dBÃÂµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBÃÂÃÂ¼V/m QP power lines)1.5-30 MHz EN/IEC 55011 || conducted emissions 79 dBÃÂÃÂ¼V/m QP/66 dBÃÂÃÂ¼V/m AV power lines)0.15-0.5 MHz EN/IEC 55011 || conducted emissions 73 dBÃÂÃÂ¼V/m QP/60 dBÃÂÃÂ¼V/m AV power lines)0.5-300 MHz EN/IEC 55011 || radiated emissions 40 dBÃÂÃÂ¼V/m QP class A 10 m)30-230 MHz EN/IEC 55011 || conducted emissions 79 to 63 dBÃÂÃÂ¼V/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBÃÂÃÂ¼V/m QP class A 10 m)230-1000 MHz EN/IEC 55011

Execution Time For 1 Kinstruction 0.3 ms event and periodic task || 0.7 ms other instruction

Height 3.54 in

Immunity To Microbreaks 10 ms

Input Impedance 4.7 kOhm input

Input Voltage 100 to 240V AC

Insulation between supply and internal logic 500 V AC || non-insulated between supply and ground

Integrated Connection Type non isolated serial link serial 1 RJ45 RS232/RS485 || non isolated serial link serial 2 removable screw terminal block RS485 || USB port mini B USB 2.0 || Ethernet RJ45

Ip Degree Of Protection IP20 with protective cover in place

Local Signalling for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for I/O error (I/O) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for bus fault on TM4 (TM4) 1 LED (red) || for I/O state 1 LED per channel (green) || for Ethernet port activity 1 LED (green)

Marking CE

Maximum Cable Distance Between Devices unshielded cable <50 m input || shielded cable <10 m fast input || unshielded cable <50 m output || shielded cable <3 m fast output

Maximum Number Of Connections 8 Modbus server || 8 SoMachine protocol || 10 web server || 4 FTP server || 16 Ethernet/IP target || 8 Modbus client

Maximum Number Of I/O Expansion Module 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Maximum Output Frequency 1 kHz transistor output || 20 kHz fast output (PWM mode) || 100 kHz fast output (PLS mode)

Memory 64 MB, 8 MB

Memory capacity 8 MB program || 64 MB system memory RAM

Mounting Support top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Network Frequency 50/60 Hz

Number of Inputs 14

Number of Outputs 4

Number Of Slave 64 Modbus TCP || 16 EtherNet/IP

Operating Altitude 0 to 6561.68 ft (0 to 2000 m)

Output Type Relay

Output Voltage Limits 125 V DC relay output || 30 V DC transistor output || 277 V AC relay output

Package Quantity 1

Pollution Degree 2

Port Ethernet 10BASE-T/100BASE-TX - 1 copper cable

Port Type Ethernet, Non isolated serial link serial, USB port mini

Positioning Functions PTO 4 100 kHz)

Product Certifications RCM || CSA || IACS E10 || cULus

Product Or Component Type logic controller

Protection Type short-circuit protection transistor output || short-circuit and overload protection with automatic reset transistor output || reverse polarity protection transistor output || without protection relay output

Realtime Clock with

Relative Humidity 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Reset Time 10 ms automatic reset output || 12 s automatic reset fast output

Resistance To Conducted Disturbances 10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V 0.1 to 80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields 10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3

Resistance To Electrostatic Discharge 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2

Resistance To Fast Transients 2 kV EN/IEC 61000-4-4 power lines) || 2 kV EN/IEC 61000-4-4 relay output) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link) || 1 kV EN/IEC 61000-4-4 input) || 1 kV EN/IEC 61000-4-4 transistor output)

Response Time 50 ÃÂµs turn-on, I0 to I13 input

Sensor Power Supply 24-24 V DC 400 mA supplied by the controller

Shock Resistance 15 gn 11 ms

Slots Ethernet RJ45, Non isolated serial link serial 1 RJ45 RS232/RS485, Non isolated serial link serial 2 removable screw terminal block RS485, USB port mini B USB 2.0

Standards ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || EN/IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 1604 || UL 508

Storage Altitude 0-3000 m

Supply serial 1)serial link supply 5 V, <200 mA

Supply Voltage Limits 85-264 V

Surge Withstand 2 kV power lines (AC) common mode EN/IEC 61000-4-5 || 2 kV relay output common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 || 1 kV relay output differential mode EN/IEC 61000-4-5 || 1 kV input common mode EN/IEC 61000-4-5 || 1 kV transistor output common mode EN/IEC 61000-4-5

Timers Programmable

Transmission Rate 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB || 10/100 Mbit/s Ethernet

Vibration Resistance 3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting

Voltage State 0 Guaranteed <= 5 V input

Voltage State 1 Guaranteed >= 15 V input

Web Services web server

Width 5.91 in

[Us] Rated Supply Voltage 100 to 240 V AC
