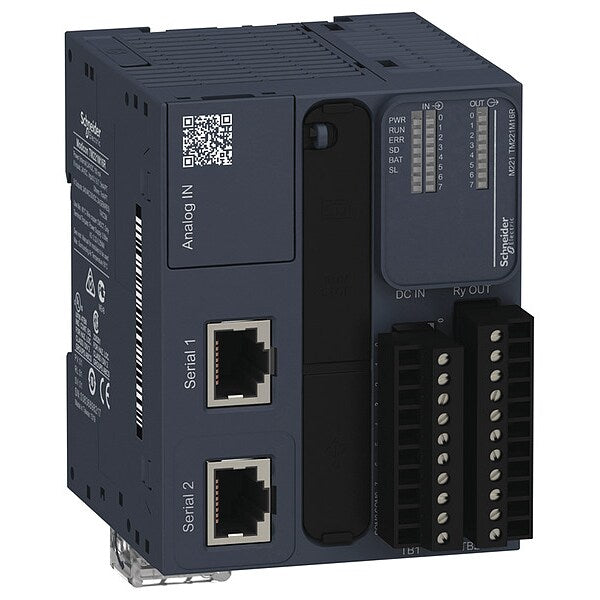

Name: Logic Controller, 24VDC, Relay Output
Brand: Schneider Electric
SKU: G3459155
Price: 487.49 USD
Availability: InStock

Home / Logic Controller, 24VDC, Relay Output

Logic Controller, 24VDC, Relay Output

SKU
Brand Schneider Electric
Categories
Description Logic Controller, Input Voltage 24V AC/DC, Output Type Relay, 2 A Amps, Non isolated serial link serial 1 RJ45 RS485, Non isolated serial link serial 2 RJ45 RS232/RS485, USB port mini B USB 2.0 Slots, Number of Inputs 8, Number of Outputs 8, Counters 255, Timers Programmable, Yes Clock, No Display Display, Port Type Non isolated serial link serial, USB port mini B, Memory 256 KB
graingerSKU: 55WT36, mscSKU: , zoro_no: G3459155, mongo_id: 65bbe6903aaddbd5a903b7a2

Web Price

$487.49 / each

Qty

Product Details

Absolute Accuracy Error +/- 1 % of full scale analog input

Ambient Air Temperature For Operation -10-55 ÃÂ°C horizontal installation) || -10-35 ÃÂ°C vertical installation)

Ambient Air Temperature For Storage -25-70 ÃÂ°C

Amps 2 A

Analogue Input Number 2 0 to 10 V

Analogue Input Resolution 10 bits

Application Structure 1 configurable freewheeling/cyclic master task || 1 cyclic auxiliary task || 8 interrupt tasks

Backup Time 1 year 25 ÃÂ°C by interruption of power supply)

Battery Type BR2032 lithium non-rechargeable 4 year(s)

Clock Yes

Clock Drift <= 30 s/month 25-25 ÃÂ°C

Communication Port Protocol USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network

Communication Service Modbus slave || Modbus master

Configurable Filtering Time 0 ms input || 3 ms input || 12 ms input

Control Signal Type pulse/direction || A/B || single phase

Conversion Time 1 ms per channel + 1 controller cycle time analog input

Counters 255

Counting Input Number 4 fast input (HSC mode) 100 kHz 32 bits

Country of Origin (subject to change) Multiple

Data Backed Up 256 kB built-in flash memory backup of application and data

Data Storage Equipment 2 GB SD card optional)

Depth 2.76 in

Description/Special Features Controller M221 16 IO relay, protection type Without protection 5 A, application structure 1 configurable freewheeling/cyclic master task, 1 cyclic auxiliary task 8 interrupt tasks, mounting support Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit, environmental characteristic Ordinary and hazardous location, relative humidity 10ÃÂ¿95 %, without condensation in operation), 10ÃÂ¿95 %, without condensation in storage), operating altitude 0...6561.68 ft (0...2000 m), Discount Schedule MSX, Environmental Disclosure Product Environmental Profile

Discrete I/O Number 16

Discrete Input Current 7 mA discrete input || 5 mA fast input

Discrete Input Logic sink or source (positive/negative)

Discrete Input Number 8 , discrete input IEC 61131-2 Type 1

Discrete Input Voltage 24 V

Discrete Input Voltage Type DC

Discrete Output Current 2A

Discrete Output Number 8 relay

Discrete Output Type relay normally open

Discrete Output Voltage 5 to 125 V DC || 5 to 250 V AC

Display No Display

Electrical Connection terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal || removable screw terminal block, 10 for inputs || removable screw terminal block, 11 for outputs

Electrical Durability 100000 cycles AC-12, 120 V, 240 VA, resistive || 100000 cycles AC-12, 240 V, 480 VA, resistive || 300000 cycles AC-12, 120 V, 80 VA, resistive || 300000 cycles AC-12, 240 V, 160 VA, resistive || 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive || 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive || 100000 cycles DC-12, 24 V, 48 W, resistive || 300000 cycles DC-12, 24 V, 16 W, resistive || 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) || 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)

Electromagnetic Emission conducted emissions 79 dBÃÂÃÂ¼V/m QP/66 dBÃÂÃÂ¼V/m AV power lines (AC))0.15-0.5 MHz EN/IEC 55011 || conducted emissions 73 dBÃÂÃÂ¼V/m QP/60 dBÃÂÃÂ¼V/m AV power lines (AC))0.5-300 MHz EN/IEC 55011 || conducted emissions 120 to 69 dBÃÂµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBÃÂÃÂ¼V/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBÃÂÃÂ¼V/m QP class A 10 m)30-230 MHz EN/IEC 55011 || conducted emissions 79 to 63 dBÃÂÃÂ¼V/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBÃÂÃÂ¼V/m QP class A 10 m)200-1000 MHz EN/IEC 55011

Environmental Characteristic ordinary and hazardous location

Exct Time For Event Task 60 ÃÂµs response time

Execution Time For 1 Kinstruction 0.3 ms event and periodic task || 0.7 ms other instruction

Execution Time Per Instruction 0.2 ÃÂµs Boolean

Height 3.54 in

Immunity To Microbreaks 10 ms

Input Impedance 100 kOhm analog input || 3.4 kOhm input || 4.9 kOhm fast input

Input Voltage 24V AC/DC

Inrush Current 35 A

Insulation between input and internal logic 500 V AC || between fast input and internal logic 500 V AC || non-insulated between inputs || between output and internal logic 500 V AC || between output groups 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs

Integrated Connection Type USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS485 || non isolated serial link serial 2 RJ45 RS232/RS485

Ip Degree Of Protection IP20 with protective cover in place

Local Signalling for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for I/O state 1 LED per channel (green)

Lsb Value 10 mV

Marking CE

Maximum Cable Distance Between Devices shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input

Maximum Current Per Output Common 7A

Maximum Number Of I/O Expansion Module 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Maximum Power Consumption In W 22.5 W 24 V with max number of I/O expansion module) || 3.6 W 24 V without I/O expansion module)

Maximum Size Of Object Areas 255 %TM timers || 8000 %MW memory words || 255 %C counters || 512 %M memory bits || 512 %KW constant words

Mechanical Durability 20000000 cycles relay output

Memory 256 KB

Memory capacity 256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM

Minimum Load 1 mA 5 V DC relay output

Mounting Support top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Number of Inputs 8

Number of Outputs 8

Operating Altitude 0 to 6561.68 ft (0 to 2000 m)

Output Type Relay

Output Voltage Limits 125 V DC || 277 V AC

Package Quantity 1

Permitted Overload On Inputs +/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input

Pollution Degree <= 2

Port Type Non isolated serial link serial, USB port mini B

Power Supply Output Current 0.52-0.52 A 5 V expansion bus || 0.46-0.46 A 24 V expansion bus

Product Certifications DNV-GL || ABS || LR || cULus || CSA || RCM || IACS E10 || EAC

Product Or Component Type logic controller

Protection Type without protection 5 A

Realtime Clock with

Regulation Loop adjustable PID regulator up to 14 simultaneous loops

Relative Humidity 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Reset Time 1 s

Resistance To Conducted Disturbances 10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V 0.1 to 80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields 10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 to 2.7 GHz EN/IEC 61000-4-3

Resistance To Electrostatic Discharge 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2

Resistance To Fast Transients 2 kV EN/IEC 61000-4-4 power lines) || 2 kV EN/IEC 61000-4-4 relay output) || 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link)

Resistance To Magnetic Fields 30 A/m 50/60 Hz EN/IEC 61000-4-8

Response Time 35 ÃÂµs turn-off, I2 to I5 input || 10 ms turn-on output || 10 ms turn-off output || 5 ÃÂµs turn-on, I0, I1, I6, I7 fast input || 35 ÃÂµs turn-on, other terminals input || 5 ÃÂµs turn-off, I0, I1, I6, I7 fast input || 100 ÃÂµs turn-off, other terminals input

Shock Resistance 98 m/sÃÂ² 11 ms

Slots Non isolated serial link serial 1 RJ45 RS485, Non isolated serial link serial 2 RJ45 RS232/RS485, USB port mini B USB 2.0

Standards EN/IEC 61131-2 || EN/IEC 60664-1 || EN/IEC 61010-2-201

Storage Altitude 0-3000 m

Supply serial 1)serial link supply 5 V, <200 mA

Supply Voltage Limits 20.4-28.8 V

Surge Withstand 2 kV power lines (AC) common mode EN/IEC 61000-4-5 || 2 kV relay output common mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 || 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 || 1 kV relay output differential mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) common mode EN/IEC 61000-4-5

Switching Frequency 20 switching operations/minute with maximum load

Timers Programmable

Transmission Rate 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB

Vibration Resistance 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting

Voltage State 0 Guaranteed <= 5 V input

Voltage State 1 Guaranteed >= 15 V input

Width 2.76 in

[Us] Rated Supply Voltage 24 V DC
