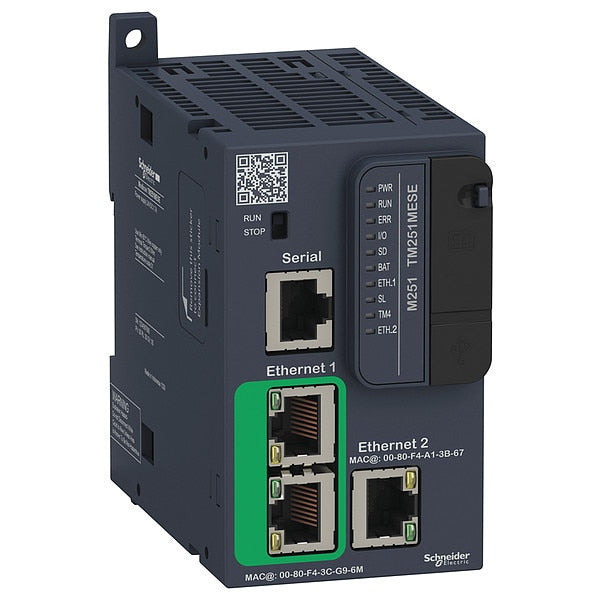

Logic Controller, 24VDC

Logic Controller, 24VDC

  • Schneider Electric
  • Logic Controller, Input Voltage 24V AC/DC, Dual-port Ethernet 1 RJ45, Ethernet port Ethernet 2 RJ45, Non isolated serial link serial RJ45 RS232/RS485, USB port mini B USB 2.0 Slots, Timers Programmable, Yes Clock, No Display Display, Port Type Dual-port Ethernet, Ethernet, Non isolated serial, USB port mini, Memory 64 MB, 8 MB
Web Price
$961.24 / each
Qty

Product Details

-10-35 °C vertical installation) || -10-55 °C horizontal installation)
-25-70 °C
4 cyclic master tasks || 8 event tasks || 3 cyclic master tasks + 1 freewheeling task || 8 external event tasks
2 years 25 °C
BR2032 lithium non-rechargeable 4 year(s)
Yes
<= 60 s/month 25-25 °C
USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
downloading || IEC VAR ACCESS || Modbus TCP client || Modbus TCP server || Modbus TCP slave device || monitoring || NGVL || programming || updating firmware || SMS notifications || DHCP client Eth1) || DHCP server Eth2) || Ethernet/IP originator Eth2) || Ethernet/IP target Eth1, Eth2) || Ethernet/IP scanner Eth2) || Modbus TCP I/O Scanner and Messaging Eth2) || FDR || FTP client/server || SNMP client/server || SQL client || send and receive email from the controller based on TCP/UDP library || web server (WebVisu & XWeb system) || OPC UA server || DNS client
Indonesia
10 ms 16 EtherNet/IP || 64 ms 64 Modbus TCP
128 MB built-in flash memory backup of user programs
<= 16 GB SD card optional)
3.74 in
Controller M251 2x Ethernet, application structure 4 cyclic master tasks, 8 event tasks, 3 cyclic master tasks + 1 freewheeling task, 8 external event tasks, mounting support Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit, relative humidity 10¿95 %, without condensation in operation), 10¿95 %, without condensation in storage), operating altitude 0...6561.68 ft (0...2000 m), Discount Schedule MSX, Environmental Disclosure Product Environmental Profile
No Display
removable screw terminal block power supply pitch 5.08 mm)
conducted emissions 120 to 69 dBµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || conducted emissions 79 to 63 dBμV/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
0.3 ms event and periodic task || 0.7 ms other instruction
3.54 in
10 ms
24V AC/DC
50 A
non-insulated between supply and internal logic || between supply and ground 500 V AC
USB port mini B USB 2.0 || non isolated serial link serial RJ45 RS232/RS485 || dual-port Ethernet 1 RJ45 || Ethernet port Ethernet 2 RJ45
IP20 with protective cover in place
for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for I/O error (I/O) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL 1 LED (green) || for bus fault on TM4 (TM4) 1 LED (red) || for Ethernet activity (ETH1) 1 LED (green) || for Ethernet activity (ETH2) 1 LED (green)
CE
8 Modbus server || 8 Modbus client || 16 Ethernet/IP target || 4 FTP server || 10 web server || 8 SoMachine protocol
7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
64 MB, 8 MB
8 MB program || 64 MB system memory RAM
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
16 EtherNet/IP || 64 Modbus TCP
0 to 6561.68 ft (0 to 2000 m)
1
2
Ethernet 1 10BASE-T/100BASE-TX - 2 copper cable || Ethernet 2 10BASE-T/100BASE-TX - 1 copper cable
Dual-port Ethernet, Ethernet, Non isolated serial, USB port mini
32.6-40.4 W with max number of I/O expansion module)
cULus || CSA
logic controller
with
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V 0.1 to 80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
2 kV EN/IEC 61000-4-4 power lines) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link)
15 gn 11 ms
Dual-port Ethernet 1 RJ45, Ethernet port Ethernet 2 RJ45, Non isolated serial link serial RJ45 RS232/RS485, USB port mini B USB 2.0
ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || EN/IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 1604 || UL 508
0-3000 m
serial)serial link supply 5 V, <200 mA
20.4-28.8 V
1 kV shielded cable common mode EN/IEC 61000-4-5 || 1 kV power lines common mode EN/IEC 61000-4-5 || 0.5 kV power lines differential mode EN/IEC 61000-4-5
Programmable
1.2 to 115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB
3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting
web server
2.13 in
24 V DC
