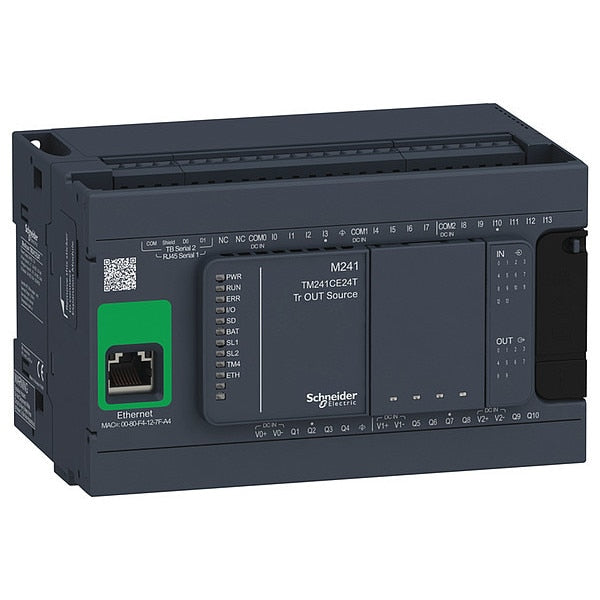

Logic Controller, 24VDC, Transistor Output
Web Price
$892.49
/ each
Product Details
+/- 0.1 % 0.02-0.1 kHz fast output || +/- 1 % 0.1-1 kHz fast output
-10-50 ðC vertical installation) || -10-55 ðC horizontal installation)
-25-70 ðC
0.1 A, 0.5 A
8 external event tasks || 8 event tasks || 3 cyclic master tasks + 1 freewheeling task || 4 cyclic master tasks
2 years 25 ðC
BR2032 lithium non-rechargeable 4 year(s)
Yes
<= 60 s/month 25-25 ðC
non isolated serial link Modbus master/slave
FDR || DHCP server via TM4 Ethernet switch network module || DHCP client embedded Ethernet port || SMS notifications || updating firmware || SNMP client/server || programming || NGVL || monitoring || IEC VAR ACCESS || FTP client/server || downloading || SQL client || Modbus TCP client I/O scanner || Ethernet/IP originator I/O scanner embedded Ethernet port || Ethernet/IP target, Modbus TCP server and Modbus TCP slave || send and receive email from the controller based on TCP/UDP library || web server (WebVisu & XWeb system) || OPC UA server || DNS client
1 õs fast input || 12 ms fast input || 0 ms input || 1 ms input || 4 ms input || 12 ms input
A/B 100 kHz fast input (HSC mode) || pulse/direction 200 kHz fast input (HSC mode) || single phase 200 kHz fast input (HSC mode)
4 fast input (HSC mode) 200 kHz || 14 standard input 1 kHz
Indonesia
10 ms 16 EtherNet/IP || 64 ms 64 Modbus TCP
128 MB built-in flash memory backup of user programs
<= 16 GB SD card optional)
3.74 in
Controller M241 24 IO transistor PNP Ethernet, protection type Short-circuit protection, Short-circuit and overload protection with automatic reset, Reverse polarity protection fast output, application structure 8 external event tasks, 8 event tasks, 3 cyclic master tasks + 1 freewheeling task, 4 cyclic master tasks, mounting support Top hat type TH35-15 rail IEC 60715, Top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit, relative humidity 10ÿ95 %, without condensation in operation), 10ÿ95 %, without condensation in storage), operating altitude 0...6561.68 ft (0...2000 m), Discount Schedule MSX, Environmental Disclosure Product Environmental Profile
24
5 mA input || 10.7 mA fast input
sink or source
14 , discrete input 8 fast input IEC 61131-2 Type 1
24 V
DC
0.5 A transistor output Q0 to Q9) || 0.1 A fast output (PTO mode) Q0 to Q3)
positive logic (source)
10 transistor 4 fast output
transistor
24 V DC transistor output
No Display
removable screw terminal block for inputs and outputs pitch 5.08 mm) || removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
conducted emissions 120 to 69 dBõV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBÃÂüV/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBÃÂüV/m QP class A30-230 MHz EN/IEC 55011 || conducted emissions 79 to 63 dBÃÂüV/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBÃÂüV/m QP class A230-1000 MHz EN/IEC 55011
0.3 ms event and periodic task || 0.7 ms other instruction
3.54 in
10 ms
4.7 kOhm input || 2.81 kOhm fast input
24V AC/DC
50 A
between supply and internal logic 500 V AC || non-insulated between supply and ground || between input and internal logic 500 V AC || non-insulated between inputs || between fast input and internal logic 500 V AC || between output and internal logic 500 V AC || non-insulated between outputs || between fast output and internal logic 500 V AC || between output groups 500 V AC
non isolated serial link serial 1 RJ45 RS232/RS485 || non isolated serial link serial 2 removable screw terminal block RS485 || USB port mini B USB 2.0 || Ethernet RJ45
IP20 with protective cover in place
for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for I/O error (I/O) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for SL1 1 LED (green) || for SL2 1 LED (green) || for bus fault on TM4 (TM4) 1 LED (red) || for I/O state 1 LED per channel (green) || for Ethernet port activity 1 LED (green)
CE
unshielded cable <50 m input || shielded cable <10 m fast input || unshielded cable <50 m output || shielded cable <3 m fast output
2 A Q0 to Q3 fast output || 2 A Q4 to Q7 output || 1 A Q8 to Q9 output
5 õA output
8 Modbus server || 8 SoMachine protocol || 10 web server || 4 FTP server || 16 Ethernet/IP target || 8 Modbus client
7 (local I/O-Architecture) || 14 (remote I/O-Architecture)
20 kHz fast output (PWM mode) || 100 kHz fast output (PLS mode) || 1 kHz output
<2.4 W
<1 V
64 MB, 8 MB
8 MB program || 64 MB system memory RAM
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
14
4
64 Modbus TCP || 16 EtherNet/IP
0 to 6561.68 ft (0 to 2000 m)
Transistor
30 V DC
1
2
10BASE-T/100BASE-TX - 1 copper cable
Ethernet, Non isolated serial link serial, USB port mini
PTO 4 100 kHz) || PTO 4 transistor output 1 kHz)
32.6-40.4 W with max number of I/O expansion module)
cULus || IACS E10 || RCM || CSA
logic controller
short-circuit protection || short-circuit and overload protection with automatic reset || reverse polarity protection fast output
with
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
10 ms automatic reset output || 12 s automatic reset fast output
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V 0.1 to 80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
2 kV EN/IEC 61000-4-4 power lines) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link) || 1 kV EN/IEC 61000-4-4 input) || 1 kV EN/IEC 61000-4-4 transistor output)
50 õs turn-on, I0 to I13 input || 50 õs turn-off, I0 to I13 input || <= 2 õs turn-on, I0 to I7 fast input || <= 2 õs turn-off, I0 to I7 fast input || <= 34 õs turn-on, Q0 to Q9 output || <= 250 õs turn-off, Q0 to Q9 output || <= 2 õs turn-on, Q0 to Q3 fast output || <= 2 õs turn-off, Q0 to Q3 fast output
15 gn 11 ms
Ethernet RJ45, Non isolated serial link serial 1 RJ45 RS232/RS485, Non isolated serial link serial 2 removable screw terminal block RS485, USB port mini B USB 2.0
ANSI/ISA 12-12-01 || CSA C22.2 No 142 || CSA C22.2 No 213 || EN/IEC 61131-2:2007 || Marine specification (LR, ABS, DNV, GL) || UL 1604 || UL 508
0-3000 m
serial 1)serial link supply 5 V, <200 mA
20.4-28.8 V
1 kV power lines (DC) common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 || 1 kV relay output differential mode EN/IEC 61000-4-5 || 1 kV input common mode EN/IEC 61000-4-5 || 1 kV transistor output common mode EN/IEC 61000-4-5
Programmable
1.2 to 115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s 3-3 m USB || 10/100 Mbit/s Ethernet
3.5 mm 5-8.4 Hz symmetrical rail || 3 gn 8.4-150 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 3 gn 8.4-150 Hz panel mounting
<= 5 V input
>= 15 V input
web server
5.91 in
24 V DC
