Home / Logic Controller, 2A, 16 Output, 100-240VAC

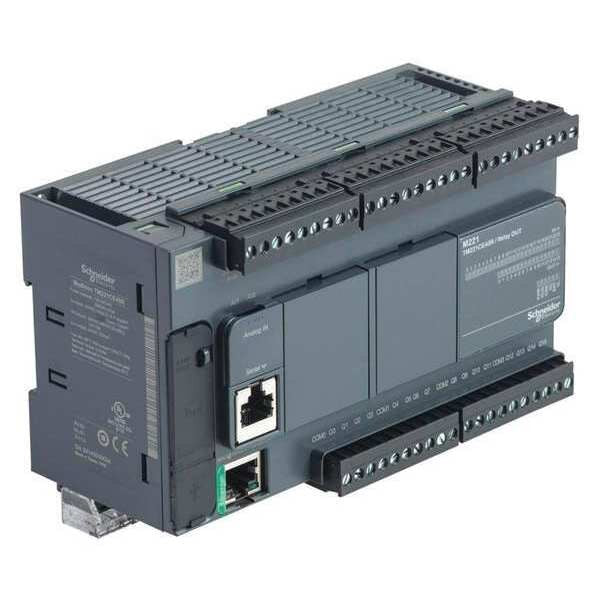

Logic Controller, 2A, 16 Output, 100-240VAC

SKU
Brand Schneider Electric
Categories
Description Logic Controller, Input Voltage 100 to 240V AC, Output Type Relay, 2 A Amps, 2 Slots, Number of Inputs 2 Analog, 24 Digital, Number of Outputs 16, Counters 4, Timers Programmable, Yes Clock, LED Display, Port Type Ethernet(10/100 mbps), Modbus Serial (1xRJ45 - RS232/RS485), SD Card, USB Mini (Prog.), Memory 256 KB, Depth 3 in, Height 4.17 in, Width 6.42 in
graingerSKU: 35ZV71, mscSKU: , zoro_no: G0270238, mongo_id: 65bbe91622d7a989a993368b

Web Price

$583.74 / each

Qty

Product Details

Absolute Accuracy Error +/- 1 % of full scale analog input

Ambient Air Temperature For Operation -10-55 ÃÂ°C horizontal installation) || -10-35 ÃÂ°C vertical installation)

Ambient Air Temperature For Storage -25-70 ÃÂ°C

Amps 2 A

Analogue Input Number 2 0 to 10 V

Analogue Input Resolution 10 bits

Backup Time 1 year 25 ÃÂ°C by interruption of power supply)

Battery Type BR2032 lithium non-rechargeable 4 year(s)

Clock Yes

Clock Drift <= 30 s/month 25-25 ÃÂ°C

Communication Port Protocol USB port USB - SoMachine-Network || non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network || Ethernet

Communication Service DHCP client || Modbus TCP client || Ethernet/IP adapter || Modbus TCP server || Modbus TCP slave device

Configurable Filtering Time 0 ms input || 3 ms input || 12 ms input

Control Signal Type single phase || A/B || pulse/direction

Conversion Time 1 ms per channel + 1 controller cycle time analog input

Counter Function Single phase; A/B; Pulse/direction

Counters 4

Counting Input Number 4 fast input (HSC mode) 100 kHz 32 bits

Country of Origin (subject to change) Taiwan, Province of China

Data Backed Up 256 kB built-in flash memory backup of application and data

Data Storage Equipment 2 GB SD card optional)

Depth 3 in

Discrete I/O Number 40

Discrete Input Current 7 mA discrete input || 5 mA fast input

Discrete Input Logic sink or source (positive/negative)

Discrete Input Number 24 , discrete input IEC 61131-2 Type 1

Discrete Input Voltage 24 V

Discrete Input Voltage Type DC

Discrete Output Current 2A

Discrete Output Number 16 relay

Discrete Output Type relay normally open

Discrete Output Voltage 5 to 125 V DC || 5 to 250 V AC

Display LED

Electrical Connection removable screw terminal block for inputs || removable screw terminal block for outputs || terminal block, 3 for connecting the 24 V DC power supply || connector, 4 for analogue inputs || mini B USB 2.0 connector for a programming terminal

Electrical Durability 100000 cycles AC-12, 120 V, 240 VA, resistive || 100000 cycles AC-12, 240 V, 480 VA, resistive || 300000 cycles AC-12, 120 V, 80 VA, resistive || 300000 cycles AC-12, 240 V, 160 VA, resistive || 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive || 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive || 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive || 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive || 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive || 100000 cycles DC-12, 24 V, 48 W, resistive || 300000 cycles DC-12, 24 V, 16 W, resistive || 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) || 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)

Electromagnetic Emission conducted emissions 79 dBÃÂÃÂ¼V/m QP/66 dBÃÂÃÂ¼V/m AV power lines (AC))0.15-0.5 MHz EN/IEC 55011 || conducted emissions 73 dBÃÂÃÂ¼V/m QP/60 dBÃÂÃÂ¼V/m AV power lines (AC))0.5-300 MHz EN/IEC 55011 || conducted emissions 120 to 69 dBÃÂµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBÃÂÃÂ¼V/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBÃÂÃÂ¼V/m QP class A 10 m)30-230 MHz EN/IEC 55011 || conducted emissions 79 to 63 dBÃÂÃÂ¼V/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBÃÂÃÂ¼V/m QP class A 10 m)200-1000 MHz EN/IEC 55011

Environmental Characteristic ordinary and hazardous location

Exct Time For Event Task 60 ÃÂµs response time

Execution Time For 1 Kinstruction 0.3 ms event and periodic task

Execution Time Per Instruction 0.2 ÃÂµs Boolean

Height 4.17 in

Immunity To Microbreaks 10 ms

Input Impedance 3.4 kOhm discrete input || 100 kOhm analog input || 4.9 kOhm fast input

Input Voltage 100 to 240V AC

Inrush Current 40 A

Insulation between input and internal logic 500 V AC || non-insulated between analogue input and internal logic || non-insulated between analogue inputs || between supply and ground 1500 V AC || between sensor power supply and ground 500 V AC || between input and ground 500 V AC || between output and ground 1500 V AC || between supply and internal logic 2300 V AC || between sensor power supply and internal logic 500 V AC || between output and internal logic 2300 V AC || between Ethernet terminal and internal logic 500 V AC || between supply and sensor power supply 2300 V AC

Integrated Connection Type USB port mini B USB 2.0 || non isolated serial link serial 1 RJ45 RS232/RS485 || Ethernet RJ45

Ip Degree Of Protection IP20 with protective cover in place

Local Signalling for PWR 1 LED (green) || for RUN 1 LED (green) || for module error (ERR) 1 LED (red) || for SD card access (SD) 1 LED (green) || for BAT 1 LED (red) || for I/O state 1 LED per channel (green) || for SL 1 LED (green) || for ACT Ethernet network activity (green) || for Link (Link Status) Ethernet network link (yellow)

Lsb Value 10 mV

Marking CE

Maximum Cable Distance Between Devices shielded cable <10 m fast input || unshielded cable <30 m output || unshielded cable <30 m digital input || unshielded cable <1 m analog input

Maximum Current Per Output Common 7A

Maximum Number Of I/O Expansion Module 7 (local I/O-Architecture) || 14 (remote I/O-Architecture)

Maximum Power Consumption In Va 70 VA 100 to 240 V with max number of I/O expansion module || 41 VA 100 to 240 V without I/O expansion module

Maximum Size Of Object Areas 8000 %MW memory words || 255 %TM timers || 512 %KW constant words || 255 %C counters || 512 %M memory bits

Mechanical Durability 20000000 cycles relay output

Memory 256 KB

Memory capacity 256 kB user application and data RAM 10000 instructions || 256 kB internal variables RAM

Minimum Load 1 mA 5 V DC relay output

Mounting Support top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit

Network Frequency 50/60 Hz

Number of Inputs 2 Analog, 24 Digital

Number of Outputs 16

Operating Altitude 0 to 6561.68 ft (0 to 2000 m)

Output Type Relay

Output Voltage Limits 125 V DC || 277 V AC

Package Quantity 1

Permitted Overload On Inputs +/- 30 V DC 5 min maximum)analog input || +/- 13 V DC permanent)analog input

Pollution Degree <= 2

Port Ethernet 10BASE-T/100BASE-TX 1 100 m copper cable

Port Type Ethernet(10/100 mbps), Modbus Serial (1xRJ45 - RS232/RS485), SD Card, USB Mini (Prog.)

Power Supply Output Current 0.52-0.52 A 5 V expansion bus || 0.24-0.24 A 24 V expansion bus

Product Certifications DNV-GL || EAC || ABS || cULus || LR || RCM || CSA || IACS E10

Product Or Component Type logic controller

Protection Type without protection 5 A

Realtime Clock with

Regulation Loop adjustable PID regulator up to 14 simultaneous loops

Relative Humidity 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)

Reset Time 1 s

Resistance To Conducted Disturbances 10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V 0.1 to 80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields 10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 to 2.7 GHz EN/IEC 61000-4-3

Resistance To Electrostatic Discharge 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2

Resistance To Fast Transients 2 kV EN/IEC 61000-4-4 power lines) || 2 kV EN/IEC 61000-4-4 relay output) || 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link)

Resistance To Magnetic Fields 30 A/m 50/60 Hz EN/IEC 61000-4-8

Response Time 35 ÃÂµs turn-off, I2 to I5 input || 10 ms turn-on output || 10 ms turn-off output || 5 ÃÂµs turn-on, I0, I1, I6, I7 fast input || 35 ÃÂµs turn-on, other terminals input || 5 ÃÂµs turn-off, I0, I1, I6, I7 fast input || 100 ÃÂµs turn-off, other terminals input

Sensor Power Supply 24-24 V DC 250 mA supplied by the controller

Shock Resistance 98 m/sÃÂ² 11 ms

Slots 2

Standards EN/IEC 60664-1 || EN/IEC 61131-2 || EN/IEC 61010-2-201

Storage Altitude 0-3000 m

Supply serial)serial link supply 5 V, <200 mA

Supply Voltage Limits 85-264 V

Surge Withstand 2 kV power lines (AC) common mode EN/IEC 61000-4-5 || 2 kV relay output common mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 || 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 || 1 kV relay output differential mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) common mode EN/IEC 61000-4-5

Switching Frequency 20 switching operations/minute with maximum load

Time For Event Task 60 ÃÂµs response time

Timers Programmable

Transmission Rate 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485 || 1.2 to 115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 || 480 Mbit/s USB

Vibration Resistance 3.5 mm 5-8.4 Hz symmetrical rail || 3.5 mm 5-8.4 Hz panel mounting || 1 gn 8.4-150 Hz symmetrical rail || 1 gn 8.4-150 Hz panel mounting

Voltage State 0 Guaranteed <= 5 V input

Voltage State 1 Guaranteed >= 15 V input

Width 6.42 in

[Us] Rated Supply Voltage 100 to 240 V AC
