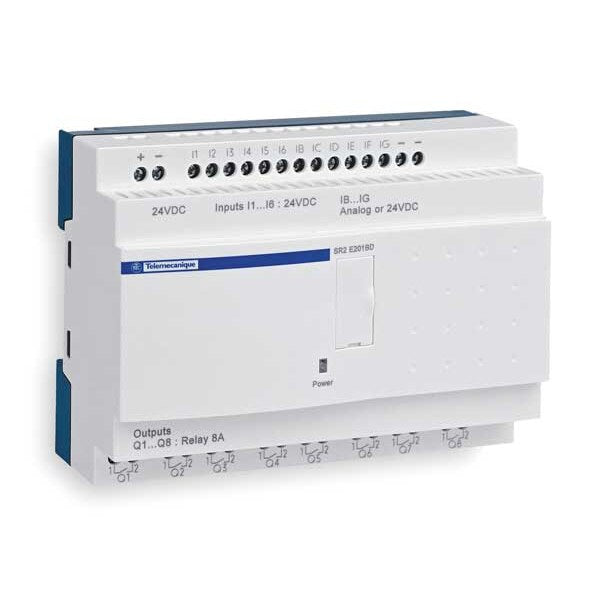

Logic Relay, 100-240VAC, Without Display

SKU
Brand Schneider Electric
Categories
Description Logic Relay, Input Voltage 100 to 240V AC, Output Type Relay, 8 A Amps, Number of Inputs 12, Number of Outputs 8, Counters 16, Timers 16, Yes Clock, No Display Display, Depth 2.34 in, Height 4.24 in, Width 4.91 in
graingerSKU: 2GNN1, mscSKU: , zoro_no: G0924131, mongo_id: 65bbe8819a749db822796443

Web Price

$418.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-40 ÃÂ°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 ÃÂ°C IEC 60068-2-1 and IEC 60068-2-2

Ambient Air Temperature For Storage -40-70 ÃÂ°C

Amps 8 A

Analogue Input Number 0

Backup Time 10 years 25 ÃÂ°C

Checks program memory on each power up

Clock Yes

Clock Drift 12 min/year 0-55 ÃÂ°C || 6 s/month 25-25 ÃÂ°C

Connections - Terminals screw terminals, 1 x 0.2 to 1 x 2.5 mmÃÂ² AWG 25 to AWG 14) semi-solid || screw terminals, 1 x 0.2 to 1 x 2.5 mmÃÂ² AWG 25 to AWG 14) solid || screw terminals, 1 x 0.25 to 1 x 2.5 mmÃÂ² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0.2 to 2 x 1.5 mmÃÂ² AWG 24 to AWG 16) solid || screw terminals, 2 x 0.25 to 2 x 0.75 mmÃÂ² AWG 24 to AWG 18) flexible with cable end

Contacts Type And Composition NO relay output

Counters 16

Country of Origin (subject to change) France

Current State 0 Guaranteed <= 0.5 mA discrete input)

Current State 1 Guaranteed >= 0.17 mA discrete input)

Cycle Time 6-90 ms

Depth 2.34 in

Discrete Input Current 0.6 mA

Discrete Input Frequency 57 to 63 Hz || 47 to 53 Hz

Discrete Input Number 12

Discrete Input Voltage 100 to 240 V AC

Display No Display

Disturbance Radiated/Conducted class B EN 55022-11 group 1

Electrical Durability AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1

Environmental Characteristic EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2

Height 4.24 in

Immunity To Microbreaks 10 ms

Input Impedance 350 kOhm discrete input

Input Voltage 100 to 240V AC

Ip Degree Of Protection IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)

Isolation Voltage 1780 V

Local Display without

Maximum Altitude Transport 3048 m

Maximum Supply Current 100 mA 100 V without extension) || 50 mA 240 V without extension)

Mechanical Durability 10000000 cycles relay output

Number of Inputs 12

Number of Outputs 8

Number Or Control Scheme Lines 0-240 ladder || 0-500 FBD

Operating Altitude 6561.68 ft (2000 m)

Operating Rate In Hz 0.1 Hz at Ie)relay output || 10 Hz no load)relay output

Output Thermal Current 8 A for all 8 outputs relay output

Output Type Relay

Output Voltage Limits 5 to 30 V DC relay output) || 24 to 250 V AC

Overvoltage Category III EN/IEC 60664-1

Package Quantity 1

Pollution Degree 2 EN/IEC 61131-2

Power Consumption In Va 11 VA without extension

Product Certifications GL || GOST || CSA || UL || C-tick

Product Or Component Type compact smart relay

Protection Type against inversion of terminals (control instructions not executed)

Relative Humidity 95-95 % without condensation or dripping water

Response Time 50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50 to 255 ms FBD from state 0 to state 1)discrete input || 50 to 255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output

Standards EN/IEC 61000-4-3 || EN/IEC 61000-4-11 || EN/IEC 60068-2-6 Fc || EN/IEC 61000-4-2 level 3 || EN/IEC 61000-4-12 || EN/IEC 61000-4-4 level 3 || EN/IEC 61000-4-5 || EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-6 level 3

Supply Frequency 50/60 Hz

Supply Voltage Limits 85-264 V

Switching Capacity In Ma >= 10 mA 12 V relay output)

Tightening Torque 0.5 N.m

Timers 16

Voltage State 0 Guaranteed <= 40 V discrete input

Voltage State 1 Guaranteed >= 79 V discrete input

Width 4.91 in

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1 and EN/IEC 60664-1

[Us] Rated Supply Voltage 100 to 240 V AC
