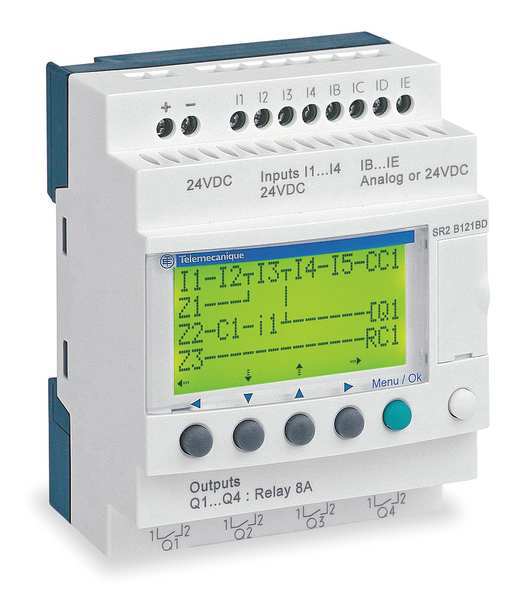

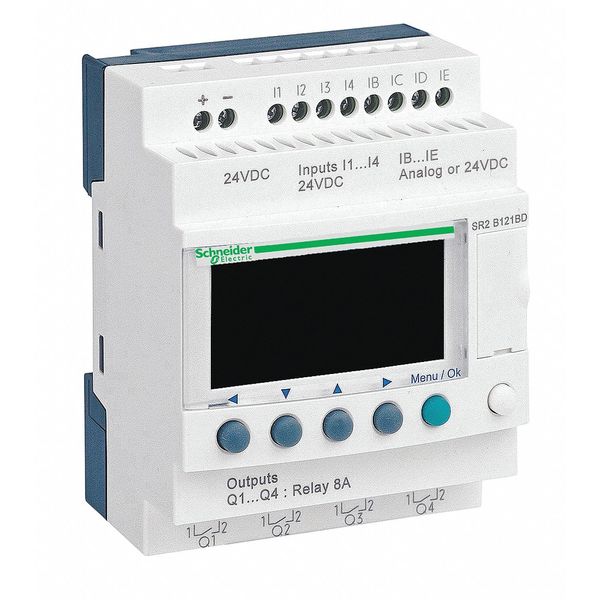

Logic Relay, Input Voltage 24VDC

SKU
Brand Schneider Electric
Categories
Description Logic Relay, Input Voltage 24V AC/DC, Output Type Relay, 8 A Amps, Number of Inputs 8, Number of Outputs 4, Counters 16, Timers 16, Yes Clock, LCD Display, Depth 2.34 in, Height 4.24 in, Width 2.8 in
graingerSKU: 1CNL1, mscSKU: , zoro_no: G1402886, mongo_id: 65bbe93c22d7a989a9941c8b

Web Price

$325.71 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-40 ÃÂ°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 ÃÂ°C IEC 60068-2-1 and IEC 60068-2-2

Ambient Air Temperature For Storage -40-70 ÃÂ°C

Amps 8 A

Analogue Input Number 4

Analogue Input Range 0 to 10 V || 0 to 24 V

Analogue Input Resolution 8 bits

Analogue Input Type common mode

Backup Time 10 years 25 ÃÂ°C

Checks program memory on each power up

Clock Yes

Clock Drift 12 min/year 0-55 ÃÂ°C || 6 s/month 25-25 ÃÂ°C

Connections - Terminals screw terminals, 1 x 0.2 to 1 x 2.5 mmÃÂ² AWG 25 to AWG 14) semi-solid || screw terminals, 1 x 0.2 to 1 x 2.5 mmÃÂ² AWG 25 to AWG 14) solid || screw terminals, 1 x 0.25 to 1 x 2.5 mmÃÂ² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0.2 to 2 x 1.5 mmÃÂ² AWG 24 to AWG 16) solid || screw terminals, 2 x 0.25 to 2 x 0.75 mmÃÂ² AWG 24 to AWG 18) flexible with cable end

Contacts Type And Composition NO relay output

Conversion Error +/- 5 % 25 ÃÂ°C analogue input circuit || +/- 6.2 % 55 ÃÂ°C analogue input circuit

Conversion Time smart relay cycle time analogue input circuit

Counters 16

Counting Frequency 1 kHz discrete input

Country of Origin (subject to change) France

Current State 0 Guaranteed <= 0.5 mA IB to IG used as discrete input circuit) || <= 0.75 mA I1 to IA and IH to IR discrete input circuit)

Current State 1 Guaranteed >= 1.2 mA IB to IG used as discrete input circuit) || >= 2.2 mA I1 to IA and IH to IR discrete input circuit)

Cycle Time 6-90 ms

Depth 2.34 in

Discrete Input Current 4 mA

Discrete Input Number 8 EN/IEC 61131-2 type 1

Discrete Input Type resistive

Discrete Input Voltage 24 V DC

Display LCD

Disturbance Radiated/Conducted class B EN 55022-11 group 1

Electrical Durability AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1

Environmental Characteristic EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2

Height 4.24 in

Immunity To Microbreaks 1 ms

Input Compatibility 3-wire proximity sensors PNP discrete input

Input Impedance 12 kOhm IB to IG used as analogue input circuit || 12 kOhm IB to IG used as discrete input circuit || 7.4 kOhm I1 to IA and IH to IR discrete input circuit

Input Voltage 24V AC/DC

Ip Degree Of Protection IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)

Local Display with

Lsb Value 39 mV analogue input circuit

Maximum Altitude Transport 3048 m

Maximum Permissible Voltage 30 V analogue input circuit

Maximum Supply Current 100 mA without extension)

Mechanical Durability 10000000 cycles relay output

Number of Inputs 8

Number of Outputs 4

Number Or Control Scheme Lines 0-240 ladder || 0-500 FBD

Operating Altitude 6561.68 ft (2000 m)

Operating Distance 10 m between stations, with screened cable (sensor not isolated) analogue input circuit

Operating Rate In Hz 0.1 Hz at Ie)relay output || 10 Hz no load)relay output

Output Thermal Current 8 A for all 4 outputs relay output

Output Type Relay

Output Voltage Limits 24 to 250 V AC relay output) || 5 to 30 V DC relay output)

Overvoltage Category III EN/IEC 60664-1

Package Quantity 1

Pollution Degree 2 EN/IEC 61131-2

Power Dissipation In W 3 W without extension

Product Certifications GL || CSA || UL || GOST || C-tick

Product Or Component Type compact smart relay

Relative Humidity 95-95 % without condensation or dripping water

Repeat Accuracy +/- 2 % 55 ÃÂ°C analogue input circuit

Response Time 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output

Reverse Polarity Protection with

Standards EN/IEC 61000-4-12 || EN/IEC 61000-4-4 level 3 || EN/IEC 61000-4-5 || EN/IEC 61000-4-11 || EN/IEC 61000-4-2 level 3 || EN/IEC 60068-2-6 Fc || EN/IEC 61000-4-6 level 3 || EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-3

Supply Voltage Limits 19.2-30 V

Switching Capacity In Ma >= 10 mA 12 V relay output)

Temperature Probe Type NTC 10k 25 ÃÂ°C || NTC 1000k 25 ÃÂ°C || KTY81 210/220/221/222/250 || Pt 500

Tightening Torque 0.5 N.m

Timers 16

Voltage State 0 Guaranteed <= 5 V I1 to IA and IH to IR discrete input circuit || <= 5 V IB to IG used as discrete input circuit

Voltage State 1 Guaranteed >= 15 V I1 to IA and IH to IR discrete input circuit || >= 15 V IB to IG used as discrete input circuit

Width 2.8 in

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1 and EN/IEC 60664-1

[Us] Rated Supply Voltage 24 V DC
