Home / Lr9D Electronic Olr, 1.6-8A, 600VAC

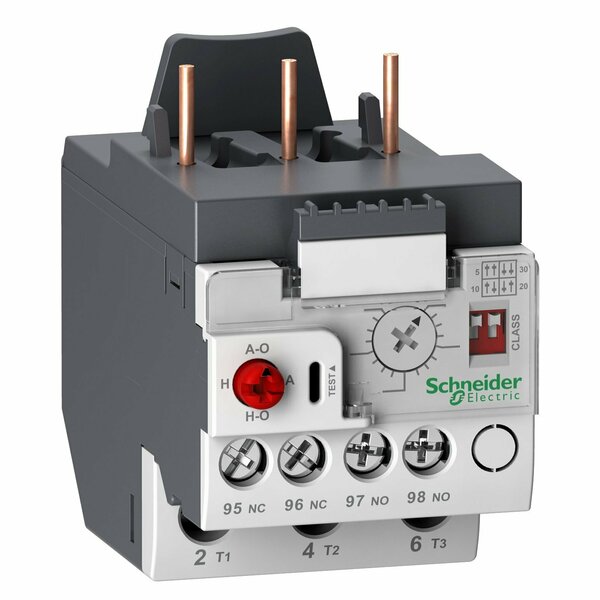

Lr9D Electronic Olr, 1.6-8A, 600VAC

Lr9D Electronic Olr, 1.6-8A, 600VAC

  • Schneider Electric
  • Overload Relay, Number of Poles 3, Standards CCC, CSA, CSA C22.2, GB 14048.4, IEC 60947-4-1, Product CULus, TÜV, UL 60947-4-1

    graingerSKU: 615A28, mscSKU: , zoro_no: G0858600, mongo_id: 65bbe7a09a749db82274b1dd

Web Price
$123.19 / each
Qty

Product Details

-25-70°C IEC 60255-8
-55-80°C
5 A gG signalling circuit || 5 A BS signalling circuit
3.15 in
2.85 in
1.77 in
control circuit screw clamp terminals 1 2.5-2.5 mm² solid or flexible - without cable end || power circuit screw clamp terminals 1 16-16 mm² solid or flexible - without cable end
Red push-button stop and manual reset || White 2 microswitches adjustable trip class || Red knob automatic reset || White dial full-load current adjustment
China
79.9 mm
LR9D
6 kV 50 Hz IEC 60255-5
surge withstand 2 kV common mode IEC 61000-4-5 || resistance to electrostatic discharge 8 kV IEC 61000-4-2 || immunity to radiated radio-electrical interference 10 V/m IEC 61000-4-3 || immunity to fast transients 2 kV IEC 61000-4-4
China RoHS Regulation, Circularity Profile, Environmental Disclosure, EU RoHS Directive, Green Premium Product, Mercury Free, REACh free of SVHC, REACh Regulation, RoHS Exemption Information, Toxic Heavy Metal Free
Series LRD
72.5 mm
IP20 front face IEC 60529
vibrations 10 to 150 Hz6 Gn IEC 60068-2-6 || shocks 11 ms15 gn IEC 60068-2-7
under contactor || plate, with specific accessories || rail, with specific accessories
3
6561.68 ft (2000 m) without derating
1
phase difference > 40% 3-3 s IEC 60947-4-1
300 mW
IECEE CB Scheme || UL || CSA || CCC
LC1D12 || LC1D32 || LC1D38 || LC1D09 || LC1D25 || LC1D18
TeSys LRD
electronic thermal overload relay
TeSys
Power circuit 1000 V; Signalling circuit 690 V
690 V power circuit; 660 V signalling circuit
motor protection
Auto, Manual
Thermal
Yes
CCC, CSA, CSA C22.2, GB 14048.4, IEC 60947-4-1, Product CULus, TÜV, UL 60947-4-1
class 5-30
1.6-8 A
control circuit 0.8 N.m screw clamp terminals || power circuit 3.1 N.m screw clamp terminals
1.5 to 4 min - automatic reset time
10, 20, 30, 5
1.25 In IEC 60947-4-1
Mfr. Series LC1D09 to LC1D32 Contactors
45 mm
5 A signalling circuit
690 V power circuit || 660 V signalling circuit
6 kV
power circuit 1000 V || signalling circuit 690 V
