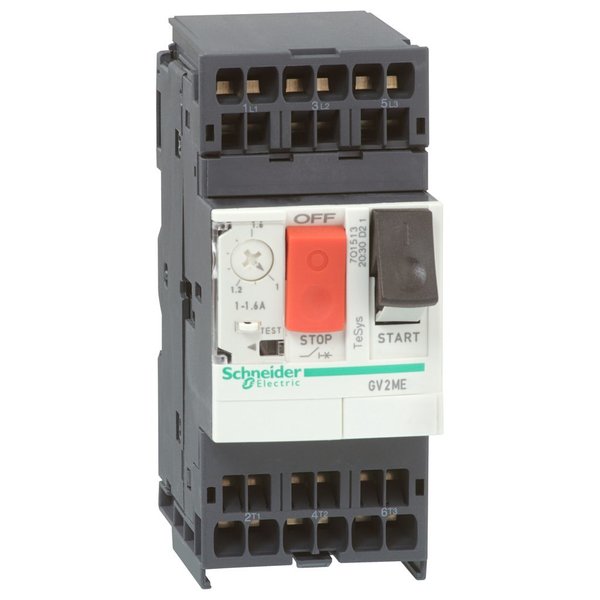

Manual Starter 600Vac 18Amp Iec

SKU
Brand Schneider Electric
Categories
Description Manual Starter 600Vac 18Amp Iec

Web Price

$332.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-80ÃÂ°C

Breaking Capacity 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 8 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

Climatic Withstand IACS E10

Color dark grey

Control Type push-button

Country of Origin (subject to change) France

Depth 78.5 mm

Device Application motor protection

Device Short Name GV2ME

Electrical Durability 100000 cycles AC-3 415 V In

Fire Resistance 960ÃÂ°C IEC 60695-2-11

Fixing Mode 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)

Height 101 mm

Ik Degree Of Protection IK04

Ip Degree Of Protection IP20 IEC 60529

Line Rated Current 18 A

Magnetic Tripping Current 223-223 A

Mechanical Durability 100000 cycles

Mechanical Robustness shocks 30 Gn for 11 ms || vibrations 5 Gn, 5 to 150 Hz

Motor Power Kw 7.5-7.5 kW 400/415 V AC 50/60 Hz || 9-9 kW 500 V AC 50/60 Hz

Network Frequency 50/60 Hz IEC 60947-4-1

Network Type AC

Operating Altitude 6561.68 ft (2000 m)

Package Quantity 1

Phase Failure Sensitivity yes IEC 60947-4-1

Poles Description 3P

Power Dissipation Per Pole 2.5 W

Product Certifications CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA

Product Name TeSys GV2 || TeSys Deca

Product Or Component Type motor circuit breaker

Range TeSys Deca

Rated Duty continuous IEC 60947-4-1

Standards EN/IEC 60947-2 || EN/IEC 60947-4-1

Suitability For Isolation yes IEC 60947-1ÃÂ§ 7-1-6

Thermal Protection Adjustment Range 13-18 A IEC 60947-4-1

Trip Unit Technology thermal-magnetic

Utilisation Category category A IEC 60947-2 || AC-3 IEC 60947-4-1

Width 45 mm

[Ics] Rated Service Short-Circuit Breaking Capacity 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 50 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

[Ith] Conventional Free Air Thermal Current 18 A IEC 60947-4-1

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-2

[Ui] Rated Insulation Voltage 690 V AC 50/60 Hz IEC 60947-2
