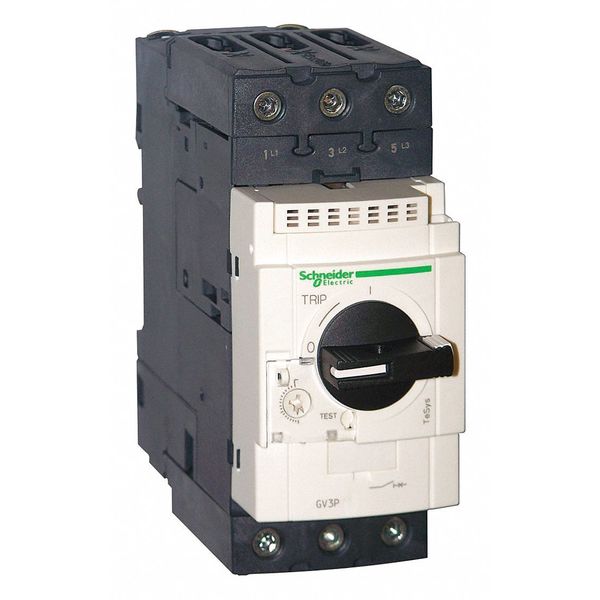

Manual Starter 600Vac 40Amp Iec

SKU
Brand Schneider Electric
Categories
Description Manual Starter 600Vac 40Amp Iec
graingerSKU: null, mscSKU: null, zoro_no: G0562129, mongo_id: 65bbe6013aaddbd5a9ffeee7

Web Price

$607.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-80ÃÂ°C

Breaking Capacity 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 12 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2

Climatic Withstand IACS E10

Color dark grey

Control Type rotary handle

Country of Origin (subject to change) France

Depth 136 mm

Device Application motor protection

Device Short Name GV3P

Electrical Durability 50000 cycles AC-3 415 V In

Fire Resistance 960ÃÂ°C IEC 60695-2-11

Fixing Mode 35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)

Height 132 mm

Ik Degree Of Protection IK09 enclosure

Ip Degree Of Protection IP20 IEC 60529

Line Rated Current 25 A

Magnetic Tripping Current 350-350 A

Mechanical Durability 50000 cycles

Mechanical Robustness shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5 to 300 Hz

Motor Power Kw 11-11 kW 400/415 V AC 50/60 Hz || 15-15 kW 500 V AC 50/60 Hz || 18.5-18.5 kW 690 V AC 50/60 Hz

Network Frequency 50/60 Hz IEC 60947-4-1

Network Type AC

Operating Altitude 9842.52 ft (3000 m)

Package Quantity 1

Phase Failure Sensitivity yes IEC 60947-4-1

Poles Description 3P

Power Dissipation Per Pole 8 W

Product Certifications CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || ABS || DNV-GL || UKCA

Product Name TeSys GV3 || TeSys Deca

Product Or Component Type motor circuit breaker

Range TeSys Deca

Rated Duty continuous IEC 60947-4-1

Rated Service Short-Circuit Breaking Capacity 100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 50% 500 V AC 50/60 Hz IEC 60947-2; 50% 690 V AC 50/60 Hz IEC 60947-2

Standards EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1

Suitability For Isolation yes IEC 60947-1

Thermal Protection Adjustment Range 17-25 A IEC 60947-4-1

Tightening Torque 5 N.m screw clamp terminal

Trip Unit Technology thermal-magnetic

Utilisation Category AC-3 IEC 60947-4-1

Width 55 mm

[Ics] Rated Service Short-Circuit Breaking Capacity 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 50 % 500 V AC 50/60 Hz IEC 60947-2 || 50 % 690 V AC 50/60 Hz IEC 60947-2

[Ith] Conventional Free Air Thermal Current 25 A IEC 60947-4-1

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-2

[Ui] Rated Insulation Voltage 690 V AC 50/60 Hz IEC 60947-2
