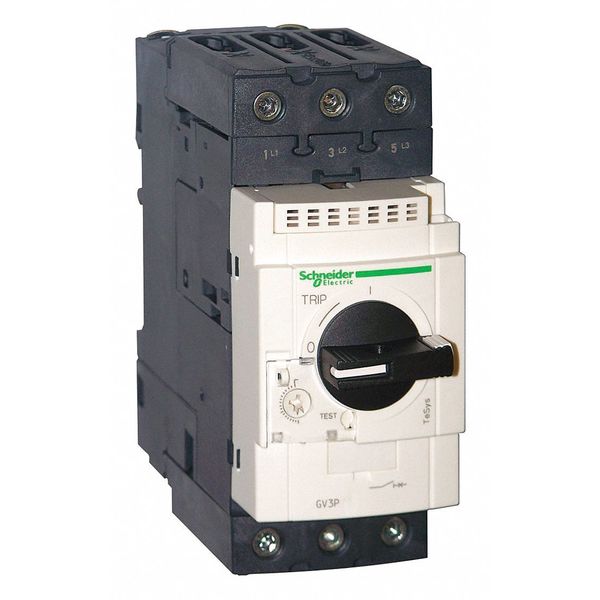

Manual Starter 600Vac 40Amp Iec

SKU
Brand Schneider Electric
Categories
Description Manual Starter, NEMA Size Not Applicable, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 32 A, Series TeSys Deca, Maximum Overload Relay Current Setting 32 A, Minimum Overload Relay Current Setting 23 A, Mounting Style DIN Rail, NEMA Enclosure Rating No Enclosure, Overload Protection Type Thermal, Starter Style IEC, Terminal Connection Type Screw Clamp Terminals, IP Rating IP20, Resistance Properties Fire Resistant, Frequency 50/60 Hz

Web Price

$553.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-80ÃÂ°C

Breaking Capacity 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 12 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2

Climatic Withstand IACS E10

Color dark grey

Control Type rotary handle

Country of Origin (subject to change) France

Current AC 32 A

Depth 136 mm

Device Application motor protection

Device Short Name GV3P

Electrical Durability 50000 cycles AC-3 415 V In

Electrical Operating Durability 50,000

Fire Resistance 960ÃÂ°C IEC 60695-2-11

Fixing Mode 35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)

Frequency 50/60 Hz

Height 132 mm

Ik Degree Of Protection IK09 enclosure

Ip Degree Of Protection IP20 IEC 60529

IP Rating IP20

Line Rated Current 32 A

Magnetic Tripping Current 448-448 A

Maximum Operating Temperature 140 Degrees F

Maximum Overload Relay Current Setting 32 A

Maximum Voltage Rating 690V AC

Mechanical Durability 50000 cycles

Mechanical Operating Durability 50,000

Mechanical Robustness shocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5 to 300 Hz

Minimum Operating Temperature -4 Degrees F

Minimum Overload Relay Current Setting 23 A

Motor Power Kw 15-15 kW 400/415 V AC 50/60 Hz || 18.5-18.5 kW 500 V AC 50/60 Hz || 22-22 kW 690 V AC 50/60 Hz

Mounting Style DIN Rail

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Network Frequency 50/60 Hz IEC 60947-4-1

Network Type AC

Number of Poles 3

Operating Altitude 9842.52 ft (3000 m)

Operator Selector Switch

Overall Depth 5.35 in

Overall Height 5.2 in

Overall Width 2.17 in

Overload Protection Type Thermal

Package Quantity 1

Phase Three

Phase Failure Sensitivity yes IEC 60947-4-1

Phase Loss Sensitivity Yes

Poles Description 3P

Power Dissipation Per Pole 8 W

Product Certifications CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || ABS || DNV-GL || UKCA

Product Name TeSys GV3 || TeSys Deca

Product Or Component Type motor circuit breaker

Range TeSys Deca

Rated Duty continuous IEC 60947-4-1

Rated Service Short-Circuit Breaking Capacity 100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 50% 500 V AC 50/60 Hz IEC 60947-2; 50% 690 V AC 50/60 Hz IEC 60947-2

Resistance Properties Fire Resistant

Series TeSys Deca

Standards CSA C22.2 No 60947-4-1, EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1

Starter Style IEC

Suitability For Isolation yes IEC 60947-1

Terminal Connection Type Screw Clamp Terminals

Thermal Protection Adjustment Range 23-32 A IEC 60947-4-1

Tightening Torque 5 N.m screw clamp terminal

Trip Unit Technology thermal-magnetic

Utilisation Category AC-3 IEC 60947-4-1

Width 55 mm

[Ics] Rated Service Short-Circuit Breaking Capacity 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 50 % 500 V AC 50/60 Hz IEC 60947-2 || 50 % 690 V AC 50/60 Hz IEC 60947-2

[Ith] Conventional Free Air Thermal Current 32 A IEC 60947-4-1

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-2

[Ui] Rated Insulation Voltage 690 V AC 50/60 Hz IEC 60947-2
