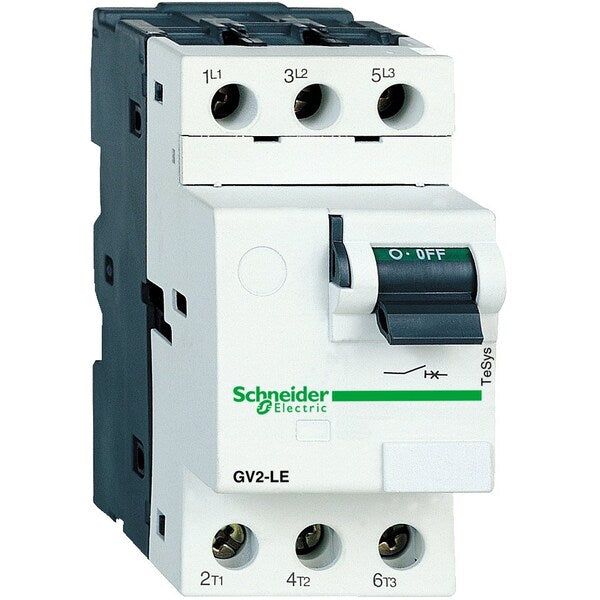

Manual Switch 600Vac 04Amp Iec

SKU
Brand Schneider Electric
Categories
Description Manual Switch 600Vac 04Amp Iec
graingerSKU: , mscSKU: , zoro_no: G0847710, mongo_id: 65bbe84d9a749db822784992

Web Price

$442.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-80ÃÂ°C

Breaking Capacity 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2

Climatic Withstand IACS E10

Color dark grey

Control Type toggle

Country of Origin (subject to change) France

Depth 78.5 mm

Device Application motor protection

Device Short Name GV2LE

Electrical Durability 100000 cycles AC-3 415 V In

Fire Resistance 960ÃÂ°C IEC 60695-2-11

Fixing Mode 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)

Height 89 mm

Ik Degree Of Protection IK04

Ip Degree Of Protection IP20 IEC 60529

Line Rated Current 0.4 A

Magnetic Tripping Current 5-5 A

Mechanical Durability 100000 cycles

Mechanical Robustness shocks 30 Gn for 11 ms || vibrations 5 Gn, 5 to 150 Hz

Motor Power Kw 0.09-0.09 kW 400/415 V AC 50/60 Hz || 0.06-0.06 kW 400/415 V AC 50/60 Hz

Network Frequency 50/60 Hz IEC 60947-2

Network Type AC

Operating Altitude 6561.68 ft (2000 m)

Package Quantity 1

Poles Description 3P

Power Dissipation Per Pole 1.8 W

Product Certifications CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA || IECEE CB Scheme

Product Name TeSys GV2

Product Or Component Type motor circuit breaker

Range TeSys Deca

Rated Duty continuous IEC 60947-4-1

Standards EN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1

Suitability For Isolation yes IEC 60947-1ÃÂ§ 7-1-6

Tightening Torque 1.7 N.m screw clamp terminal

Trip Unit Technology magnetic

Utilisation Category category A IEC 60947-2 || AC-3 IEC 60947-4-1

Width 45 mm

[Ics] Rated Service Short-Circuit Breaking Capacity 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 690 V AC 50/60 Hz IEC 60947-2

[Ith] Conventional Free Air Thermal Current 0.4 A IEC 60947-4-1

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-2

[Ui] Rated Insulation Voltage 690 V AC 50/60 Hz IEC 60947-2
