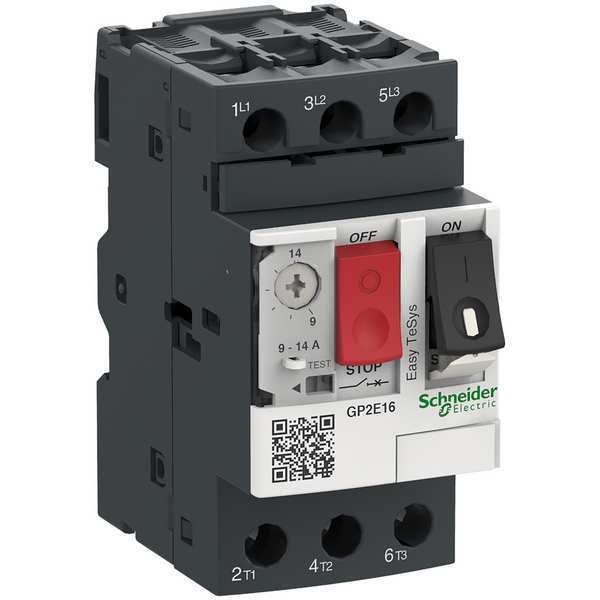

ManualMotorStarter, IEC, PushButton, Therm

SKU
Brand Schneider Electric
Categories
Description Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 3/4 hp, Horsepower @ Single Phase - 240V AC 2 hp, Maximum Voltage Rating 690V AC, Number of Poles 3, Operator Push Button, Phase Three, Current AC 14 A, Horsepower @ Three Phase - 208V AC 3 hp, Horsepower @ Three Phase - 240V AC 3 hp, Horsepower @ Three Phase - 480V AC 10 hp, Series TeSys Easy, Horsepower @ Three Phase - 600V AC 10 hp, Maximum Overload Relay Current Setting 14 A

Web Price

$90.61 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-80ÃÂ°C

Amps AC 14 A

Breaking Capacity 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 8 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2

Connections - Terminals screw clamp terminals 1-6 mmÃÂ² - solid || screw clamp terminals 1.5-6 mmÃÂ² - flexible without cable end || screw clamp terminals 1-4 mmÃÂ² - flexible with cable end || screw clamp terminals AWG 18 to AWG 8)

Control Type push-button

Country of Origin (subject to change) Thailand

Current AC 14 A

Depth 3.09 in

Description/Special Features Thermal-Magnetic Trip Unit Technology

Device Application motor

Device Short Name GP2E

Electrical Durability 100000 cycles AC-3 440 V

Electrical Operating Durability 100,000

Enclosure NEMA Rating 3R, 4

Fire Resistance 960ÃÂ°C IEC 60695-2-1

Fixing Mode 35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)

Frequency 50/60 Hz

Height 3.5 in

Horsepower @ Single Phase - 120V AC 3/4 hp

Horsepower @ Single Phase - 240V AC 2 hp

Horsepower @ Three Phase - 208V AC 3 hp

Horsepower @ Three Phase - 240V AC 3 hp

Horsepower @ Three Phase - 480V AC 10 hp

Horsepower @ Three Phase - 600V AC 10 hp

HP @ 1 Phase - 120V 3/4 hp

HP @ 1 Phase - 230V 2 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 460-575V 10 hp

HP @ 3 Phase - 480V 10 hp

HP @ 3 Phase - 575V 10 hp

Ik Degree Of Protection IK04

Includes Pilot Light No

Ip Degree Of Protection IP20 IEC 60529

IP Rating IP20

Line Rated Current 14 A

Magnetic Tripping Current 170-170 A

Max. Voltage 690 V AC

Maximum Operating Rate 25 cyc/h

Maximum Operating Temperature 140 Degrees F

Maximum Overload Relay Current Setting 14 A

Maximum Voltage Rating 690V AC

Mechanical Durability 100000 cycles

Mechanical Operating Durability 100,000

Minimum Operating Temperature -4 Degrees F

Minimum Overload Relay Current Setting 9 A

Mounting Hole Distance - Height 1.97 in

Mounting Hole Distance - Width 1.38 in

Mounting Style DIN Rail

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Network Frequency 50/60 Hz IEC 60947-4-1

Network Type AC

Number of Poles 3

Number of Required Thermals Not Applicable

Operating Altitude 6561.68 ft (2000 m)

Operating Position any position

Operator Push Button

Overall Depth 3.09 in

Overall Height 3.5 in

Overall Width 1.77 in

Overload Protection Type Thermal

Package Quantity 1

Phase Three

Phase Failure Sensitivity yes IEC 60947-4-1

Phase Loss Sensitivity Yes

Pilot Light No

Poles Description 3P

Power Dissipation Per Pole 2.5 W

Product Certifications cUL

Product Name Easy TeSys GP2E

Product Or Component Type motor controller

Protective Treatment TH

Range Easy TeSys

Rated Duty continuous IEC 60947-4-1

Resistance Properties Fire Resistant

Series TeSys Easy

Standards cUL, EN/IEC 60947-2, EN/IEC 60947-4-1, RoHS, UL 60947-4-1

Starter Style IEC

Starter Type Manual

Suitability For Isolation yes IEC 60947-1

Terminal Connection Type Screw Clamp Terminals

Tightening Torque 1.7 N.m screw clamp terminals

Trip Unit Rating 9-14 A

Trip Unit Technology thermal-magnetic

Utilisation Category AC-3 IEC 60947-4-1 || category A IEC 60947-2

Width 1.77 in

[Ics] Rated Service Short-Circuit Breaking Capacity 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 50 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2

[Ith] Conventional Free Air Thermal Current 14 A IEC 60947-4-1

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-2

[Ui] Rated Insulation Voltage 690 V AC 50/60 Hz IEC 60947-2
