Home / Miniature plug-in relay, 12 A, 2 CO, 48, 48V AC Coil Volts, 2 C/O

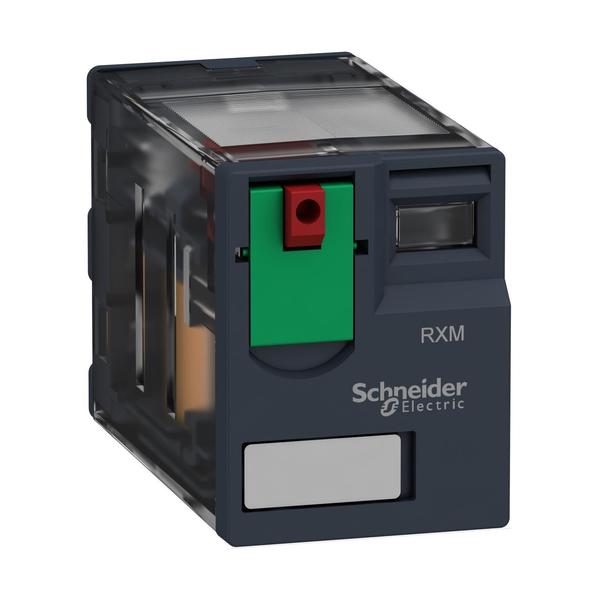

Miniature plug-in relay, 12 A, 2 CO, 48, 48V AC Coil Volts, 2 C/O

SKU
Brand Schneider Electric
Categories
Description Miniature plug-in relay,12 A,2 CO,48
graingerSKU: , mscSKU: , zoro_no: G800905373, mongo_id: 65bbe65e3aaddbd5a902665a

Web Price

$11.24 / each

Qty

Minimum order: 10

Product Details

AC Contact Rating - Relay 12A @ 250V AC

Coil Resistance 710 Ohm

Coil Volts 48V AC

Contact Form - Relay 2 C/O

Contact Material AgNi

Country of Origin (subject to change) Indonesia

Current Rating 12 A 28 V DC) NO IEC; 12 A 250 V AC) NO IEC; 6 A 28 V DC) NC IEC; 6 A 250 V AC) NC IEC; 12 A 28 V DC) UL; 12 A 277 V AC) UL; 0.416666666666667

DC Contact Rating - Relay 12A @ 28V DC

Dielectric Strength 1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with basic insulation; 2000 V AC between poles with basic insulation

Features Lockable Test Button

Operating Temp. Range -40-55ÃÂ°C

Operating Time 20 ms

Package Quantity 1

Pin Shape flat

Power Consumption - Relay 1.2 VA

Protection Category RT I

Series RXM; Miniature

Standards EN/IEC 61810-1 508; CSA C22.2 No 14; GOST; Lloyd's; CE

Switching Power Max 3000 VA/336 W; Min 170 mW 10 mA, 17 V

Switching Voltage 250 V IEC
