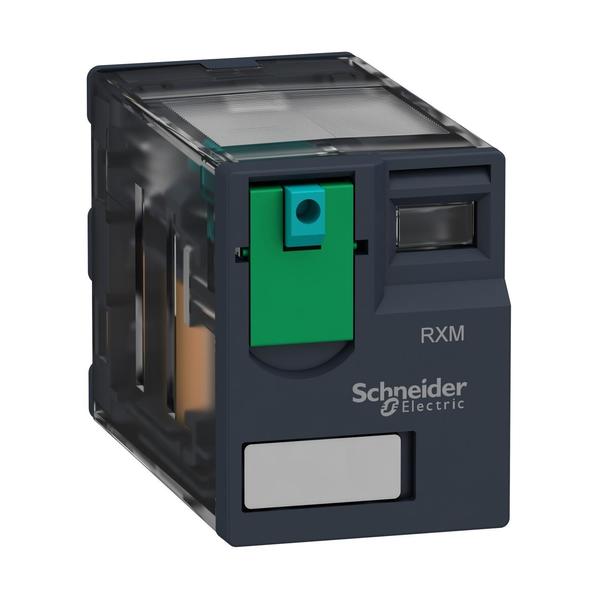

Miniature plug-in relay, 12 A, 2 CO, 48, 48V DC Coil Volts, 2 C/O

SKU
Brand Schneider Electric
Categories
Description Miniature plug-in relay,12 A,2 CO,48
graingerSKU: , mscSKU: , zoro_no: G500905512, mongo_id: 65bbe97422d7a989a9957b06

Web Price

$9.56 / each

Qty

Minimum order: 10

Product Details

AC Contact Rating - Relay 12A @ 250V AC

Coil Resistance 2560 Ohm

Coil Volts 48V DC

Contact Form - Relay 2 C/O

Contact Material AgNi

Country of Origin (subject to change) Indonesia

Current Rating 12 A 28 V DC) NO IEC; 12 A 250 V AC) NO IEC; 6 A 28 V DC) NC IEC; 6 A 250 V AC) NC IEC; 12 A 28 V DC) UL; 12 A 277 V AC) UL; 0.416666666666667

DC Contact Rating - Relay 12A @ 28V DC

Dielectric Strength 1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with basic insulation; 2000 V AC between poles with basic insulation

Features Lockable Test Button

Operating Temp. Range -40-55ÃÂ°C

Operating Time 20 ms

Package Quantity 1

Pin Shape flat

Power Consumption - Relay 0.9 W

Protection Category RT I

Series RXM; Miniature

Standards CSA C22.2 No 14; EN/IEC 61810-1; UL 508; CE; GOST; Lloyd's

Switching Power Max 3000 VA/336 W; Min 170 mW 10 mA, 17 V

Switching Voltage 250 V IEC
