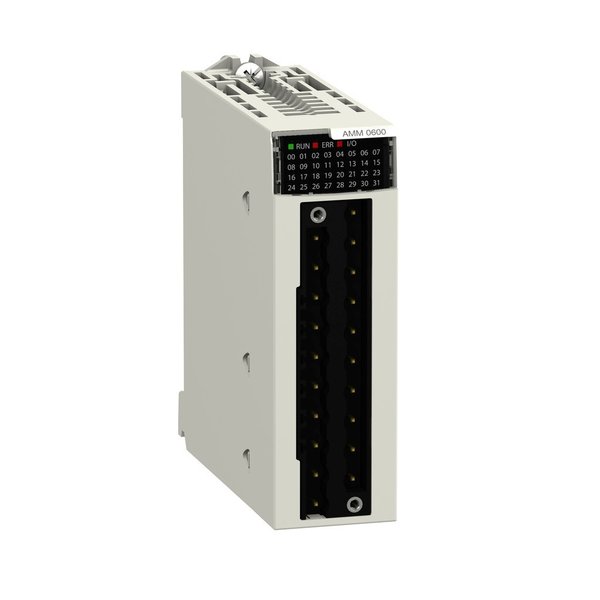

Mixed analog I/O module X80-4 inputs -

SKU
Brand Schneider Electric
Categories
Description Mixed analog I/O module X80 - 4 inputs -
graingerSKU: , mscSKU: , zoro_no: G300422653, mongo_id: 65bbe58f3aaddbd5a9fd023c

Web Price

$1,161.24 / each

Qty

Product Details

Ambient Air Temperature For Operation 0-60 ÃÂ°C

Ambient Air Temperature For Storage -40-85 ÃÂ°C

Analogue Input Number 4

Analogue Input Resolution 12 bits 0 to 20 mA || 12 bits 0 to 5 V || 12 bits 1 to 5 V || 12 bits 4 to 20 mA || 13 bits 0 to 10 V || 14 bits +/- 10 V

Analogue Input Type current 0 to 20 mA || current 4 to 20 mA || voltage +/- 10 V || voltage 0 to 10 V || voltage 0 to 5 V || voltage 1 to 5 V

Analogue Output Number 2

Analogue Output Resolution 11 bits, 0 to 20 mA || 11 bits, 4 to 20 mA || 12 bits, +/- 10 V

Analogue Output Type current 0 to 20 mA || current 4 to 20 mA || voltage +/- 10 V

Common Mode Rejection 80 dB

Conversion Time <= 2 ms

Country of Origin (subject to change) France

Current Consumption 240 mA 3.3 V DC

Electrical Connection 20 ways 1 connector

Fallback Mode predefined || configurable

Fast Read Cycle Time 1 ms + 1 ms x number of channels used

Height 2.2

Input Impedance 250 Ohm

Input Level high level

Input Output Isolation non isolated

Ip Degree Of Protection IP20

Isolation Voltage 1400 V DC between channels and ground || 1400 V DC between channels and bus || 750 V DC between group of I/O channels

Length 4.6

Maximum Conversion Value +/- 11.25 V +/- 10 V output || +/- 11.25 V +/- 10 V input || 0 to 30 mA 0 to 20 mA input || 0 to 30 mA 4 to 20 mA input || +/- 11.25 V 0 to 10 V input || +/- 11.25 V 0 to 5 V input || +/- 11.25 V 1 to 5 V input || 0 to 24 mA 0 to 20 mA output || 0 to 24 mA 4 to 20 mA output

Measurement Error 0.25 % of full scale 0 to 20 mA 25 ÃÂ°C output || 0.25 % of full scale 4 to 20 mA 25 ÃÂ°C output || <= 0.35 % of full scale +/- 10 V 0 to 60 ÃÂ°C input || <= 0.35 % of full scale 0 to 10 V 0 to 60 ÃÂ°C input || <= 0.35 % of full scale 0 to 5 V 0 to 60 ÃÂ°C input || <= 0.35 % of full scale 1 to 5 V 0 to 60 ÃÂ°C input || <= 0.5 % of full scale 0 to 20 mA 0 to 60 ÃÂ°C input || <= 0.5 % of full scale 4 to 20 mA 0 to 60 ÃÂ°C input || <= 0.6 % of full scale +/- 10 V 0 to 60 ÃÂ°C output || <= 0.6 % of full scale 0 to 20 mA 0 to 60 ÃÂ°C output || <= 0.6 % of full scale 4 to 20 mA 0 to 60 ÃÂ°C output || 0.25 % of full scale +/- 10 V 25 ÃÂ°C output || 0.25 % of full scale +/- 10 V 25 ÃÂ°C input || 0.25 % of full scale 0 to 10 V 25 ÃÂ°C input || 0.25 % of full scale 0 to 5 V 25 ÃÂ°C input || 0.25 % of full scale 1 to 5 V 25 ÃÂ°C input || 0.35 % of full scale 0 to 20 mA 25 ÃÂ°C input || 0.35 % of full scale 4 to 20 mA 25 ÃÂ°C

Minimum Crosstalk Attenuation 70 dB

Mtbf Reliability 1400000 H

Nominal Read Cycle Time 5 ms for 4 channels

Operating Altitude 0 to 6561.68 ft (0 to 2000 m) || 2000 to 5000 m with derating factor

Output Level high level

Package Quantity 1

Permitted Overload On Inputs +/- 30 mA 0 to 20 mA || +/- 30 mA 4 to 20 mA || +/- 30 V +/- 10 V || +/- 30 V 0 to 10 V || +/- 30 V 0 to 5 V || +/- 30 V 1 to 5 V

Power Consumption In W 2.6 W 24 V DC typical || 3.2 W 24 V DC maximum || 0.35 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum

Precision Of Internal Conversion Resistor 0.1 % - 15 ppm/ÃÂ°C

Product Certifications CE || RCM || CSA || EAC || Merchant Navy || UL

Product Or Component Type mixed analog I/O module

Recalibration factory calibrated on outputs || internal on inputs

Relative Humidity 5-95 % 55-55 ÃÂ°C without condensation

Shock Resistance 30 gn

Standards EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201

Status Led 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O

Temperature Drift 100 ppm/ÃÂ°C +/- 10 V output || 100 ppm/ÃÂ°C 0 to 20 mA output || 100 ppm/ÃÂ°C 4 to 20 mA output || 30 ppm/ÃÂ°C +/- 10 V input || 30 ppm/ÃÂ°C 0 to 10 V input || 30 ppm/ÃÂ°C 0 to 5 V input || 30 ppm/ÃÂ°C 1 to 5 V input || 50 ppm/ÃÂ°C 0 to 20 mA input || 50 ppm/ÃÂ°C 4 to 20 mA input

Vibration Resistance 3 gn

Width 4.3
