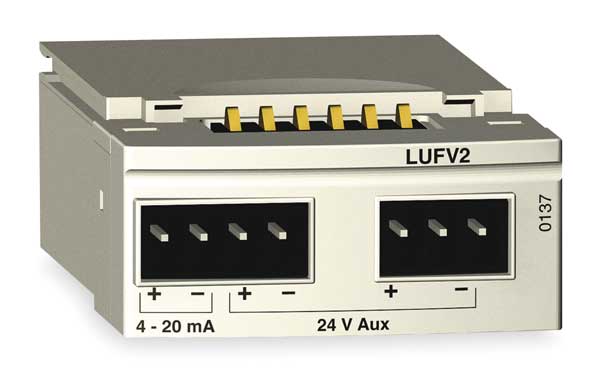

Module, Motor Load

SKU
Brand Schneider Electric
Categories
Description Function Module, Accessory Type Function Module, Compatible with Series TeSys Ultra, Standards REACH, RoHS
graingerSKU: null, mscSKU: null, zoro_no: G1591362, mongo_id: 65bbe5dd3aaddbd5a9ff06d6

Web Price

$271.24 / each

Qty

Product Details

Accessory Type Function Module

Analogue Output Current 4-20 mA

Associated Cable Type AWG 26...AWG 16

Compatible with Series TeSys Ultra

Connection Pitch 3.81 mm

Connections - Terminals screw clamp terminals 1 0.14-1 mmÃÂ² flexible without cable end || screw clamp terminals 1 0.14-1 mmÃÂ² rigid without cable end || screw clamp terminals 1 0.25-0.5 mmÃÂ² flexible with cable end || screw clamp terminals 1 0.25-1 mmÃÂ² flexible with cable end || screw clamp terminals 2 0.14-0.5 mmÃÂ² rigid without cable end || screw clamp terminals 2 0.14-0.75 mmÃÂ² flexible without cable end || screw clamp terminals 2 0.25-0.34 mmÃÂ² flexible with cable end || screw clamp terminals 2 0.5-0.5 mmÃÂ² flexible with cable end

Country of Origin (subject to change) France

Device Short Name LUF

Features Motor Load Indicator

For Use With TeSys U-Line Starters

Function Available indication of motor load

Load Impedance Ohmic 100 Ohm typical || <= 500 Ohm

Measurement Accuracy +/- 10 % with multifunction control unit 1 % of Ir || +/- 6 % with advanced control unit

Mounting Location front side

Mounting Mode plug-in

Package Quantity 1

Product Compatibility LUCC || LUCM || LUCB || LUCD

Product Or Component Type function module

Range TeSys

Standards REACH, RoHS

Tightening Torque 0.2-0.25 N.m 2.5 mm flat

Type Of Output Signal value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD || value of I average/Ir ratio within the range of 0 to 3 for LUCC

[Us] Rated Supply Voltage 24 V DC
