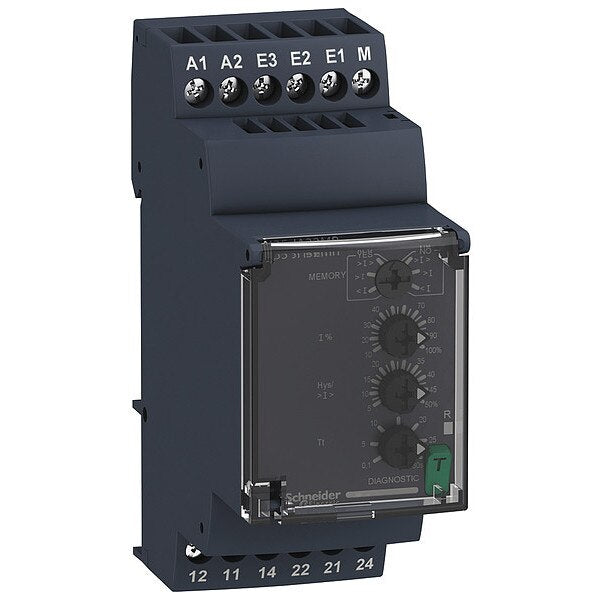

Monitor Relay, 5 A, 24-240VAC/DC, 12 Pin

SKU
Brand Schneider Electric
Categories
Description Monitor Relay, Contact Form DPDT, Contact Rating (AC) 8 A @ 250V, Contact Rating (DC) 0.01 A @ 5V, Current Rating 5 A, Input Voltage 24 to 240V AC/DC, Monitored Parameters Overcurrent, Undercurrent, Mounting Style Surface, Number of Pins 12, Trip Point Adjustable 0.15 to 15.00 A, Electrical Connection Terminal Strip, Body Depth 2.84 in, Body Height 3.54 in, Body Width 1.38 in

Web Price

$179.99 / each

Qty

Product Details

AC Contact Rating - Relay 8 A @ 250 V

Ambient Air Temperature For Operation -20-50ÃÂ°C 60 Hz || -20-60ÃÂ°C 50 Hz

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Depth 2.84 in

Body Depth - Relay 2.83 in

Body Height 3.54 in

Body Height - Relay 3.54 in

Body Width 1.38 in

Body Width - Relay 1.38 in

Connections - Terminals screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mmÃÂ² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mmÃÂ² AWG 24...AWG 14) flexible with cable end

Contact Form DPDT

Contact Form - Relay DPDT

Contact Rating (AC) 8 A @ 250V

Contact Rating (DC) 0.01 A @ 5V

Contacts Material cadmium free

Contacts Type And Composition 2 C/O

Control Circuit Voltage Limits 15 % + 10 % Un

Core Type - Relay Solid

Country of Origin (subject to change) Indonesia

Current Rating 5 A

DC Contact Rating - Relay 0.01 A @ 5V

Dielectric Test Voltage 2.5 kV AC 50 Hz, 1 min IEC 60255-27

Electrical Connection Terminal Strip

Electrical Durability 100000 cycles

Electromagnetic Compatibility immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22 || emission standard for residential, commercial and light-industrial environments except radiated emission) EN/IEC 61000-6-3

Environmental Characteristic 3K3 C

Housing Material self-extinguishing plastic

Hysteresis 5-50 % adjustable threshold setting || 3-3 % fixed full scale for window mode

Immunity To Microbreaks 50 ms

Input or Control Voltage 24 to 240 V AC/DC

Input Voltage 24 to 240V AC/DC

Insulation between supply and measurement

Insulation Resistance > 100 MOhm 500 V DC IEC 60255-27

Internal Input Resistance 0.015 Ohm || 0.005 Ohm || 0.05 Ohm

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP50 IEC 60529 front panel) || IP30 IEC 60529 housing)

IP Rating IP20; IP30; IP50

Item - Relay Current Sensing Relay

Local Signalling for relay ON LED (yellow) || for power ON LED (green)

Maximum Measuring Cycle 100 ms measurement cycle as true rms value

Maximum Operating Temperature 158 Degrees F

Maximum Power Consumption In Va 3.5 VA

Maximum Power Consumption In W 1.5 W DC

Maximum Switching Capacity 2,000 VA

Maximum Switching Current 8 A AC

Maximum Switching Voltage 250V AC

Measurement Error < 1 % over the whole range with voltage variation || 0.05 %/ÃÂ°C with temperature variation

Measurement Range 0.15...1.5 A E1-M terminals || 0.5...5 A E2-M terminals || 1.5...15 A E3-M terminals || 150 mA...15 A current AC/DC 50/60 Hz

Mechanical Durability 10000000 cycles

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 10 mA

Monitored Parameters Overcurrent, Undercurrent

Mounting - Relay Surface

Mounting Style Surface

Mounting Support 35 mm DIN rail conforming to EN/IEC 60715

Nominal Output Current 8A

Number of Pins 12

Output Contacts 2 C/O

Overall Depth 2.84 in

Overall Height - Relay 3.65 in

Overvoltage Category III IEC 60664-1 || III UL 508

Package Quantity 1

Pollution Degree 3 IEC 60664-1 || 3 UL 508

Power Consumption 1 W

Product Certifications CE || GL || CCC || EAC || RCM || UL || CSA

Product Or Component Type current control relay

Relative Humidity 93-97 % 25-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters overcurrent or undercurrent in window mode || overcurrent or undercurrent detection

Relay Name RM35JA

Relay Type current control relay

Repeat Accuracy +/- 0.5 % input and measurement circuit || +/- 2 % time delay

Reset Time 1500 ms at maximum voltage

Resistance Across Terminals 0.005 Ohm E3-M terminals || 0.015 Ohm E2-M terminals || 0.05 Ohm E1-M terminals

Response Time <= 500 ms (on crossing the threshold)

Run-Up Delay At Power-Up 0.3 s

Sensing Amp Range 0.15 to 15.00 A

Setting Accuracy Of The Switching Threshold +/- 10 % of the full scale

Setting Accuracy Of Time Delay 0.916666666666667

Shock Resistance 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27

Standards CCC, CE Certified, CSA Certified, EAC, EN/IEC 60255-1, GL, RCM, UL Listed

Supply Voltage Limits 20.4-264 V AC/DC

Switching Capacity In Va 2000 VA

Switching Threshold Drift <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range

Threshold Setting 10...100 %

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Drift <= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range

Time Delay Type adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt

Trip Delay 0.1 to 30 sec

Trip Point Adjustable 0.15 to 15.00 A

Type of Output Relay

Utilisation Category AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1

Vibration Resistance 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

Weight 0.26 lb

Width 35 mm

[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz +/- 10 %
