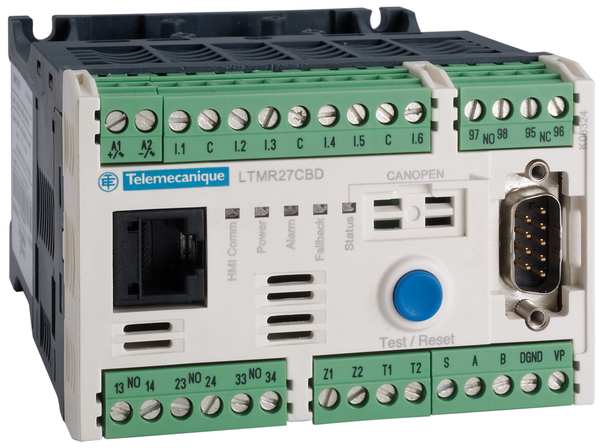

Motor Manager, CANopen, 100-240VAC, 5-100A

SKU
Brand Schneider Electric
Categories
Description Motor Management System, Number of Normally Open Contacts 4, Number of Normally Closed Contacts 1, Number of Contacts Included 5, Operating Voltage 690V AC, Control Voltage 100-240V AC, Interface CANopen, Compatible with Series TeSys T, Overall Width 3.58 in, Standards CSA C22.2 No 14, EN 60947-4-1, IACSE10, IEC 60947-4-1, LROS, nABS, nATEX, nBV, nC-tick, nCCC, nCSA, nDNV, nEAC, nGL, nKERI, nNOM, nRINA, nRMRoS, nUL, UL 508, Overall Height 2.4 in, Overall Depth 4.82 in
graingerSKU: 6VLY6, mscSKU: , zoro_no: G2279042, mongo_id: 65bbe7f59a749db822767d7a

Web Price

$1,028.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-80ÃÂ°C

Associated Fuse Rating 4 A gG output || 0.5 A gG control circuit

Bus Type CANopen ISO 1198 1 to 127 10 to 1000 kbit/s, SUB-D 9 4 twisted shielded pairs cable || CANopen ISO 1198 1 to 127 10 to 1000 kbit/s, terminal block 4 twisted shielded pairs cable

Communication Port Protocol CANopen

Compatibility Code LTMR

Compatible with Series TeSys T

Connection Pitch 5.08 mm

Connections - Terminals control circuit connector 1 0.25-2.5 mmÃÂ² AWG 24 to AWG 14)flexible with cable end || control circuit connector 1 0.2-2.5 mmÃÂ² AWG 24 to AWG 14)flexible without cable end || control circuit connector 1 0.25-2.5 mmÃÂ² AWG 24 to AWG 14)flexible without cable end || control circuit connector 1 0.2-2.5 mmÃÂ² AWG 24 to AWG 14)solid without cable end || control circuit connector 2 0.2-1 mmÃÂ² AWG 24 to AWG 14)flexible with cable end || control circuit connector 2 0.2-1.5 mmÃÂ² AWG 24 to AWG 14)flexible without cable end || control circuit connector 2 0.5-1.5 mmÃÂ² AWG 24 to AWG 14)flexible without cable end || control circuit connector 2 0.2-1 mmÃÂ² AWG 24 to AWG 14)solid without cable end

Contact Type and Composition 1 NO + 1 NC fault signal; 3 NO

Contacts Type And Composition 1 NO + 1 NC fault signal || 3 NO

Control Voltage 100-240V AC

Country of Origin (subject to change) China

Current Consumption 8 to 62.8 mA

Current Range 5 to 100A

Current State 0 Guaranteed logic input 0 to 40 V <= 15 mA 25 ms

Current State 1 Guaranteed logic input 79 to 264 V >= 2 mA 25 ms

Depth 4.82 in

Device Application equipment monitoring and control

Device Short Name LTMR

Electromagnetic Compatibility electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 || relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 || control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 || fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 || voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11 || conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 || temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5 || temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 || control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5

Fire Resistance 650ÃÂ°C EN/IEC 60695-2-12 || 960ÃÂ°C UL 94

For Use With Short Circuit Protection And A Contactor

Height 2.4 in

Input Current 3.1 mA 100 V || 7.5 mA 240 V

Interface CANopen

Ip Degree Of Protection IP20

Load Current 5 A 250 V AC logic output || 5 A 30 V DC logic output

Logic Input Number 6

Maximum Current Rating 100 A

Maximum Operating Frequency 2 Hz

Maximum Operating Rate 1800 cyc/h

Measurement Accuracy 5 to 15 % earth fault current internal measurement || 1 % voltage 100 to 830 V) || 3 % power factor || 5 % earth fault current external measurement || +/- 30 min/year internal clock || 0,02 Temperature || 5 % active and reactive power || 0,02 current

Measurement Current 5-100 A

Mechanical Robustness vibrations mounted on symmetrical rail1 Gn, 5 to 300 Hz EN/IEC 60068-2-6 || vibrations plate mounted4 Gn, 5 to 300 Hz EN/IEC 60068-2-6 || shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27

Metering Type earth-fault current || phase current I1, I2, I3 RMS || imbalance current || temperature || average current Iavg

Minimum Current Rating 5 A

Network And Machine Diagnosis Type event recording || trip history information || starting current and time || running hours counter/operating time || motor control command recording || remaining operating time before overload tripping || fault recording || phase fault and earth fault trip counters || waiting time after overload tripping || trip context information

Number of Contacts Included 5

Number of Normally Closed Contacts 1

Number of Normally Open Contacts 4

Operating Altitude <= 6561.68 ft (2000 m) without derating

Operating Voltage 690V AC

Overall Depth 4.82 in

Overall Height 2.4 in

Overall Width 3.58 in

Overvoltage Category III

Package Quantity 1

Permissible Power 480 VA AC-15), Ie = 2 A, 500000 cycles output) || 30 W DC-13), Ie = 1.25 A, 500000 cycles output)

Pollution Degree 3

Product Certifications LROS (Lloyds register of shipping) || DNV || UL || EAC || GL || CCC || BV || ABS || KERI || ATEX || NOM || RINA || RMRoS || C-tick || CSA

Product Name TeSys T

Product Or Component Type motor controller

Protection Type thermal protection || locked rotor || phase failure || earth-leakage protection || overload (long time) || power factor variation || phase unbalance || load fluctuation || thermal overload protection || reverse polarity protection || overload

Protective Treatment 12 x 24 hour cycles EN/IEC 60068-2-30 || 48 h EN/IEC 60070-2-11 || TH EN/IEC 60068

Range TeSys

Rated Impulse Withstand Voltage 4 kV supply, inputs and outputs EN/IEC 60947-4-1; 6 kV current or voltage measurement circuit EN/IEC 60947-4-1; 0.8 kV communication circuit EN/IEC 60947-4-1

Rated Insulation Voltage 690 V EN/IEC 60947-1; 690 V CSA C22.2 No 14; 690 V UL 508

Short-Circuit Withstand 100 kA conforming to EN/IEC 60947-4-1

Standards CSA C22.2 No 14, EN 60947-4-1, IACSE10, IEC 60947-4-1, LROS, nABS, nATEX, nBV, nC-tick, nCCC, nCSA, nDNV, nEAC, nGL, nKERI, nNOM, nRINA, nRMRoS, nUL, UL 508

Supply Voltage Limits 93.5-264 V AC

Tightening Torque control circuit 0.5-0.6 N.m flat 3 mm

Web Services web server

Width 3.58 in

[Uimp] Rated Impulse Withstand Voltage 4 kV supply, inputs and outputs EN/IEC 60947-4-1 || 6 kV current or voltage measurement circuit EN/IEC 60947-4-1 || 0.8 kV communication circuit EN/IEC 60947-4-1

[Ui] Rated Insulation Voltage 690 V EN/IEC 60947-1 || 690 V CSA C22.2 No 14 || 690 V UL 508

[Us] Rated Supply Voltage 100 to 240 V AC 50/60 Hz
