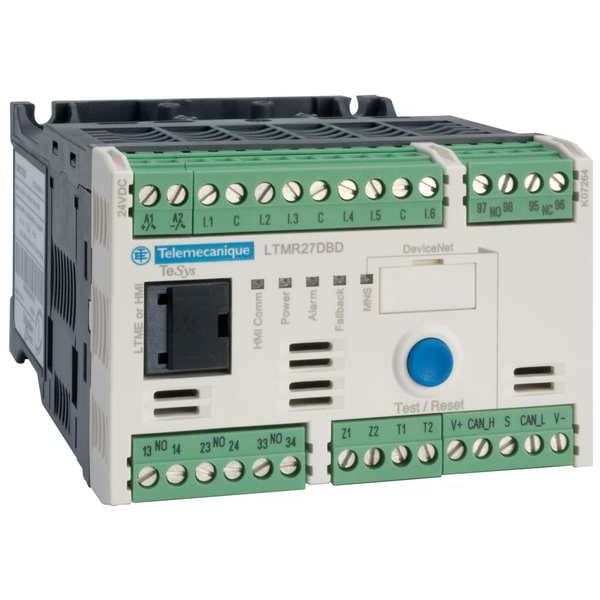

Motor Manager, DeviceNet, 24VDC, 0.40-8A

SKU
Brand Schneider Electric
Categories
Description Motor Management System, Number of Normally Open Contacts 4, Number of Normally Closed Contacts 1, Number of Contacts Included 5, Operating Voltage 690V AC, Control Voltage 24V DC, Interface DeviceNet, Compatible with Series TeSys T, Overall Width 3.58 in, Standards CSA C22.2 No 14, EN 60947-4-1, IACSE10, IEC 60947-4-1, LROS, nABS, nATEX, nBV, nC-tick, nCCC, nCSA, nDNV, nEAC, nGL, nKERI, nNOM, nRINA, nRMRoS, nUL, UL 508, Overall Height 2.4 in, Overall Depth 4.82 in, Maximum Current Rating 8 A
graingerSKU: 6VLY7, mscSKU: , zoro_no: G3036521, mongo_id: 65bbe89c22d7a989a9905247

Web Price

$907.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-80ÃÂ°C

Associated Fuse Rating 4 A gG output || 0.5 A gG control circuit

Bus Type DeviceNet ISO 1198 1 to 64 125 to 500 kbit/s, terminal block 4 twisted shielded pairs cable

Communication Port Protocol DeviceNet

Compatibility Code LTMR

Compatible with Series TeSys T

Connection Pitch 5.08 mm

Connections - Terminals control circuit connector 1 0.25-2.5 mmÃÂ² AWG 24 to AWG 14)flexible with cable end || control circuit connector 1 0.2-2.5 mmÃÂ² AWG 24 to AWG 14)flexible without cable end || control circuit connector 1 0.25-2.5 mmÃÂ² AWG 24 to AWG 14)flexible without cable end || control circuit connector 1 0.2-2.5 mmÃÂ² AWG 24 to AWG 14)solid without cable end || control circuit connector 2 0.2-1 mmÃÂ² AWG 24 to AWG 14)flexible with cable end || control circuit connector 2 0.2-1.5 mmÃÂ² AWG 24 to AWG 14)flexible without cable end || control circuit connector 2 0.5-1.5 mmÃÂ² AWG 24 to AWG 14)flexible without cable end || control circuit connector 2 0.2-1 mmÃÂ² AWG 24 to AWG 14)solid without cable end

Contacts Type And Composition 1 NO + 1 NC fault signal || 3 NO

Control Voltage 24V DC

Country of Origin (subject to change) China

Current Consumption 56 to 127 mA

Current Range 0.40 to 8A

Current State 0 Guaranteed logic input < 5 V <= 15 mA 5 ms

Current State 1 Guaranteed logic input < 15 V 2 to 15 mA 15 ms

Depth 4.82 in

Device Application equipment monitoring and control

Device Short Name LTMR

Electromagnetic Compatibility electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 || communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 || relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 || radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 || fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 || voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11 || conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 || temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5 || temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 || control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5

Fire Resistance 650ÃÂ°C EN/IEC 60695-2-12 || 960ÃÂ°C UL 94

For Use With Short Circuit Protection And A Contactor

Height 2.4 in

Input Current 7 mA

Interface DeviceNet

Ip Degree Of Protection IP20

Load Current 5 A 250 V AC logic output || 5 A 30 V DC logic output

Logic Input Number 6

Maximum Current Rating 8 A

Maximum Operating Frequency 2 Hz

Maximum Operating Rate 1800 cyc/h

Measurement Accuracy 5 to 15 % earth fault current internal measurement || 1 % voltage 100 to 830 V) || 3 % power factor || 5 % earth fault current external measurement || +/- 30 min/year internal clock || 0,02 Temperature || 1 % current || 5 % active and reactive power

Measurement Current 0.4-8 A

Mechanical Robustness vibrations mounted on symmetrical rail1 Gn, 5 to 300 Hz EN/IEC 60068-2-6 || vibrations plate mounted4 Gn, 5 to 300 Hz EN/IEC 60068-2-6 || shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27

Metering Type phase current I1, I2, I3 RMS || temperature || earth-fault current || average current Iavg || imbalance current

Minimum Current Rating 0.4 A

Network And Machine Diagnosis Type fault recording || waiting time after overload tripping || remaining operating time before overload tripping || phase fault and earth fault trip counters || starting current and time || trip history information || trip context information || motor control command recording || running hours counter/operating time || event recording

Number of Contacts Included 5

Number of Normally Closed Contacts 1

Number of Normally Open Contacts 4

Operating Altitude <= 6561.68 ft (2000 m) without derating

Operating Voltage 690V AC

Overall Depth 4.82 in

Overall Height 2.4 in

Overall Width 3.58 in

Overvoltage Category III

Package Quantity 1

Permissible Power 480 VA AC-15), Ie = 2 A, 500000 cycles output) || 30 W DC-13), Ie = 1.25 A, 500000 cycles output)

Pollution Degree 3

Product Certifications LROS (Lloyds register of shipping) || DNV || GL || UL || C-tick || BV || CSA || ATEX || RINA || KERI || CCC || ABS || EAC || RMRoS || NOM

Product Name TeSys T

Product Or Component Type motor controller

Protection Type thermal overload protection || overload || power factor variation || reverse polarity protection || earth-leakage protection || thermal protection || overload (long time) || phase failure || load fluctuation || phase unbalance || locked rotor

Protective Treatment 12 x 24 hour cycles EN/IEC 60068-2-30 || 48 h EN/IEC 60070-2-11 || TH EN/IEC 60068

Range TeSys

Short-Circuit Withstand 100 kA conforming to EN/IEC 60947-4-1

Standards CSA C22.2 No 14, EN 60947-4-1, IACSE10, IEC 60947-4-1, LROS, nABS, nATEX, nBV, nC-tick, nCCC, nCSA, nDNV, nEAC, nGL, nKERI, nNOM, nRINA, nRMRoS, nUL, UL 508

Supply Voltage Limits 20.4-26.24 V DC

Tightening Torque control circuit 0.5-0.6 N.m flat 3 mm

Web Services web server

Width 3.58 in

[Uimp] Rated Impulse Withstand Voltage 6 kV current or voltage measurement circuit EN/IEC 60947-4-1 || 0.8 kV communication circuit EN/IEC 60947-4-1 || 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1

[Ui] Rated Insulation Voltage 690 V EN/IEC 60947-1 || 690 V CSA C22.2 No 14 || 690 V UL 508

[Us] Rated Supply Voltage 24 V DC
