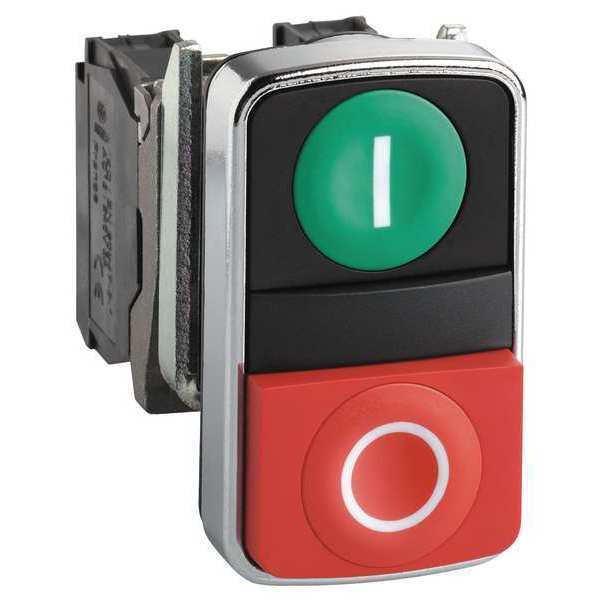

Multihead Operators with Contacts, 22 mm, 1NO/1NC, Rectangular

SKU
Brand Schneider Electric
Categories
Description Multihead Operators with Contacts, Number of Heads 2, Legend/Background Color White/Green, White/Red, Shape Rectangular, Type of Operator (1) Extended Button, (1) Flush Button, Legend I/O, Contact Form 1NO/1NC, Contact Rating 3A @ 240V AC/6A @ 120V AC, Size 22 mm, Action Momentary, NEMA Rating 13, 4X, IP Rating 66, 69K, Head Material Chrome, Standards CSA C22-2 n Degrees 14, EN/IEC 60947-, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, UL508
graingerSKU: 6UDN0, mscSKU: , zoro_no: G3518487, mongo_id: 65bbe9ba22d7a989a9972182

Web Price

$75.49 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material chromium plated metal

Colour Of Marking black marking when white caps || white marking when green, red or black caps

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO/1NC

Contact Operation slow-break

Contact Rating 3A @ 240V AC/6A @ 120V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 1 NC

Contacts Usage standard contacts

Country of Origin (subject to change) France

Device Presentation complete product

Device Short Name XB4

Electrical Durability 1000000 cycles AC-15, 2 A 230 V 3600 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Electrical Shock Protection Class class I IEC 60536

Fixing Collar Material zamak

Head Material Chrome

Head Type standard

Ik Degree Of Protection IK06 IEC 50102

Ip Degree Of Protection IP67 IEC 60529 || IP69 || IP69K

IP Rating 66, 69K

Legend I/O

Legend/Background Color White/Green, White/Red

Mechanical Durability 1000000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 13, 4X

Number of Heads 2

Operating Force 3.5 N NC changing electrical state || 3.8 N NO changing electrical state

Operating Travel 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operator Profile green flush, I white) || red projecting, O white), 1 flush - 1 projecting push-buttons

Operators Description green ''I'' - red ''O''

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications BV || GL || LROS (Lloyds register of shipping) || DNV || CSA || UL Listed

Product Or Component Type double-headed push-button

Protective Treatment TH

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Rectangular

Shape Of Screw Head cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head rectangular

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards CSA C22-2 n Degrees 14, EN/IEC 60947-, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, UL508

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator (1) Extended Button, (1) Flush Button

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
