Home / Multihead Operators with Contacts, 22 mm, 1NO/1NC, Rectangular

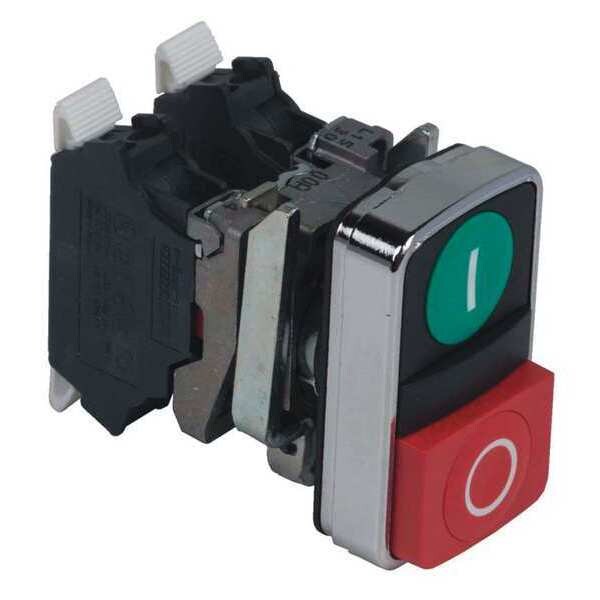

Multihead Operators with Contacts, 22 mm, 1NO/1NC, Rectangular

Multihead Operators with Contacts, 22 mm, 1NO/1NC, Rectangular

  • Schneider Electric
  • Multihead Operators with Contacts, Number of Heads 2, Legend/Background Color White/Green, White/Red, Shape Rectangular, Type of Operator (2) Flush Buttons, Legend I/O, Contact Form 1NO/1NC, Contact Rating 10A @ 600V AC, Size 22 mm, Action Momentary, NEMA Rating 13, 4X, IP Rating 66, 69K, Head Material Metal, Standards CSA, EN/IEC 60947-1, EN/IEC 60947-5-1, UL, Includes I/O Marking

    graingerSKU: 48K767, mscSKU: , zoro_no: G6652362, mongo_id: 65bbe6c23aaddbd5a904ee57

Web Price
$75.94 / each

Product Details

Momentary
-25-70°C
-40-70°C
chromium plated metal
white marking when green, red or black caps || black marking when white caps
spring clamp terminal, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || spring clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
1NO/1NC
slow-break
10A @ 600V AC
silver alloy (Ag/Ni)
1 NO + 1 NC
standard contacts
France
complete product
XB4
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
class I IEC 60536
zamak
Metal
standard
IK06 IEC 50102
I/O Marking
IP67 IEC 60529 || IP69 || IP69K
66, 69K
I/O
White/Green, White/Red
1000000 cycles
22 mm
NEMA 13 || NEMA 4X
13, 4X
2
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
1 flush - 1 projecting push-buttons, green flush, I white) || red projecting, O white)
green ''I'' - red ''O''
1
with EN/IEC 60947-5-1 appendix K
UL Listed || CSA || DNV || BV || GL || LROS (Lloyds register of shipping)
double-headed push-button
TH
7000000 Pa 55°C 0.1 m
Rectangular
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
rectangular
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
10 A cartridge fuse gG EN/IEC 60947-5-1
22 mm
CSA, EN/IEC 60947-1, EN/IEC 60947-5-1, UL
0.8-1.2 N.m EN 60947-1
(2) Flush Buttons
5 gn 2-500 Hz)IEC 60068-2-6
10 A 600 V, AC-15, A600 EN/IEC 60947-5-1
10 A EN/IEC 60947-5-1
6 kV EN 60947-1
600 V 3)EN 60947-1
