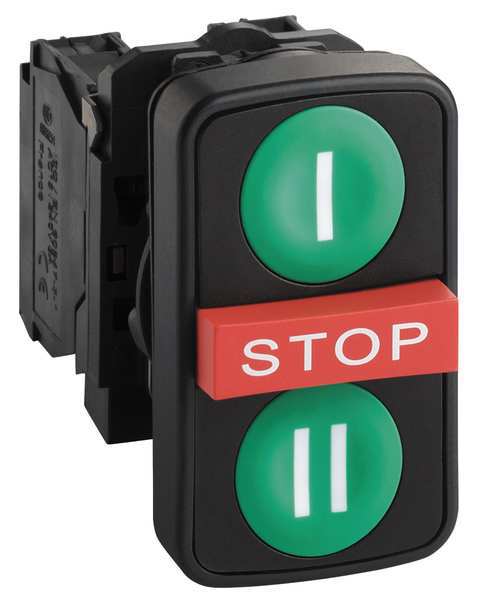

Multihead Operators with Contacts, 22 mm, 2NO/1NC, Rectangular

SKU
Brand Schneider Electric
Categories
Description Multihead Operators with Contacts, Number of Heads 3, Legend/Background Color White/Green, White/Red, Shape Rectangular, Type of Operator (1) Extended Button, (2) Flush Buttons, Legend I/Stop/II, Contact Form 2NO/1NC, Contact Rating 10A @ 600V AC, Size 22 mm, Action Momentary, NEMA Contact Rating Designation A600/Q600, NEMA Rating 1, 12, 3, 4, 4X, IP Rating 66, 69K, Head Material Plastic, Standards CE, CSA, RoHS, UL, Includes White I on Green Background and White II on Green Background
graingerSKU: 23V764, mscSKU: , zoro_no: G4565136, mongo_id: 65bbee31526e052139af5e70

Web Price

$128.74 / each

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material dark grey plastic

Colour Of Marking white marking when green, red or black caps || black marking when white caps

Connections - Terminals screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1 || spring terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || spring terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 2NO/1NC

Contact Operation slow-break

Contact Rating 10A @ 600V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 2 NO + 1 NC

Contacts Usage standard contacts

Country of Origin (subject to change) France

Device Presentation complete product

Device Short Name XB5

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Electrical Shock Protection Class class II IEC 61140

Fixing Collar Material plastic

Head Material Plastic

Head Type standard

Ik Degree Of Protection IK05 IEC 50102

Includes White I on Green Background and White II on Green Background

Ip Degree Of Protection IP67 IEC 60529 || IP69 IEC 60529 || IP69K

IP Rating 66, 69K

Legend I/Stop/II

Legend/Background Color White/Green, White/Red

Mechanical Durability 1000000 cycles

Mounting Diameter 22 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 1, 12, 3, 4, 4X

Number of Heads 3

Operating Force 3.5 N NC changing electrical state || 3.8 N NO changing electrical state

Operating Travel 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operator Profile red projecting, STOP white) || green flush, II white), 2 flush - 1 central projecting STOP push-buttons

Operators Description green ''I'' - green ''II'' - red ''STOP''

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications LROS (Lloyds register of shipping) || UL Listed || BV || DNV || GL || CSA

Product Or Component Type triple-headed push-button

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Rectangular

Shape Of Screw Head cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head rectangular

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards CE, CSA, RoHS, UL

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator (1) Extended Button, (2) Flush Buttons

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
