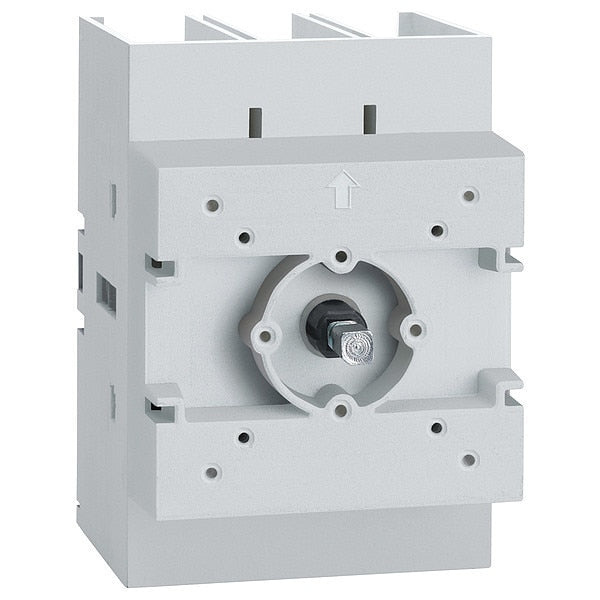

Non-Fusible Disconnect Switch, 47 A, 80 A, 100 A, 690V AC, 3 pole

SKU
Brand Schneider Electric
Categories
Description Disconnect Switch, Contact Form 3PST-NO, Current Rating 100 A, Depth 4 in, For Fuse Class Not Applicable, Height 2 3/4 in, Horsepower @ 600V AC 20 hp, Housing Material Plastic, IP Rating IP69, Mounting Style Door, Number of Poles 3, Number of Wires 3, Phase Three, Protection Method Non-Fusible, Resistance Properties Fire-Resistant
graingerSKU: 55WT63, mscSKU: , zoro_no: G3615045, mongo_id: 65bbe84022d7a989a98e5b52

Web Price

$253.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-55ÃÂ°C

Amps 47 A, 80 A, 100 A

Breaking Capacity 150 A 690 V AC-21A) || 300 A 690 V AC-22A) || 800 A 690 V AC-23A)

Color Gray

Connections - Terminals power circuit screw clamp terminals 50-50 mmÃÂ² solid || power circuit screw clamp terminals 70-70 mmÃÂ² flexible - without cable end

Contact Form 3NO

Contacts Type And Composition 3 NO

Country of Origin (subject to change) Italy

Current Rating 100 A

Depth 3.94 in

Device Short Name VLS3P

Duty Intermittent

Electrical Durability 30000 cycles AC-21

Fire Resistance 960ÃÂ°C IEC 60695-2-11

For Fuse Class Not Applicable

Height 2.95 in

Horsepower @ 600V AC 20 hp

Housing Material Plastic

HP_ 60.3 hp @ 500V AC, 60.3 hp @ 690V AC, 73.75 hp @ 400V AC

Includes Rotary Handle

Intermittent Duty Class class 120 - 60 %

Ip Degree Of Protection IP20 conforming to IEC 60529

IP Rating 20

Making Capacity 1000 A 690 V AC-23A || 150 A 690 V AC-21A || 300 A 690 V AC-22A

Mechanical Durability 30000 cycles

Mechanical Robustness vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27

Mounting Style Door

Mounting Support door

Network Frequency 50/60 Hz

Network Type AC

Number of Poles 3

Number of Wires 3

Package Quantity 1

Performance Level high performance

Phase Three

Poles Description 3P

Product Certifications cULus || GL

Product Name TeSys VARIO LS

Product Or Component Type switch body

Protection Method Non-Fusible

Range TeSys

Rated Conditional Short-Circuit Current 50 kA 400 V 100 A gG

Rated Operational Power In W 55 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A)

Resistance Properties Fire-Resistant

Standards CSA C22.2 No 4, IEC 60947-3, UL98

Tightening Torque power circuit 5-6 N.m screw clamp terminals

UL 98 Certification Yes

Use Body Switch Disconnector

Voltage 690V AC

Voltage Rating 690V AC

Width 2.76 in

[Icm] Rated Short-Circuit Making Capacity 3550 A 690 V

[Icw] Rated Short-Time Withstand Current 2500 A 690 V 1 s

[Ie] Rated Operational Current 100 A Ue: 600 V UL98 || 100 A AC-21A Ue: 400 V || 100 A AC-21A Ue: 500 V || 100 A AC-21A Ue: 690 V || 100 A AC-22A Ue: 400 V || 100 A AC-22A Ue: 500 V || 100 A AC-22A Ue: 690 V || 100 A AC-23A Ue: 400 V || 80 A AC-23A Ue: 500 V || 47 A AC-23A Ue: 690 V

[Ithe] Conventional Enclosed Thermal Current 100 A

[Ith] Conventional Free Air Thermal Current 100 A 55ÃÂ°C

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz, 600 V AC 50/60 Hz UL 508

[Uimp] Rated Impulse Withstand Voltage 8 kV
