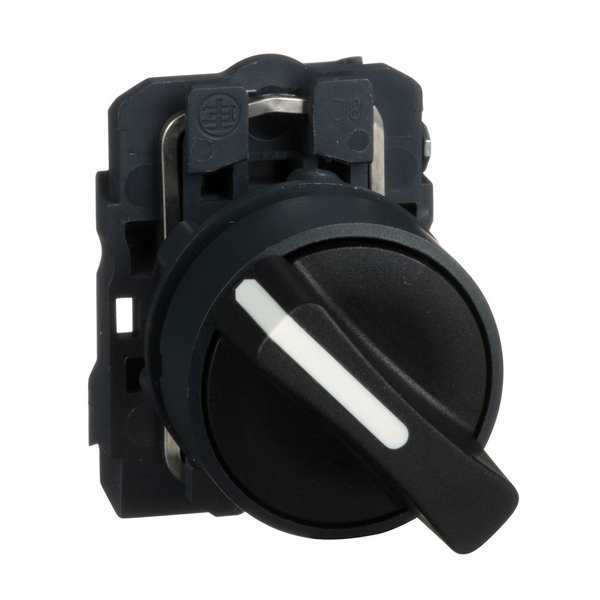

Non-Illum Selectr Swtch, 22mm, 2 Pos, Lever

SKU
Brand Schneider Electric
Categories
Description Non-Illuminated Selector Switch, 22 mm, 2 Position, Maintained / Maintained Action, 1NO Contact Form, Type of Operator Lever, Color Black, No Key Key Removal, Operator Head Material Polyamide, Basic Material Plastic, Bezel Material Plastic, Bezel Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation B600/Q600, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating 65, Cam No Cam, Switch Operation @ Position A O, Switch Operation @ Position B X
graingerSKU: 6HL42, mscSKU: 69534055, zoro_no: G2449955, mongo_id: 65bbe80e22d7a989a98d341f

Web Price

$50.56 / each

Qty

Product Details

Action Maintained / Maintained

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Color Black

Bezel Material Plastic

Cam No Cam

Color Black

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO

Contact Operation slow-break

Contact Rating 10A @ 600V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO

Contacts Usage standard contacts

Conventional Free Air Thermal Current 10 A IEC 60947-5-1

Country of Origin (subject to change) France

Depth 70 mm

Device Presentation complete product

Device Short Name XB5

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ» < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ» < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4

Electrical Shock Protection Class class II IEC 60536

Head Type standard

Height 42 mm

Ik Degree Of Protection IK06 IEC 50102

Ip Degree Of Protection IP67 IEC 60529 || IP69 || IP69K

IP Rating 65

Key Removal No Key

Mechanical Durability 1000000 cycles

Mounting Diameter 22 mm

NEMA Contact Rating Designation B600/Q600

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 1, 12, 13, 2, 3, 4, 4X

Operator Head Material Polyamide

Operator Position Information 2 positions 90ÃÂ°

Operator Profile black standard handle

Package Quantity 1

Position 2

Positive Opening without

Product Certifications UL || DNV || GL || BV || CSA || LROS (Lloyds register of shipping)

Product Or Component Type selector switch

Protective Treatment TH

Rated Impulse Withstand Voltage 6 kV IEC 60947-1

Rated Insulation Voltage 600 V 3)IEC 60947-1

Rated Operational Current 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards CE Marked, CSA Certified File Number LR44087 Class 321103, UL Listed File Number E164353 CCN NKCR

Switch Operation @ Position A O

Switch Operation @ Position B X

Switch Operation @ Position C No Third Position

Switch Operation @ Position D No Fourth Position

Terminals Description Iso NÃÂ°1 (13-14)NO

Tightening Torque 0.8-1.2 N.m EN 60947-1

Torque Value 0.14 N.m NO changing electrical state

Type of Operator Lever

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

Width 30 mm

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
