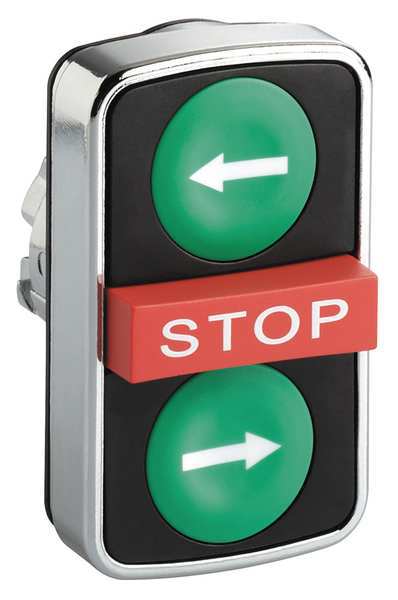

Non-Illuminated Multihead Operator, 22 mm, Rectangular

SKU
Brand Schneider Electric
Categories
Description Non-Illuminated Multihead Operator, Number of Heads 3, Legend/Background Color White/Green, White/Red, Shape Rectangular, Type of Operator (1) Extended Button, (2) Flush Buttons, Legend Left Arrow/Right Arrow/Stop, Size 22 mm, Action Momentary, NEMA Rating 13, 4X, IP Rating 66, 69K, Head Material Aluminum-Zinc Alloy, Standards CE, CSA, RoHS, UL, Includes White Arrow on Green Background
graingerSKU: 23V770, mscSKU: , zoro_no: G4627551, mongo_id: 65bbe83b9a749db82277ea3e

Web Price

$80.31 / each

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material chromium plated metal

Colour Of Marking black marking when white caps || white marking when green, red or black caps

Country of Origin (subject to change) France

Device Presentation basic element

Device Short Name ZB4

Electrical Composition Code C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting

Electrical Shock Protection Class class I IEC 60536

Head Material Aluminum-Zinc Alloy

Head Type standard

Ik Degree Of Protection IK06 IEC 50102

Includes White Arrow on Green Background

Ip Degree Of Protection IP69 IEC 60529

IP Rating 66, 69K

Legend Left Arrow/Right Arrow/Stop

Legend/Background Color White/Green, White/Red

Mechanical Durability 1000000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 13, 4X

Number of Heads 3

Operator Profile 2 flush - 1 central projecting STOP push-buttons, red projecting, STOP white) || green flush, left arrow white) || green flush, right arrow white)

Operators Description green ''right arrow'' - green ''left arrow'' - red ''STOP''

Package Quantity 1

Product Certifications GL || LROS (Lloyds register of shipping) || DNV || CSA || BV || UL Listed

Product Or Component Type head for triple-headed push-button

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Rectangular

Shape Of Signaling Unit Head rectangular

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Size 22 mm

Standards CE, CSA, RoHS, UL

Type of Operator (1) Extended Button, (2) Flush Buttons

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
