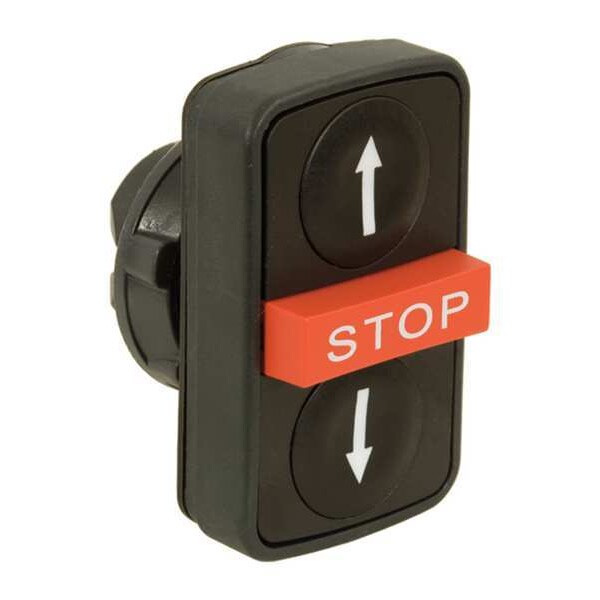

Non-Illuminated Multihead Operator, 22 mm, Rectangular

SKU
Brand Schneider Electric
Categories
Description Non-Illuminated Multihead Operator, Number of Heads 3, Legend/Background Color White/Green, White/Red, Shape Rectangular, Type of Operator (1) Extended Button, (2) Flush Buttons, Legend Up Arrow/Down Arrow/Stop, Size 22 mm, Action Momentary, NEMA Rating 13, 4X, IP Rating 66, 69K, Head Material Plastic, Standards CE, CSA, RoHS, UL
graingerSKU: 48K818, mscSKU: , zoro_no: G2362836, mongo_id: 65bbe6c23aaddbd5a904ee31

Web Price

$74.94 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material dark grey plastic

Cad Overall Depth 35 mm

Cad Overall Height 50 mm

Cad Overall Width 30 mm

Colour Of Marking black marking when white caps || white marking when green, red or black caps

Country of Origin (subject to change) France

Device Presentation basic element

Device Short Name XB5

Electrical Composition Code C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting

Electrical Shock Protection Class class II IEC 61140

Head Material Plastic

Head Type standard

Ik Degree Of Protection IK05 IEC 50102

Ip Degree Of Protection IP67 IEC 60529 || IP69 IEC 60529 || IP69K

IP Rating 66, 69K

Legend Up Arrow/Down Arrow/Stop

Legend/Background Color White/Green, White/Red

Mechanical Durability 1000000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 13, 4X

Number of Heads 3

Operator Profile red projecting, STOP white) || black flush, down arrow white) || black flush, up arrow white), 2 flush - 1 central projecting STOP push-buttons

Operators Description black ''up arrow'' - black ''down arrow'' - red ''STOP''

Package Quantity 1

Product Certifications UL Listed || GL || LROS (Lloyds register of shipping) || CSA || DNV || BV

Product Or Component Type head for triple-headed push-button

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Rectangular

Shape Of Signaling Unit Head rectangular

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Size 22 mm

Standards CE, CSA, RoHS, UL

Station Name XALD 1 cut-out

Type of Operator (1) Extended Button, (2) Flush Buttons
