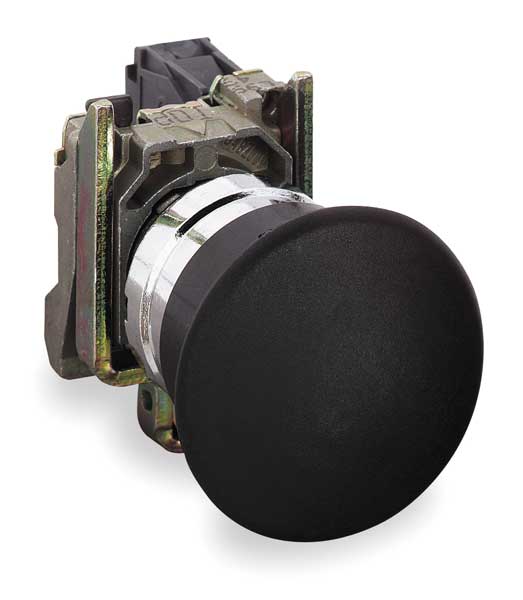

Non-Illuminated Push Button, 22mm, Metal

SKU
Brand Schneider Electric
Categories
Description Non-Illuminated Push Button, 22 mm, Momentary Push Action, 40mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Chrome Plated Zinc Die Cast, Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 13, 4X, IP Rating 65, Legend No Legend, Standards CE, CSA, UL, Terminal Connection Pressure Plate, Material Metal
graingerSKU: null, mscSKU: null, zoro_no: G2357117, mongo_id: 65bbe5d13aaddbd5a9fea706

Web Price

$69.44 / each

Qty

Product Details

Action Momentary Push

Ambient Air Temperature For Operation -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Ambient Air Temperature For Storage -40 to 158ÃÂ°F (-40 to 70ÃÂ°C)

Basic Material Metal

Bezel Chrome Plated Zinc Die Cast

Bezel Material Chromium plated metal

Color Black

Connections - Terminals Screw clamp terminals, Less than or Equal to 2 x 1.5 mmÃÂ² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mmÃÂ² without cable end IEC 60947-1

Contact Form 1NO

Contact Operation Slow-break

Contact Rating 10A @ 600V AC

Contact Type and Composition 1 NO

Contacts Material Silver alloy (Ag/Ni)

Contacts Usage Standard contacts

Conventional Free Air Thermal Current 10 A IEC 60947-5-1

Country of Origin (subject to change) Czechia

Device Presentation Complete product

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electrical Reliability Less than 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4; Less than 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Fixing Collar Material Zamak

Head Material Metal

Head Type Standard

IK Degree Of Protection IK06 IEC 50102

IP Degree Of Protection IP66 IEC 60529; IP69; IP69K

IP Rating 65

Legend No legend

Material metal

Mechanical Durability 5000000 cycles

Mounting Diameter 0.87 in (22 mm)

NEMA Contact Rating Designation A600/Q600

NEMA Degree Of Protection NEMA 13; NEMA 4X

NEMA Rating 13, 4X

Number of Operators 1

Operating Force 3.8 N NO changing electrical state

Operating Travel 0.10 in (2.6 mm) NO changing electrical state); 0.17 in (4.3 mm) total travel)

Operator Profile Black mushroom 40 mm, unmarked

Overvoltage Category Class I IEC 60536

Package Quantity 1

Positive Opening Without

Product Certifications DNV; CSA; UL Listed; GL; BV; LROS (Lloyds register of shipping)

Product Or Component Type Push-button

Protective Treatment TH

Rated Impulse Withstand Voltage 6 kV IEC 60947-1

Rated Insulation Voltage 600 V 3)IEC 60947-1

Rated Operational Current 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Resistance To High Pressure Washer 1015.26 psi (7000000 Pa) 131ÃÂ°F (55ÃÂ°C) 0.1 m

Shape Round

Shape Of Screw Head Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm

Shock Resistance 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG IEC 60947-5-1

Size 22 mm

Standards CE, CSA, UL

Terminal Connection Pressure Plate

Tightening Torque 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1

Type of Operator 40mm Mushroom Head

Vibration Resistance 5 gn 2 to 500 Hz)IEC 60068-2-6
