Home / Non-Illuminated Push Button, 30 mm, 1NC, Universal

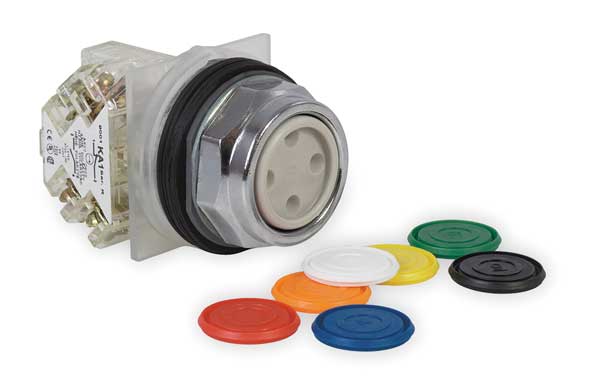

Non-Illuminated Push Button, 30 mm, 1NC, Universal

SKU
Brand Schneider Electric
Categories
Description Non-Illuminated Push Button, 30 mm, Momentary Push Action, Flush Button Type of Operator, Head Material Metal, Contact Form 1NC, Bezel Chrome Plated Die Cast Aluminum, Color Universal, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating 66, Legend No Legend, Standards CE, CSA, UL, Terminal Connection Pressure Plate, Features Finger-Safe Terminals
graingerSKU: 2XVT7, mscSKU: , zoro_no: G2586963, mongo_id: 65bbe7c23aaddbd5a90b33ae

Web Price

$83.19 / each

Qty

Product Details

Action Momentary Push

Basic Material Metal

Bezel Chrome Plated Die Cast Aluminum

Bezel Material metal

Cap/Operator Or Lens Colour 7 colours choice

Color Universal

Connections - Terminals screw clamp terminals

Contact Form 1NC

Contact Operation standard

Contact Rating 10A @ 600V AC

Contacts Type And Composition 1 NC

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name K

Features Finger-Safe Terminals

Head Material Metal

Includes Black, Red, Green, Yellow, Blue, Orange and White Push Button Insert

IP Rating 66

Legend No legend

Light Block Supply without supply

Light Source without

Material metal

Mounting Diameter 30 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 1/2/3/3R/4/6/12/13

NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6

Number of Operators 1

Operating Position any position

Operator Additional Information metal guard

Operator Profile flush, orange projecting || black projecting || red projecting || green projecting || yellow projecting || blue projecting || 7 colours choice flush

Package Quantity 1

Product Certifications CSA LR 25490 class 3211 03 || UL listed file E42259 CCN NKCR || CE || NEMA

Product Or Component Type push-button

Size 30 mm

Standards CE, CSA, UL

Terminal Connection Pressure Plate

Type of Operator Flush Button

[Ie] Rated Operational Current 10 A, AC-15 || 10 A, DC-13
