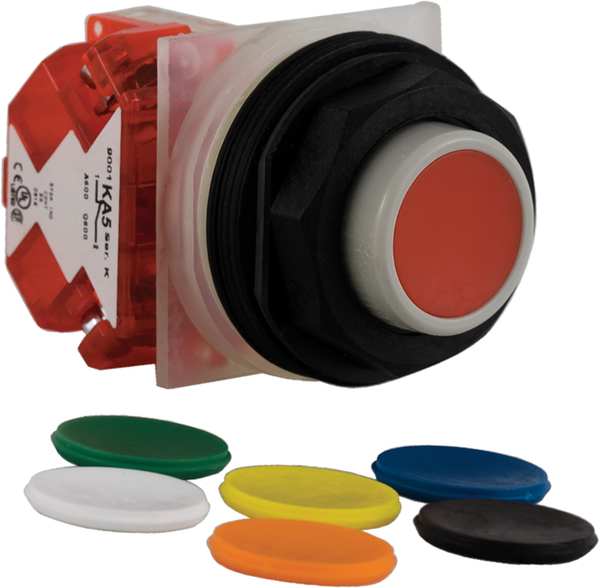

Non-Illuminated Push Button, 30 mm, 1NO, Universal

SKU
Brand Schneider Electric
Categories
Description Non-Illuminated Push Button, 30 mm, Momentary Push Action, Extended Button Type of Operator, Head Material Plastic, Contact Form 1NO, Bezel Corrosion Resistant Thermoplastic, Color Universal, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating 66, Legend No Legend, Standards CE, CSA, UL, Terminal Connection Pressure Plate, Features Finger-Safe Terminals
graingerSKU: 5FZT2, mscSKU: , zoro_no: G1636022, mongo_id: 65bbe74f3aaddbd5a9088323

Web Price

$84.11 / each

Qty

Product Details

Action Momentary Push

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Corrosion Resistant Thermoplastic

Bezel Material plastic

Cap/Operator Or Lens Colour 7 colours choice

Color Universal

Connections - Terminals screw clamp terminals 1 x 0.22 to 2 x 1.5 mmÃÂ² EN/IEC 60947-1

Contact Form 1NO

Contact Operation standard

Contact Rating 10A @ 600V AC

Contacts Material silver alloy contacts

Contacts Type And Composition 1 NO

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name 9001SK

Electrical Shock Protection Class class II IEC 61140

Features Finger-Safe Terminals

Head Material Plastic

Includes Black, Red, Green, Yellow, Blue, Orange and White Push Button Insert

Ip Degree Of Protection IP66 IEC 60529

IP Rating 66

Legend No legend

Material Plastic

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6

Number of Operators 1

Operating Position any position

Operator Additional Information without guard

Operator Profile projecting, 7 colours choice projecting, unmarked

Package Quantity 1

Positive Opening without

Product Certifications NEMA || UL 508

Product Or Component Type push-button

Protective Treatment TC

Rated Breaking Capacity 3 kA 120 V AC-15, 720 VA || 1.2 kA 480 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 240 V AC-15, 720 VA || 0.55 kA 125 V DC-13 || 0.27 kA 600 V DC-13 || 0.55 kA 250 V DC-13

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head octagonal

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse EN/IEC 60947-5-1

Size 30 mm

Standards CE, CSA, UL

Terminal Connection Pressure Plate

Tightening Torque 0.8-0.8 N.m EN/IEC 60947-1

Type of Operator Extended Button

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600-Q600 || 0.55 A 125 V, DC-13, A600-Q600

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1
