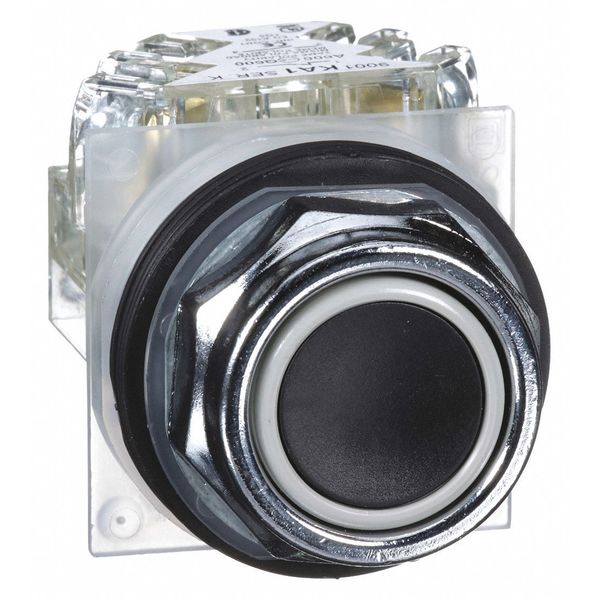

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Black

SKU
Brand Schneider Electric
Categories
Description Non-Illuminated Push Button, 30 mm, Momentary Push Action, Flush Button Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Die Cast Aluminum, Color Black, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating 66, Legend No Legend, Standards CSA, UL, Terminal Connection Pressure Plate, Material Metal
graingerSKU: 2EN13, mscSKU: , zoro_no: G8493633, mongo_id: 65bbea0522d7a989a998eb73

Web Price

$112.36 / each

Product Details

Action Momentary Push

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Chrome Plated Die Cast Aluminum

Bezel Material metal

Cad Overall Depth 56 mm

Cad Overall Height 45 mm

Cad Overall Width 48 mm

Cap/Operator Or Lens Colour black

Color Black

Connections - Terminals screw clamp terminals 1 x 0.22 to 2 x 1.5 mmÃÂ² IEC 60947-1

Contact Form 1NO/1NC

Contact Operation standard

Contact Rating 10A @ 600V AC

Contacts Material silver alloy contacts

Contacts Type And Composition 1 C/O

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name 9001K

Electrical Shock Protection Class class II IEC 61140

Head Material Metal

Ip Degree Of Protection IP66 IEC 60529

IP Rating 66

Legend No legend

Material metal

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4

NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6

Number of Operators 1

Operating Position any position

Operator Additional Information metal guard

Operator Profile black flush, unmarked, flush

Package Quantity 1

Positive Opening without

Product Certifications UL 508 || NEMA

Product Or Component Type push-button

Protective Treatment TC

Rated Breaking Capacity 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head octagonal

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse IEC 60947-5-1

Size 30 mm

Standards CSA, UL

Terminal Connection Pressure Plate

Terminals Description Iso NÃÂ°1 (13-14-11-12)OF

Tightening Torque 0.8-0.8 N.m IEC 60947-1

Type of Operator Flush Button

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1
