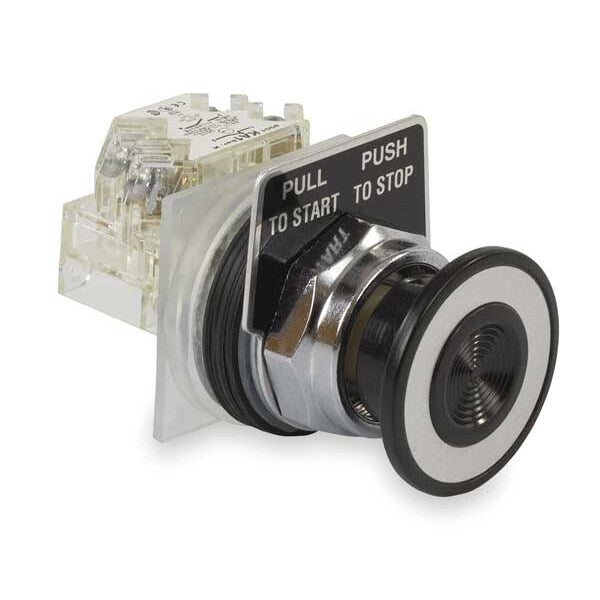

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Black

SKU
Brand Schneider Electric
Categories
Description Non-Illuminated Push Button, 30 mm, Maintained Push / Maintained Pull Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating 66, Legend No Legend, Standards CE, CSA, UL, Terminal Connection Pressure Plate, Material Metal
graingerSKU: 2XVU7, mscSKU: , zoro_no: G0397993, mongo_id: 65bbe6a03aaddbd5a90408e5

Web Price

$226.24 / each

Qty

Product Details

Action Maintained Push / Maintained Pull

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Chrome Plated Zinc Die Cast

Bezel Material metal

Cad Overall Depth 74 mm

Cad Overall Height 103 mm

Cad Overall Width 54 mm

Cap/Operator Or Lens Colour black

Color Black

Connections - Terminals screw clamp terminals, 1 x 0.22 to 2 x 1.5 mmÃÂ² EN/IEC 60947-1

Contact Form 1NO/1NC

Contact Operation standard

Contact Rating 10A @ 600V AC

Contacts Material silver alloy contacts

Contacts Type And Composition 1 C/O

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name 9001K

Head Material Plastic

Ip Degree Of Protection IP66 IEC 60529

IP Rating 66

Legend No legend

Material metal

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6

NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6

Number of Operators 1

Operating Position any position

Operator Additional Information metal guard

Operator Position Information 2 positions

Operator Profile mushroom ÃÂ 41 mm, black mushroom ÃÂ 41 mm, unmarked

Overvoltage Category class II IEC 61140

Package Quantity 1

Positive Opening without

Product Certifications NEMA || UL 508

Product Or Component Type push-button

Protective Treatment TC

Rated Breaking Capacity 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head round

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse EN/IEC 60947-5-1

Size 30 mm

Standards CE, CSA, UL

Terminal Connection Pressure Plate

Tightening Torque 0.8-0.8 N.m EN/IEC 60947-1

Type of Operator 40mm Mushroom Head

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1
