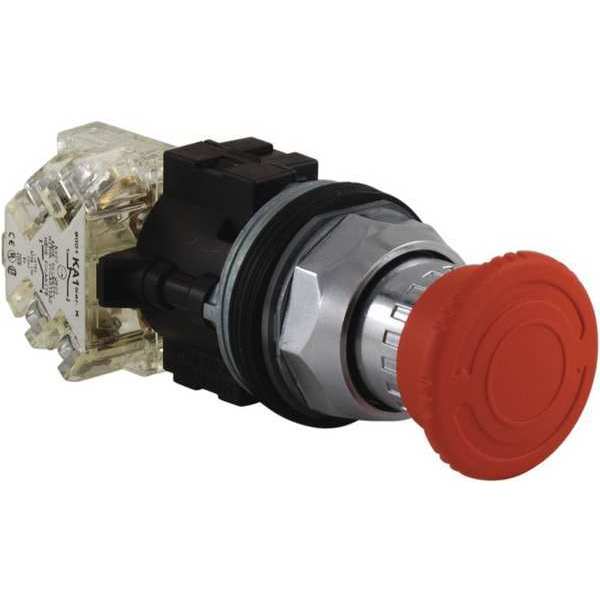

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Red

SKU
Brand Schneider Electric
Categories
Description Non-Illuminated Push Button, 30 mm, Maintained Push / Turn To Release Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Corrosion Resistant Thermoplastic, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating 66, Legend No Legend, Standards CE, CSA, UL, Terminal Connection Pressure Plate
graingerSKU: 45C634, mscSKU: , zoro_no: G6650366, mongo_id: 65bbe80e22d7a989a98d42e9

Web Price

$182.49 / each

Product Details

Action Maintained Push / Turn To Release

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Corrosion Resistant Thermoplastic

Bezel Material plastic

Cad Overall Depth 116 mm

Cad Overall Height 40 mm

Cad Overall Width 40 mm

Cap/Operator Or Lens Colour red

Color Red

Compatibility Code 9001SK

Connections - Terminals screw clamp terminals, 1 x 0.22 to 2 x 1.5 mmÃÂ² EN/IEC 60947-1

Contact Form 1NO/1NC

Contact Rating 10A @ 600V AC

Contacts Material silver alloy contacts

Contacts Type And Composition 1 NC + 1 NO, 1 C/O

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name 9001SK

Features Integrated Earth Ground Connection, Interchangeable Light Modules

Head Material Plastic

Ip Degree Of Protection IP66 IEC 60529

IP Rating 66

Legend No legend

Material Plastic

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6

Number of Operators 1

Operating Position any position

Operator Position Information 2 positions

Operator Profile red mushroom ÃÂ 40 mm, unmarked, mushroom ÃÂ 40 mm

Overvoltage Category class II IEC 61140

Package Quantity 1

Product Certifications UL 508 || NEMA

Product Or Component Type emergency stop push-button

Protective Treatment TC

Rated Breaking Capacity 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head round

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse EN/IEC 60947-5-1

Size 30 mm

Standards CE, CSA, UL

Terminal Connection Pressure Plate

Tightening Torque 0.8-0.8 N.m EN/IEC 60947-1

Type of Operator 40mm Mushroom Head

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
