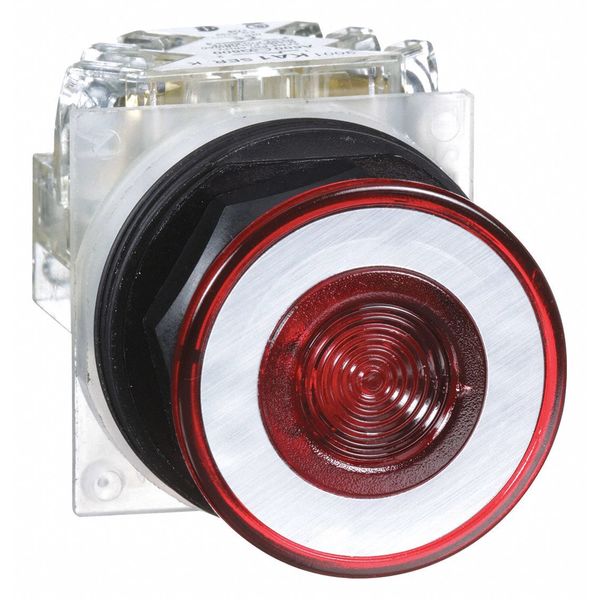

Non-Illuminated Push Button, 30 mm, 1NO/1NC, Red

SKU
Brand Schneider Electric
Categories
Description Non-Illuminated Push Button, 30 mm, Maintained Push / Maintained Pull Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Corrosion Resistant Thermoplastic, Color Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating 66, Legend No Legend, Standards CE, CSA, UL, Terminal Connection Pressure Plate, Features Finger-Safe Terminals, Material Plastic
graingerSKU: 2NML9, mscSKU: 69534469, zoro_no: G2142673, mongo_id: 65bbe92322d7a989a9938765

Web Price

$224.99 / each

Qty

Product Details

Action Maintained Push / Maintained Pull

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Corrosion Resistant Thermoplastic

Bezel Material plastic

Cad Overall Depth 69 mm

Cad Overall Height 45 mm

Cad Overall Width 46 mm

Cap/Operator Or Lens Colour red

Color Red

Compatibility Code 9001SK

Connections - Terminals screw clamp terminals, 1 x 0.22 to 2 x 1.5 mmÃÂ² EN/IEC 60947-1

Contact Form 1NO/1NC

Contact Rating 10A @ 600V AC

Contacts Material silver alloy contacts

Contacts Type And Composition 1 C/O

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name 9001SK

Features Finger-Safe Terminals

Head Material Plastic

Ip Degree Of Protection IP66 IEC 60529

IP Rating 66

Legend No legend

Material Plastic

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X

NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6

Number of Operators 1

Operating Position any position

Operator Additional Information screw-on plastic

Operator Position Information 2 positions

Operator Profile red mushroom ÃÂ 41 mm, unmarked, mushroom ÃÂ 41 mm

Overvoltage Category class II IEC 61140

Package Quantity 1

Positive Opening without

Product Certifications NEMA || UL 508

Product Or Component Type push-button

Protective Treatment TC

Rated Breaking Capacity 3 kA 120 V AC-15, 720 VA || 6 kA 600 V AC-15, 720 VA || 1.2 kA 480 V AC-15, 720 VA || 1.5 kA 240 V AC-15, 720 VA || 0.1 kA 125 V DC-13 || 0.27 kA 600 V DC-13 || 0.55 kA 250 V DC-13

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head round

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse EN/IEC 60947-5-1

Size 30 mm

Standards CE, CSA, UL

Terminal Connection Pressure Plate

Tightening Torque 0.8-0.8 N.m EN/IEC 60947-1

Type of Operator 40mm Mushroom Head

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1
