Home / Non-Illuminated Push Button, 30 mm, 2NO/2NC, Red

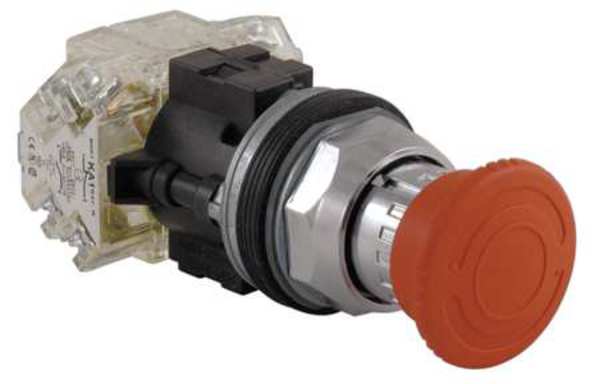

Non-Illuminated Push Button, 30 mm, 2NO/2NC, Red

SKU
Brand Schneider Electric
Categories
Description Non-Illuminated Push Button, 30 mm, Maintained Push / Turn To Release Action, 40mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 2NO/2NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating 66, Legend No Legend, Standards CSA, UL, Terminal Connection Pressure Plate, Material Metal
graingerSKU: 23Z313, mscSKU: 49760937, zoro_no: G4580511, mongo_id: 65bbe5af3aaddbd5a9fdc0ff

Web Price

$254.99 / each

Product Details

Action Maintained Push / Turn To Release

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Chrome Plated Zinc Die Cast

Bezel Material metal

Cad Overall Depth 116 mm

Cad Overall Height 40 mm

Cad Overall Width 40 mm

Cap/Operator Or Lens Colour red

Color Red

Connections - Terminals screw clamp terminals, 1 x 0.22 to 2 x 1.5 mmÃÂ² EN/IEC 60947-1

Contact Form 2NO/2NC

Contact Rating 10A @ 600V AC

Contacts Material silver alloy contacts

Contacts Type And Composition 2 C/O

Country of Origin (subject to change) Mexico

Device Presentation complete product

Device Short Name 9001K

Head Material Plastic

Ip Degree Of Protection IP66 IEC 60529

IP Rating 66

Legend No legend

Material metal

Mechanical Durability 5000000 cycles

Mounting Diameter 30 mm

Nema Degree Of Protection NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6

NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6

Number of Operators 1

Operating Position any position

Operator Position Information 2 positions

Operator Profile mushroom ÃÂ 40 mm, red mushroom ÃÂ 40 mm, unmarked

Overvoltage Category class II IEC 61140

Package Quantity 1

Product Certifications NEMA || UL 508

Product Or Component Type emergency stop push-button

Protective Treatment TC

Rated Breaking Capacity 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Shape Of Screw Head cross slotted

Shape Of Signaling Unit Head round

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse EN/IEC 60947-5-1

Size 30 mm

Standards CSA, UL

Terminal Connection Pressure Plate

Tightening Torque 0.8-0.8 N.m EN/IEC 60947-1

Type of Operator 40mm Mushroom Head

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
